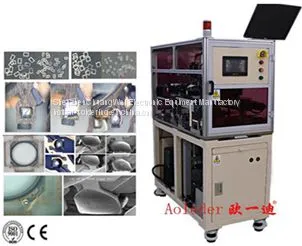

Laser Soldering Machine for Soldering Tin Wire,CWLS-W Product Description：
The product will automatically enter the welding station in tray mode - through CCD identification positioning - automatic, accurate and quantitative cutting and extracting tin wire to welding position - automatic laser welding - automatic flow into next station.
Main advantage of laser soldering technique is flexibility under precise control.
Sample for Laser Soldering Machine for Soldering Tin Wire
Micro Laser Soldering System,CWLS-W Product Features：
1.The production rhythm 3S (double track) and 5S (Dan Gui) optional, yield above 98%;
2.The soldering efficiency is high, and the solder joint is especially suitable for mass production of multi solder joints and can be processed continuously without interruption;
3.The degree of automation is high, the plate is in and out, and the upper and lower working stations are seamlessly connected with each other to realize highly automatic production;
4.Completely closed structure, processing pollution-free, safe operation and use.
Laser Soldering Machine for Soldering Tin Wire Technical advantages：
1.The tin line is quantitatively and integrally formed without Tin splash and residual;
2.The welding effect is good, the welding spot is full and the consistency is good;
3.CCD imaging real-time observation processing;
4.The equipment has strong expansion function and is suitable for processing many 5.kinds of complicated processing parts;
6.The processing program can be edited and easy to operate.
Laser Soldering Machine for Soldering Tin Wire Product Parameter：
Feeding Mode |
On board or out of orbit |
Laser parameters |
Power: 10-20W optional |
Wave Length: 1070± 5nm |
|
Mode: Continuous |
|
Tin Wire Specification |
Ø0.3-0.4mm |
Control Mode |
PLC Motion+PC Image Processing |
Mechanical Repeat ability Accuracy |
±0.003mm |
Visual Positioning System |
CCD:5Million Pixels |
Resolution |
±5um |
Outline Size |
1250*950*1650mm |
Disk Size |
110*130mm |
Host Weight |
550KG |
Power Waste |
3KW |
Power Supply |
Single Phase 220V 15A |
Compressed Gas |
0.6MPa |
Application Field
Suitable for VCM motor coil welding, flexible circuit board FPC or rigid circuit board PCB welding, high precision liquid crystal screen, LCD welding and other fields.
