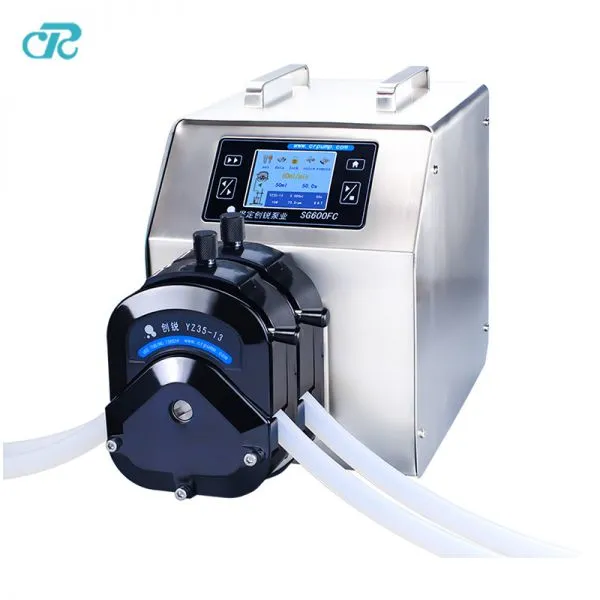

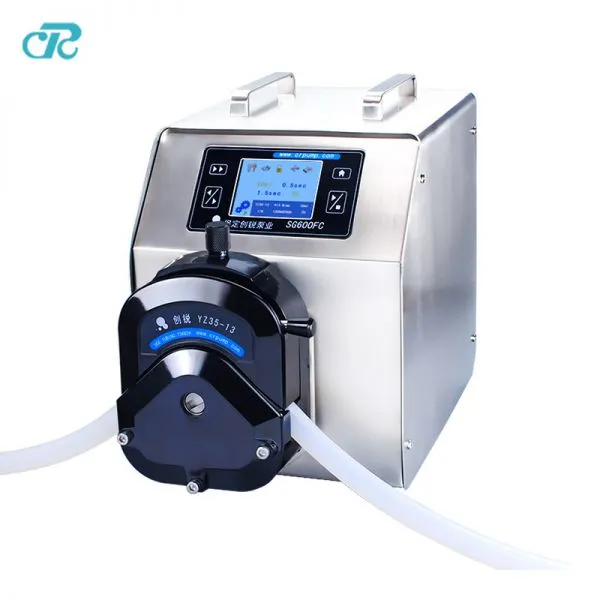

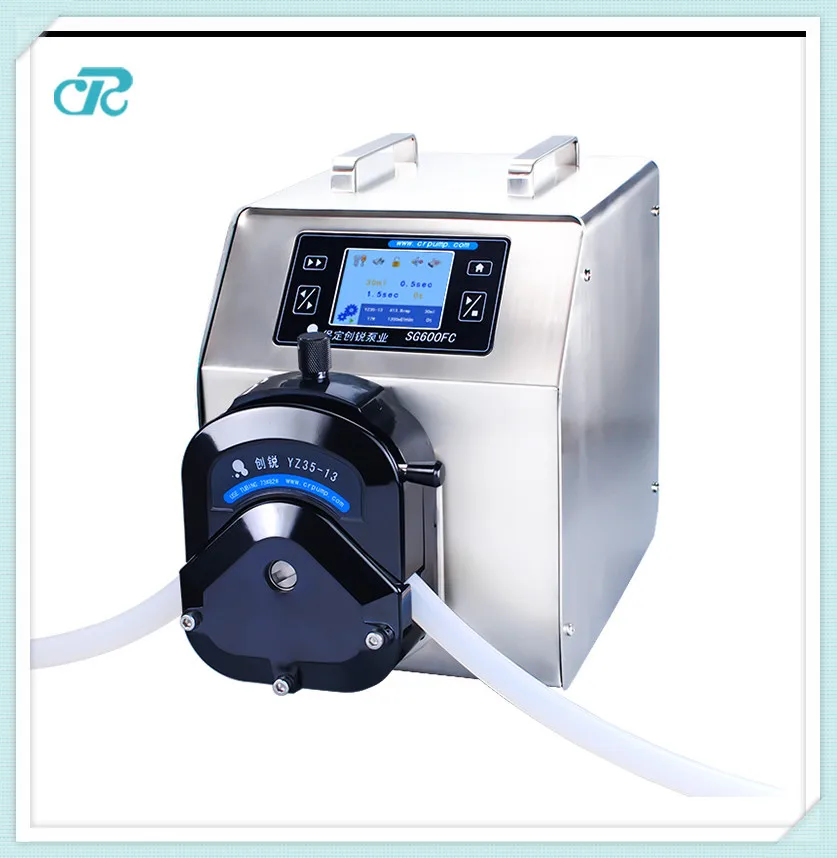

Help CenterIntelligent Industrial Dispensing Peristaltic Pump
Related Products
-
Dual Head Variable Speed Digital Display Peristaltic PumpUS$ 500 - 700MOQ: 1 Set -
Multiple Working Modes Intelligent Transfer Peristaltic PumpUS$ 1100 - 1500MOQ: 1 Set
-
Intelligent Liquid Transfer Peristaltic Pump For Water TreatmentUS$ 400 - 1100MOQ: 1 Set
-
Chuangrui Peristaltic Titration Pump With Good QualityUS$ 50 - 70MOQ: 1 Set
-
Micro Peristaltic PumpUS$ 50 - 70MOQ: 1 Set
2. With both-way large torque,high power motor. It can be connected with several pump heads to satisfy the different demands of flow rates.
3. Long life, Touch screen control, easy to operate,
4. Color LCD display in English and Chinese version
5. Has RS485 communication interface, supports MODBUS communication protocol. And communication protocols customized is available.
| Model | SG600FC/YZ35-13 | Display Mode | LCD screen |
| Speed Range | 0.1-600 rpm | Control Method | Touch screen + keypad |
| speed resolution | 0.1 rpm | Environment Temperature | 0-40℃ |
| Max Flow | 12000ml/min | Relatively Humidity | |
| Filling Accuracy | Power consumption | ||
| Filling volume range | 0.01-9999ml | Power supply | AC220V or AC110V |
| Filling time range | 0.1s-9999min | Motor Type | Stepper motor |
| Pause Time range | 0.1s~9999min | External control | |
| copy number range | 0~9999t | Start & stop, direction control, speed control( Analog control :0-5v, 0-10v, 4-20mA optionl )RS232 and RS485 Communication interface, support MODUBUS Communication Protocol | |
| Suckback angle | 10°~720° (1° Stepping) | ||

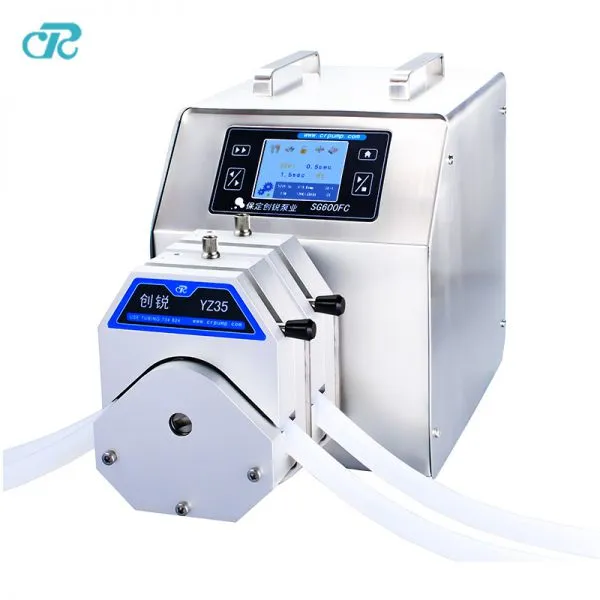

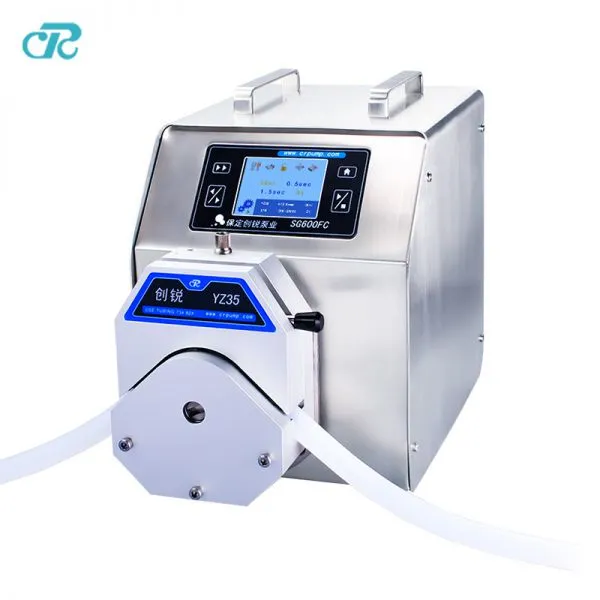

Peristsaltic pump head YZ35 is made of Aluminum alloy ,with good appearance and easy to clean
Its strong capabilities of baring high temperature and erosion especially the excellent performance in the aspects of strong chemical resistance such as resisting organic solvent effectively reducing the damage rate of the pump heads and the customers' cost in maintaining and reparing.
| Tube | ID(mm) | Wall thickness (mm) |
OD (mm) |
Speed (rpm) |
Flow rate (ml/min) |
| 73# | 9.6 | 3.3 | 16.2 | 0.1-600 | 1.3-7400 |
| 82# | 13 | 3.3 | 19.6 | 0.1-600 | 2-12000 |
Dear All ,
Welcome to our website ,we are peristaltic pump manufacturer .wish you have a nice day and will get the harvest from us .=))
To help you choose the suitable peristaltic pump. could you help me to confirm some details as below :
1,what's the application of the peristaltic pump ? bottle filling pump or constant transfer pump?
2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?
3, for constant transfer ,what's flowrate you need? ml/min
4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?
Pls send these answers or most details to us, then we will help u to choose the best peristaltic pump and silicon tube .
Thanks for your time .
Ella Xu
whatsapp :+0086 15633705132
skype : ella-crpump QQ :507183200
Baoding chuangrui precision pump Co., Ltd Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump ..
With 10 years professional experience of peristaltic pump/peristaltic hose pump/lab peristaltic pump/industrial peristaltic pump/peritaltic dosing pumpemical dosing pump/peristaltic filling pump/dispensing peristaltic pump/OEM peristlatic pump/ liquid transfer pump etc. . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, filling pump & system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field. Our professional team can insure fluent communication, as well as perfect after-sale service Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
We have professional support teams to assist with any questions you may have.
Some frequently asked questions can be found below.However please don't hesitate to contact us with ant specific questions.
Question 1: Can I order custom peristaltic pump with my own design & logo?
Answer: Definitely yes.
Question 2: Can I order a sample first before mass production? How can I place a sample order?
Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.
Question 3: How soon can I get a sample made? How can I make payment?
Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.
Question 4: How can I get my peristaltic pump if I place the order to you?
Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.
Question 5: Can I buy the tube separately?
Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
Pls contact Ella Xu.0086-15633705132 or leave message to us.We will reply u asap we get it.
And other question, pls feel free to contact me.
