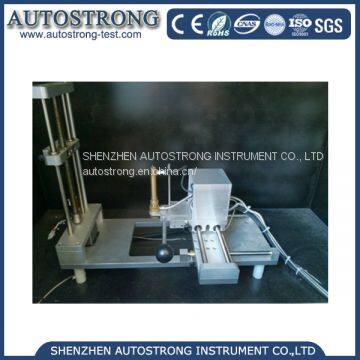

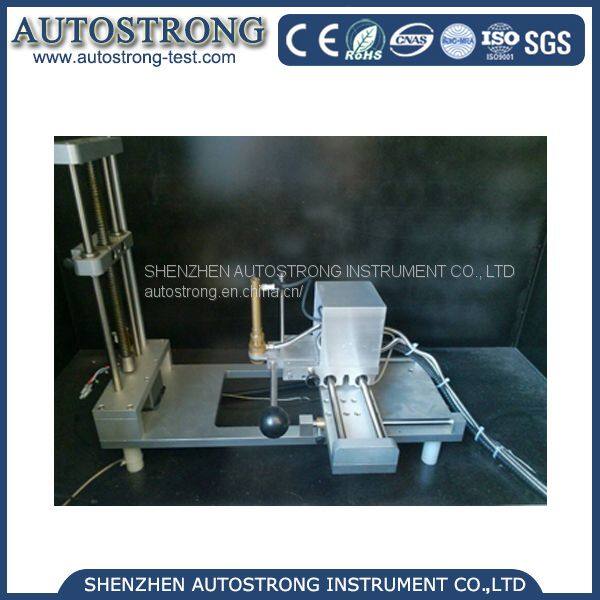

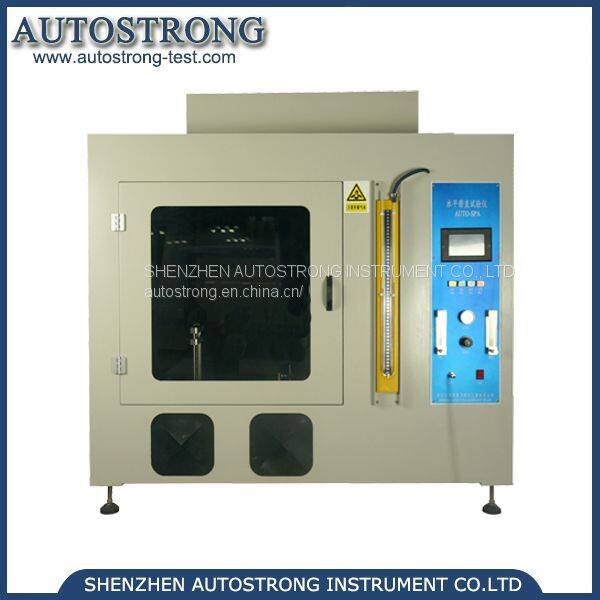

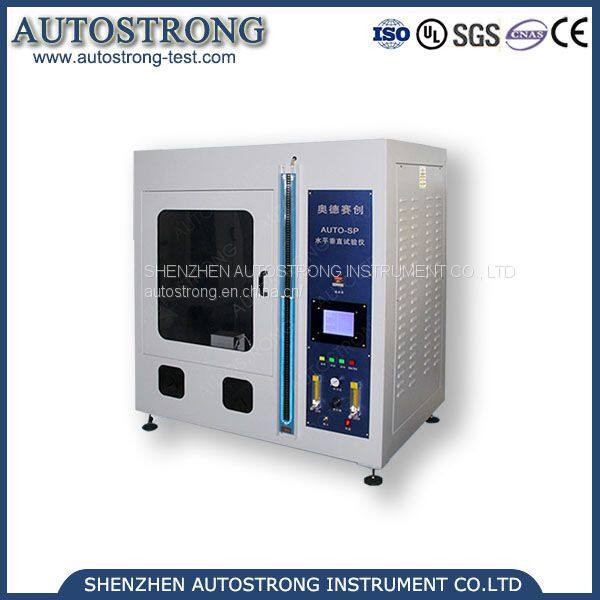

Help CenterTest Equipment Flammability Tester Horizontal Vertical Flammability Tester IEC Burning Tester
Related Products
-
IEC60695-2-20-2004 Standard Electrical Testing Equipment Hot Wire Ignition TesterUS$ 3200 - 3600MOQ: 1 Piece -
Glow Wire Tester IEC60695-2-1 IEC60695-2-13 UL 746A Electrical Testing EquipmentUS$ 3200 - 3600MOQ: 1 Piece
-
Flammability Tester IEC60695-11-5 UL746A Needle Flame Test EquipmentUS$ 3000 - 3500MOQ: 1 Piece
-
IEC60112 Standard Test Equipment Flammability Tester Tracking Index Test ApparatusUS$ 3000 - 4100MOQ: 1 Piece
-
IP Protection Against Access IEC61032 IEC60529 Standard Test Probe B With 10N ForceUS$ 50 - 850MOQ: 1 Piece
Overview:
When there is a fire around the products, should ensure that it will not to cause the spread of the
Fire, horizontal-vertical burning test simulates electronic products around the environment in the
Early condition, using the simulation technology to assess the fire risk. The test equipment apply
To the electrical and electronic product components of household appliances, spare parts and
Components, such as: Household appliances insulation shell, Panel switches, printed circuit boards
And insulation materials and so on.
| Kinds | 500W(5V class ) | 50W(HB/V class) |
| Test Flame | 500W(burning test for 5VA / B classification) | 50W(burning test for V-0,V-1,V-2 classification) |
| Burner Tube | Internal diameter: Φ 9.5mm±0.3mm | Internal diameter: Φ 9.5mm±0.3mm, |
| Burning Angle | 0°,20°,45° | 0°,20°,45° |
| Thermocouple | Type K (Ni/Cr - Ni/Al) | Type K (Ni/Cr - Ni/Al) |
| Thermocouple Size | 0.5 mm | 0.5 mm |
| Standard Copper Block | Φ9mm±0.01mm,weight:10g±0.05g before drilling. | Φ5.5mm±0.01mm, weight.:.76g±0.01g before drilling. |
| Time for Temperature to Increase |
From 100°C±5°C to 700°C±3°C; 54s±2s (preset) | From 100°C±5°C to 700°C±3°C;44s±2s (preset) |
| Gas Flow | 965±32ml/min | 105±10ml/min |
| Gas Supply | methane,min.98% purity | methane,min.98% purity |
| water-column | 125m±5mm | ?10mm |
| Test Time | 54±2s | 44±2s |
| Flame Height Indicator | 40±1mm | 20±1mm |
| Volume Of Chamber | >0.5m³, black interior | >0.5m³, black interior |
| Conform to standard | UL94,IEC60695-11-3,IEC60695-11-20 | |
| Service | AC220V±10%/50Hz.(Other power specifications can be customized | |
| Display panel language | All English | |
Main products include: Glow wire tester, Needle flame tester, horizontal and vertical burning tester, tracking tester, textile burning tester, protective clothing thermal conductivity tester, automotive interior combustion tester, melt dripping tester, building materials flammability tester, friction tester, test finger, spring hammer, universal testing machine and other testing instruments.
AUTOSTRONG strategic cooperation with Germany WAZAU, Germany PTL company, Germany FISCHER, Japanese minebea, and on going technical exchange.
Thank you for your visiting, please feel free to contact us for more details.
