Home > Electrical & Electronics > Sensor > Pressure Sensor > IS200CD/IS222CD Series Epoxy Body Combination ISE Electrodes

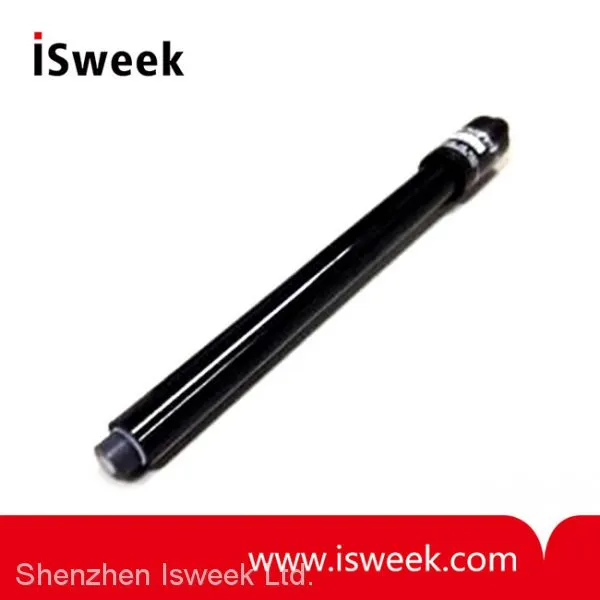

IS200CD/IS222CD Series Epoxy Body Combination ISE Electrodes

Name: IS200CD/IS222CD Series Epoxy Body Combination ISE Electrodes
Brand: Sensorex
SKU: 158071486

IS200CD/IS222CD Series Epoxy Body Combination ISE Electrodes thumbnail-1

IS200CD/IS222CD Series Epoxy Body Combination ISE Electrodes thumbnail-2

IS200CD/IS222CD Series Epoxy Body Combination ISE Electrodes photo-1

IS200CD/IS222CD Series Epoxy Body Combination ISE Electrodes photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Sensorex

Place of Origin:

United States

Model Number:

IS200CD/IS222CD Series

Contact Supplier Request Quote Chat Now

Shenzhen Isweek Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Sensorex

Place of Origin United States

Model Number IS200CD/IS222CD Series

Usage Other, Water Quality Sensor

Theory Other, ISE Electrode

Epoxy Body Combination ISE Electrodes

Parts covered by this product data sheet include:

IS200CD-NH4, IS200CD-CL, IS200CD-F, IS200CD-NO3, IS200CD-K,

IS222CD-NH4, IS222CD-CL, IS222CD-F, IS222CD-NO3, IS222CD-K

IS200CD/IS222CD Series Epoxy Body Combination ISE Electrodes Features
• Easy-to-use combination sensors
• ISE types available: Fluoride (F-), Chloride (Cl-), Ammonium (NH4+), Postassium (K+) and Nitrate (NO3-)
• Fixed cable or quick-disconnect cartridge
• Rugged epoxy body

IS200CD/IS222CD Series Epoxy Body Combination ISE Electrodes Description
Sensorex offers a combination Ion Selective Electrodes (ISE's) for Fluoride (F-), Chloride (Cl-), Ammonium (NH4+), Postassium (K+) and Nitrate (NO3-) measurement. These covenient combination electrodes use just one electrode to measure ppm of ions.

All Sensorex ISE's are housed in rugged plastic bodies and offer a choice of fixed cable or detachable cable design.

Use these electrodes with your ISE meter, pH meter in mV mode or with any mV input device.

Sensorex ISE's require little to know cleaning and are maintenance free (no reference or ISE refill solution required).

Each electrode is shipped in a bottle with or without a storage solution and are ready for immediate use.

IS200CD/IS222CD Series Epoxy Body Combination ISE Electrodes ELECTRODE SPECIFICATIONS

Dimensions:	6.50" (165 mm) H x 0.476"(12 mm) OD
Wetted Materials:	ISE pellet (F- , Cl-) ISE membrane (NH4+, NO3- , K+) Body: Epoxy Junction: Silicone/Pellon
Temperature Range:	0-60°C (F- , Cl- only) 0-40°C (NH4+, NO3- , K+)
Isopotential Point:	NH4+ = 0 +/-20mV (1ppm) K+ = 0 +/-20mV F- = 240 +=/-20mV NO3- = 200 +/-20mV Cl- = 225 +/-20mV (10ppm
Slope:	56 +/-4mV
pH Range:	Cl- : 2 - 10 pH NH4+: 4 - 10 pH NO3- : 3 - 11 pH K+: 3 - 11 pH F- : 5 - 7 pH
Concentration Range:	Cl- : 5 x 10-5 to 1M NH4+ : 1 x 10-6 to 1M NO3- : 7 x 10-6 to 1M K+ : 1 x 10-6 to 1M F- : 1 x 10-5 to 1M
Response Time:	90% in 1 minute
Interferring ions:	NH4+ = K+. Li+, Na+, Cs+ K+ = Cs+, NH4+, H+, Li+, Na+, Ag+ F- = OH- , H+ complexes NO3- = Cl- , NO2-, Br- , CN- , ClO3- , I- , ClO4- CL- = S-2, I- , Br- , CN- , OH-

IS200CD/IS222CD Series Epoxy Body Combination ISE Electrodes Ordering Information

Part Number	ISE Type	Description
IS200CD-NH4	Ammonium (NH4+)	Combination ammonium ISE electrode, 6.5" (165mm) L x 0.48" (12mm) OD, 30" (0.76m) fixed cable, black epoxy body
IS200CD-CL	Chloride (Cl-)	Combination chloride ISE electrode, 6.5" (165mm) L x 0.48" (12mm) OD, 30" (0.76m) fixed cable, black epoxy body
IS200CD-F	Fluoride (F-)	Combination fluoride ISE electrode, 6.5" (165mm) L x 0.48" (12mm) OD, 30" (0.76m) fixed cable, black epoxy body
IS200CD-NO3	Nitrate (NO3-)	Combination nitrate ISE electrode, 6.5" (165mm) L x 0.48" (12mm) OD, 30" (0.76m) fixed cable, black epoxy body
IS200CD-K	Potassium (K+)	Combination potassium ISE electrode, 6.5" (165mm) L x 0.48" (12mm) OD, 30" (0.76m) fixed cable, black epoxy body
IS222CD-NH4	Ammonium (NH4+)	Combination ammonium ISE electrode cartridge 5.7" (145mm) L x 0.48" (12mm) OD, 30" (0.76m), black epoxy body. Requires cable assembly S653.
IS222CD-CL	Chloride (Cl-)	Combination chloride ISE electrode cartridge 5.7" (145mm) L x 0.48" (12mm) OD, 30" (0.76m), black epoxy body. Requires cable assembly S653.
IS2222CD-F	Fluoride (F-)	Combination fluoride ISE electrode cartridge 5.7" (145mm) L x 0.48" (12mm) OD, 30" (0.76m), black epoxy body. Requires cable assembly S653.
IS222CD-NO3	Nitrate (NO3-)	Combination nitrate ISE electrode cartridge 5.7" (145mm) L x 0.48" (12mm) OD, 30" (0.76m), black epoxy body. Requires cable assembly S653.
IS222CD-K	Potassium (K+)	Combination potassium ISE electrode cartridge 5.7" (145mm) L x 0.48" (12mm) OD, 30" (0.76m), black epoxy body. Requires cable assembly S653.
