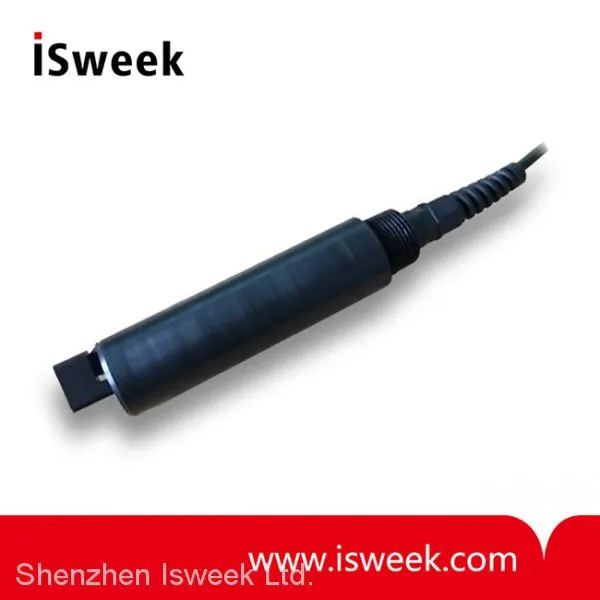

Y511-A Online Self-cleaning Turbidity Sensor
- 1000 Piece / Pieces per Month
- HK
- T/T PayPal
- 7 days
- EDT-01 Electronic Diffusion Tube for Air Quality Monitor
- DGS-NO2 968-043 Digital Nitrogen Dioxide (NO2) Gas Sensor Module
- COH-A2 Carbon Monoxide + Hydrogen Sulfide Sensor (CO + H2S Sensor)
- 4OXV CiTiceL Oxygen (O2) Gas Sensor
- ULPSM-CO 968-001 Ultra-Low Power Analog Carbon Monoxide Sensor Module
- Clean CAP Plus Wireless Ultrasonic Fill-Level Sensor
Product Details
Brand Name: | Yosemite Technologies | Place of Origin: | China | Model Number: | Y511-A |
Usage: | Other, Turbidity Sensor | Theory: | Other, Water Quality Sensor |
Product Description
Y511-A Turbidity Sensor Description
Automatic cleaning turbidity sensor is complied with ISO 7027 Turbidity Standard. The turbidity sensor can be deployed in-situ and provide very stable data over long period of usage, which helps to ensure the quality of your measurements.
Y511-A Turbidity Sensor Typical Applications
Water quality monitoring, waste water testing, process water and aquaculture monitoring.
Y511-A Turbidity Sensor Features
• 0.1~1000 NTU
• Accuracy <5% or 0.3 NTU
• 0~50 ℃; IP68 rating, 10m underwater
• 90°Angle of scattered light principle
• Temperature sensor built-in
• RS-485; MODBUS protocol compatible
• Convenient, fast, stable, easy to maintain
• With automatic cleaning wiper, effectively eliminate the bubbles, reducing contamination without interference by the light interference from the outside world
Y511-A Turbidity Sensor Technical Parameters
Range | 0.1~1000 NTU |
Housing IP Rating | IP68 |
Deepest Depth | 10m underwater |
Accuracy | <5% or 0.3NTU |
Temperature Range | 0 ~ 50℃ |
Interface | Support RS-485, MODBUS protocols |
Assembly | Immersion or circulation installation |
Power Requirements | DC 5~12V, current <50mA |
Sensor OD | 33 mm |
Sensor Length | 156 mm |
Cable Length | 10m standard, 5m, 15m or 30m optional |
Body Materials | POM |
