Good Quality Adult Diaper Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
DC
Place of Origin:
China
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen port
Delivery Detail:
60 days
Related Products
Brand Name
DC
Place of Origin
China
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
one year
Weight
20T
Dimension(L*W*H)
M:700mm×325mm L:800mm×325mm
Voltage
380V
Product Type
Diaper Machine
Condition
New
Power(W)
135KW
Processing Type
Paper Slitting and Rewinding Machine
I. Introduction

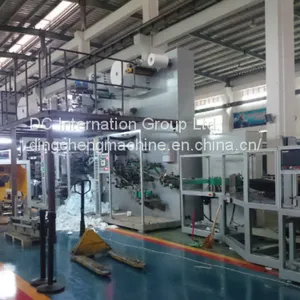

This machine is used to produce adult diaper pads as the picture shown above.
II. Function and Features
Main shaft drive, permanent tension control, material unwind by servo driving, pneumatic material loading shaft, production automatically control, auto-splicing, auto-rejecting, equips material web controllers and touch screen with man-machine conversation interface, which can realize figure control. It can also monitor, display and alarm the failure and conversion state when machine running.
The whole machine is reasonable in distribution, complete in equipment, convenient in installation, operation and maintenance.
Material loading shaft adopts pneumatic shaft.
Driving system adopts main shaft driving.
With hammer type crusher
Crushing amount is 450kg/ h.
There is a sensor for SAP powder adding device, when material used up, machine will alarm.
Automatically inspect materials and reject wasted products, automatically rectify.
Controlled by Mitsubishi Q series PLC and touch screen.
Power supplies have independent switches protection. Control lines are separated from motive lines.
III. Technical Parameters
Product size for your reference: （MM）：M:700mm×325mm L:800mm×325mm
Design Speed: 450pcs/min
Production Speed: 300-400pcs/min
Power supply: 380V 50HZ
Power needed: 135KW（Excluded glue applicators and air compressor）
Air pressure: ≥0.6Mpa
Machine noise:
Wasted Products Rate: ≤3% (excluding the waste and unqualified products caused by material auto splicing and glue applicator)
IV. Export Details
1. Delivery time: 120 days (It takes time to ensure the processing precision, assembling precision, etc. Of course, the delivery time can be discussed as the case may be.)
2. Load port: Xiamen port in Fujian Province
3. Packing: In standard export wooden cases
4. Container: 1 x 20 feet container，3 x 40 feet containers (It depends on the quantity of the machines you buy ).
5. Machine installation and operation training: The seller should dispatch professional technicians and engineers to buyer’s plant to install the machine and train the workers. The round air ticket, accommodation and salary should be paid by buyer.
6. Warranty period: One year(Except easy damaged parts), and will provide long term services including providing spare parts at low price and will heart and soul help the buyer to solve any problem may occur.
7. Our company also provides the raw material to match with the machine.
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2009
Factory Size
Below 1,000 square meters
Annual Export Value
US$5 Million - US$10 Million
