Women Sanitary Napkin Machine (DC-SN-900)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
DC
Place of Origin:
China
Model Number:
DC-SN-900
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen port
Delivery Detail:
60 days
Related Products
Brand Name
DC
Place of Origin
China
Model Number
DC-SN-900
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
one year
Dimension(L*W*H)
20M×1.8M×2.6M (L × W × H)(As per requirement of the products)
Voltage
380V
Product Type
Sanitary Napkin Machine
Condition
New
Power(W)
100KW (excluding the power of glue applicator and the air compressor)
Processing Type
Paper Slitting and Rewinding Machine
I. Introduction
Model name: DC-SN-900

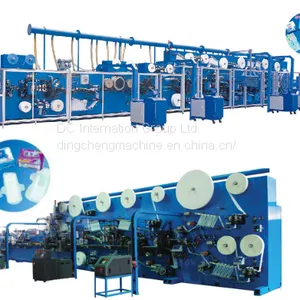

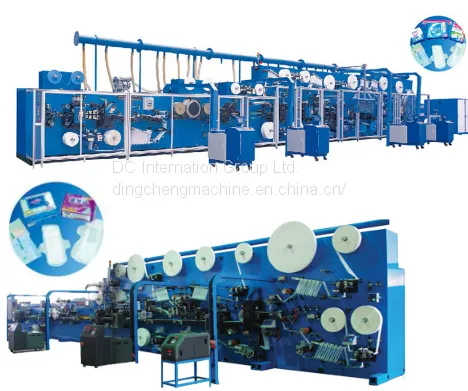

This machine is used to produce women sanitary napkin as the picture shown above.
II. Function and Features
1. Crusher System（crush untreated fluff pulp for one time）.
2. Fluff pulp feeding device and SAP dispensing device are controlled by
independent frequency inverter
3. Equipped with cotton core web wheel (or mold wheel) forming and gridding embossing device.
4. Main materials unwinding adopts permanent tension control, main shaft driving.
Production processes automatically control, and change material rolls without stopping the machine and decelerating. There is material auto checking device and can reject defected products.
5. The main material adopts air expanding feeding shaft and automatic edge rectifying device.
6. Interior and exterior regulation devices are in the key blade parts.
7. The machine is automatically controlled by PLC and the whole machine driving controlled by
frequency inverter.
8. There is touch screen on the operating table. Touch screen operation terminal provides man-machine conversation interface, realizing picture figure digital control (setting of various parameters, production speed, shift output and trouble display).
9. Products arrangement output device.
10. Safety device is equipped on the operation panel.
III. Technical Parameter
1. Working Speed: 600—800 pcs/min
2. Specification: 240mm
3. The qualified rate of the produces reaches 98％(excluding the waste products produced in materials auto splicing or by the glue applicator)
4. Needed power: 100KW (excluding the power of glue applicator and the air compressor)
Power source: 380V 50HZ
5. Dimension: 20M×1.8M×2.6M (L × W × H)(As per requirement of the products)
IV. Export Details
1. Delivery time: 60 days (It takes time to ensure the processing precision, assembling precision, etc. Of course, the delivery time can be discussed as the case may be.)
2. Load port: Xiamen port in Fujian Province
3. Packing: In standard export wooden cases
4. Container: 1 x 20 feet container，2 x 40 feet containers (It depends on the quantity of the machines you buy ).
5. Machine installation and operation training: The seller should dispatch professional technicians and engineers to buyer’s plant to install the machine and train the workers. The round air ticket, accommodation and salary should be paid by buyer.
6. Warranty period: One year(Except easy damaged parts), and will provide long term services including providing spare parts at low price and will heart and soul help the buyer to solve any problem may occur.
7. Our company also provides the raw material to match with the machine.
