Diapers Baby Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
DC
Place of Origin:
China
Model Number:
DC-BD-550
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen port
Delivery Detail:
60 days
Related Products
Brand Name
DC
Place of Origin
China
Model Number
DC-BD-550
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
one year
Weight
20T
Dimension(L*W*H)
28m (L)× 6m(W) ×3.2m (H)
Voltage
380V
Product Type
Diaper Machine
Condition
New
Power(W)
170KW
Processing Type
Paper Slitting and Rewinding Machine
I. Introduction

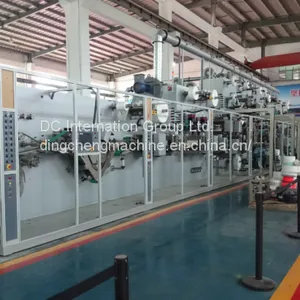

This machine is used to produce baby diapers as the picture shown above.
II. Main Parameters
Product size: S, M, L, XL
Design speed: 600pcs/min
Production speed: 500-550pcs/min
Approx. machine dimensions: 28m (L)× 6m(W) ×3.2m (H)
Power supply: About 170KW
Machine weight: About 40T
Main motor Configuration
Servo motor quantity: 7
Fluff Pulp crusher motor: 30KW
Main motor: 30KW
Model wheel wind motor: 55KW
Main wind motor: 7.5KW
III. Main Parts Brands
| Sensor | SUNX or OMRON (JAPAN) |
|
PLC
Interface control system
Servo system
Servo motor
|
MITSUBISHI (JAPAN)
|
|
Low voltage parts
Air switch
AC contactor
Thermo Relay
|
SCHNEIDER (GERMANY) |
| Bearing for mill | SKF (SWEDEN) |
| Main bearing | NTN or NSK (JAPAN) |
|
Pneumatic Cylinder
Magnetic valve
|
AIRTAC (TAIWAN) |
| Flat belt | HABASIT (SWITZERLAND) |
| Timing belt | GATES (USA) |
IV. Technical Parameters
Product Size：M size: 455mm×330mm
Production Speed： 300-450pcs/min （M SIZE）
The qualified rate of the products reaches 98％(excluding the waste and unqualified products caused by material splicing and glue applicator)
Machine operation rate： 85%
Power source： 380V±5％，50Hz Three phase, four lines + Earth Connection
Power Consumption： 185KW
V. Export Details
1. Delivery time: 60 days (It takes time to ensure the processing precision, assembling precision, etc. Of course, the delivery time can be discussed as the case may be.)
2. Load port: Xiamen port in Fujian Province
3. Packing: In standard export wooden cases
4. Container: 1 x 20 feet container，3 x 40 feet containers (It depends on the quantity of the machines you buy ).
5. Machine installation and operation training: The seller should dispatch professional technicians and engineers to buyer’s plant to install the machine and train the workers. The round air ticket, accommodation and salary should be paid by buyer.
6. Warranty period: One year(Except easy damaged parts), and will provide long term services including providing spare parts at low price and will heart and soul help the buyer to solve any problem may occur.
7. Our company also provides the raw material to match with the machine.
