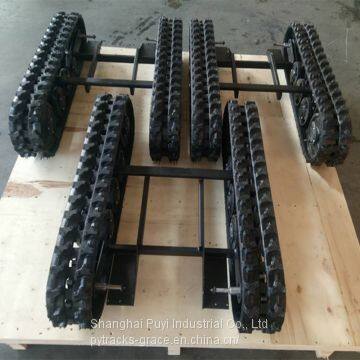

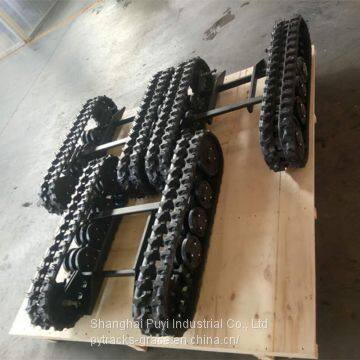

Rubber Track Undercarriage1020*800*290 for Construction Machine
US$ 1048 - 1200
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Puyi
Place of Origin:
China
Model Number:
DP-PY-148
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
25 days
Related Products
-
2017 New Design Rubber Track Undercarriage 600mm*600mm*257mmUS$ 1500 - 1650MOQ: 1 Set -
2017 New Design Rubber Track Chassis 1010mm*540mm*410mmUS$ 2000 - 2200MOQ: 1 Set
-
Rubber Track Chassis 1820*1240*440 for TractorUS$ 2385 - 2500MOQ: 1 Set
-
Mini Type Rubber Track Undercarriage 670mm*525mm*250mmUS$ 1100 - 1300MOQ: 1 Set
-
2017 New Design Rubber Track Chassis 1180mm*890mm*285mmUS$ 1200 - 1500MOQ: 1 Set
Brand Name
Puyi
Place of Origin
China
Model Number
DP-PY-148
All the size(except the track width) can be adjusted
Application: moving platform and other vehicle
Warranty:Guarantee one year under normal use
Application and Features:
1. Suitable for the small wheelchair.
2. Can load weight about 300KG
3. Length can be adjusted.
4. Sprocket is available.
Characteristics of rubber track:
1). Less damage to the ground surface
2). Low noise
3). High running speed
4). Less vibration;
5). Low ground contack specific pressure
6). High tractive force
7). Light weight
8). Easy to change
Specifications:
| Length | Width | Height | Drive Wheel Diameter | Track Width | Weight | Load bearing | Speed |
| 1020mm | 800mm | 290mm | 200mm | 148mm | 71.75kg | 300kg | ------- |
Parameters:
| Rubber Tracks Specification | |||
| Type:PY-50A | Type:PY-50B | Type:PY-60A | Type:PY-60B |
| Link No.54 | Link No.46 | Link No.66 | Link No.50 |
| Pitch:19mm | Pitch:20mm | Pitch:12.7mm | Pitch:18.5mm |
| Width:50mm | Width:50mm | Width:60mm | Width:60mm |
| Total length:1026mm | Total length:920mm | Total length:838.2mm | Total length:925mm |
| Weight:0.5Kg | Weight:0.5Kg | Weight:1.2Kg | Weight:0.44Kg |
| Type:PY-76 | Type:PY-80 | Type:PY-85 | Type:PY-100A |
| Link No.120 | Link No.108 | Link No.24 | Link No.50 |
| Pitch:12.7mm | Pitch:15mm | Pitch:59.4mm | Pitch:40mm |
| Width:76mm | Width:80mm | Width:85mm | Width:100mm |
| Total length:1524mm | Total length:1620mm | Total length:1425.6mm | Total length:2000mm |
| Weight:1.92Kg | Weight:1.2Kg | Weight:1.92Kg | Weight:4Kg |
| Type:PY-100B | Type:PY-110 | Type:PY-115 | Type:PY-118A |
| Link No.76 | Link No.32 | Link No.32 | Link No.18 |
| Pitch:20mm | Pitch:42mm | Pitch:65mm | Pitch:61mm |
| Width:100mm | Width:110mm | Width:115mm | Width:118mm |
| Total length:1520mm | Total length:1344mm | Total length:2080mm | Total length:1098mm |
| Weight:1.84Kg | Weight:2.12Kg | Weight:Kg | Weight:2.32Kg |
| Type:PY-118B | Type:PY-118C | Type:PY-123 | Type:PY-130 |
| Link No.20 | Link No.24 | Link No.60 | Link No.28 |
| Pitch:60mm | Pitch:61mm | Pitch:40mm | Pitch:72mm |
| Width:118mm | Width:118mm | Width:123mm | Width:130mm |
| Total length:1200mm | Total length:1464mm | Total length:2400mm | Total length:2016mm |
| Weight:2.44Kg | Weight:3.9Kg | Weight:8Kg | Weight:11.2Kg |
| Type:PY-135 | Type:PY-136 | Type:PY-140 | Type:PY-148 |
| Link No.72 | Link No.41 | Link No.24 | Link No.36 |
| Pitch:18.5mm | Pitch:45mm | Pitch:80mm | Pitch:60mm |
| Width:135mm | Width:136mm | Width:140mm | Width:148mm |
| Total length:1332mm | Total length:1845mm | Total length:1920mm | Total length:2160mm |
| Weight:1.66Kg | Weight:3.56Kg | Weight:5Kg | Weight:16Kg |
| Type:PY-150 | Type:PY-180 | Type:PY-200 | Type:PY-255A |
| Link No.22 | Link No.42 | Link No.60 | Link No.30 |
| Pitch:63.4mm | Pitch:65mm | Pitch:61.5mm | Pitch:72mm |
| Width:150mm | Width:180mm | Width:200mm | Width:255mm |
| Total length:1394.8mm | Total length:2730mm | Total length:3690mm | Total length:2160mm |
| Weight:3.6Kg | Weight:20Kg | Weight:12Kg | |
| Type:PY-255B | Type:PY-300 | Type:PY-320 | Type:PY-350 |
| Link No.35 | Link No.58 | Link No.33 | Link No.53 |
| Pitch:65mm | Pitch:109mm | Pitch:87mm | Pitch:100mm |
| Width:255mm | Width:300mm | Width:320mm | Width:350mm |
| Total length:2275mm | Total length:6322mm | Total length:2871mm | Total length:5300mm |
| Weight:10Kg | Weight:22Kg | ||
| Type:PY-382 | Type:PY-400 | Type:PY-420 | Type:PY-500 |
| Link No.54 | Link No.46 | Link No.58 | Link No.48 |
| Pitch:64mm | Pitch:90mm | Pitch:100mm | Pitch:63.5mm |
| Width:382mm | Width:400mm | Width:420mm | Width:500mm |
| Total length:3456mm | Total length:4140mm | Total length:5800mm | Total length:3048mm |
| Weight:29Kg | Weight:43.2Kg | ||
