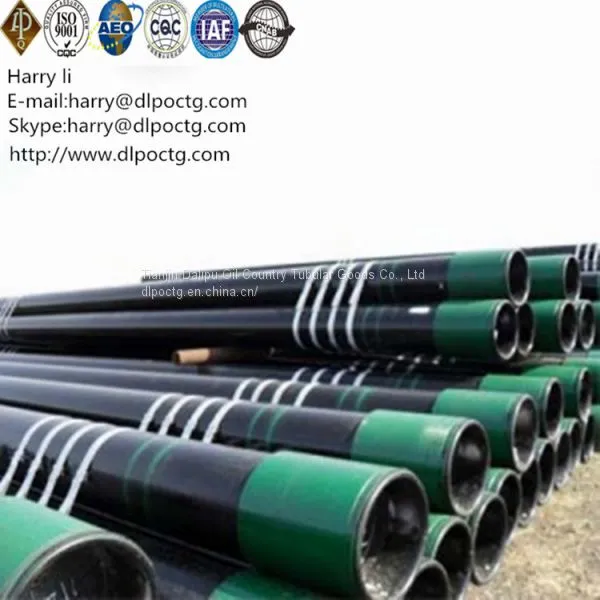

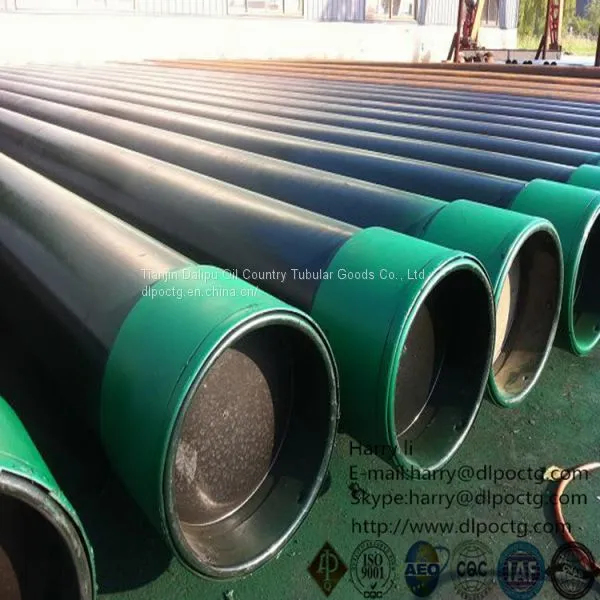

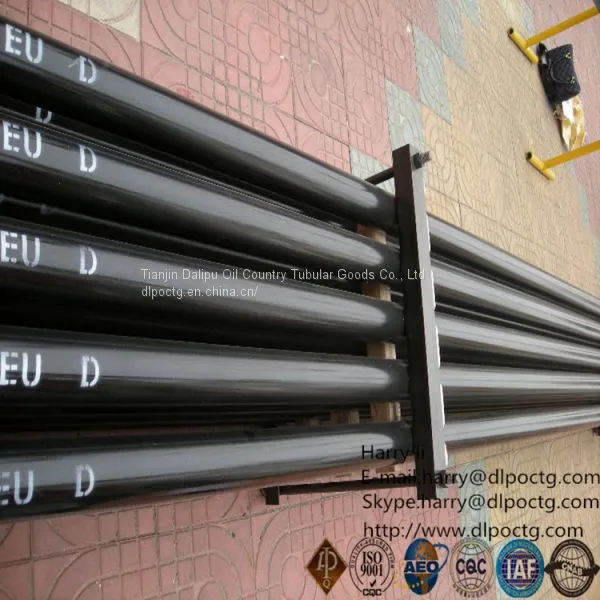

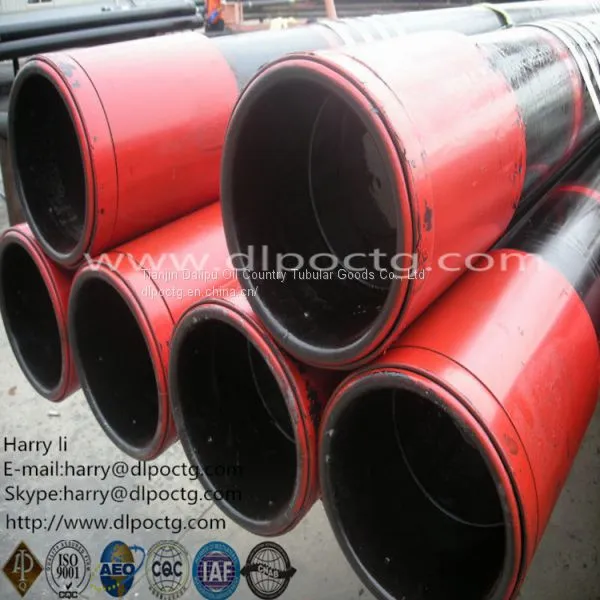

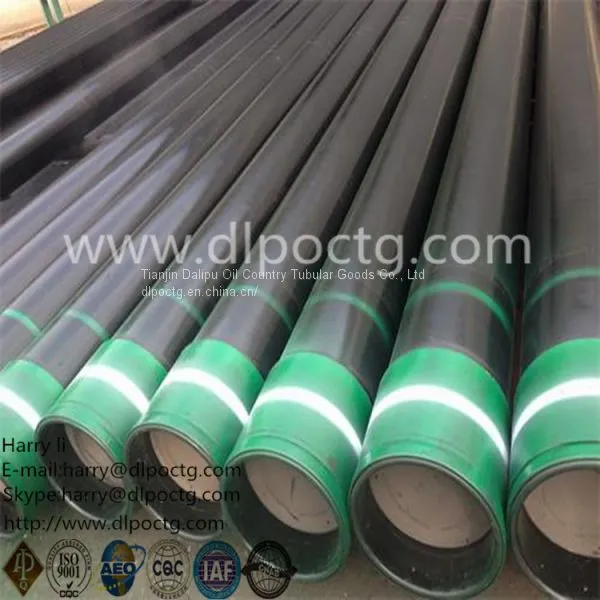

Api5ct oil casing manufacturers N80 oil casing supply casing pipe
Oil casing is used to support the oil, gas shaft wall of the pipe to ensure that the drilling process and after the completion of the normal operation of the entire well. Each well according to the different drilling depth and geological conditions, to use several layers of casing. After the casing to take cement cementing, it is with the tubing, the drill pipe is different, can not be reused, are a one-time consumption of materials. Therefore, the consumption of casing accounted for more than 70% of all oil wells. The casing according to the user can be divided into the duct, surface casing, technical casing, and casing.
Steel casing pipe protects one or many of various types of utilities such as water mains, gas pipes, electrical power cables, fiber optic cables, etc.The utility lines that are run through the steel casing pipe are most commonly mounted and spaced within the steel casing pipe by using "casing spacers" that are made of various materials, including stainless steel or carbon steel and the more economical plastic versions.The ends of a steel casing pipe "run" are normally sealed with "casing end seals", which can be of the"pull-on" or"wrap-around" rubber varieties.Steel casing pipe is also used in the construction of deep foundations.
| Product Name | API 5CT oil casing manufacturers N80 oil casing supply casing pipe | |
| Material | GR.B,L80,N80,H40,J/K55,N80-1,N80Q,P110,C90,C95,Q125,80S,80SS,90S,90SS,L80-3Cr/9Cr/13Cr/28Cr | |
| Size | OD | 114.30mm -508.00mm |
| Wall Thickness | 5.21mm-16.13mm | |
| Length | R1:6.1-7.32m;R2:8.53-9.75m;R3:11.58-12.80m;Less than 12m , or as buyer's requirements | |
| Standard | API5L , ASTM A106 Gr.B, ASTM A53 Gr.B,ANSI A210-1996, ANSI B36.10M-2004 , ASTMA1020-2002,ASTM A179-1990 ,BS 3059-2,DIN 17175 ,DIN 1630 ,DIN 2448 | |
| Certificates | API5CT, ISO 9001:2008 | |
| Surface Treatment | black paint, varnish, oil, galvanized, anti corrosion coatings | |
| Marking | Standard marking, or according to your request. | |
| Pipe Ends | Under 2-inch plain end. 2 inches and above Beveled. Plastic caps (small OD), Iron protector (large OD) | |
| Packaging | Loose package; Packaged in bundles(2Ton Max); bundled pipes with two slings at the both end for easy loading and discharging; End with Plastic caps; wooden cases.Or as buyer’s requirements. | |
| Test | Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing, X-ray Test. | |
| Application | oil pipe; gas pipe; water pipe; sewage Transport | |
| Advantages |
1.Reasonable price with excellent quality 2.Abundant stock and prompt delivery 3.Rich supply and export experience, sincere service 4.Reliable forwarder, 2-hour away from the port. |
|
| Port of Shipment | Tianjin Port, Tianjin, China | |
| Date of Delivery | Shipped in 10 days after payment | |
| Nominal size | Outer diameter(mm) | Thickness(mm) | Inner Diameter(mm) | Nominal Diameter(mm) |
| 4-1/2'' | 114.30 | 5.21 | 103.88 | 100.70 |
| 5'' | 127.00 | 5.59 | 115.82 | 112.64 |
| 5-1/2'' | 139.70 | 6.20 | 127.30 | 124.12 |
| 7'' | 177.80 | 5.87 | 166.06 | 162.88 |
| 8-5/8'' | 219.08 | 6.71 | 205.66 | 202.48 |
| 9-5/8'' | 244.48 | 7.92 | 228.60 | 224.66 |
| 10-3/4'' | 273.05 | 7.09 | 258.90 | 254.91 |
| 11-3/4'' | 298.45 | 8.46 | 281.50 | 279.40 |
| 13-3/8'' | 339.72 | 8.38 | 322.96 | 318.99 |
Packaging Details: casing steel pipe, black painting, plastic caps on both ends, according to customer's requirements.
1.Standard export wooden cases: Suitable for small size pipe and small quantity, or scattered parts.
2.Container: Suitable for the pipes that under 6m or 12m.
3.Bulk cargo: Suitable for the pipe that longer than 12m, or irregular length and shape.
Delivery Detail: Shipped in 10 days after payment.
FAQ
Q: How long is your delivery time?
A: If there are stocks, take 5-10 days to delivery for smelly quantity, and 30-40 days for bigger quantity; If no stock, depends on the steel billet purchase.
Q: What about your payment term?
A: Usually T/T or L/C,30% deposit and 70% before delivery.
Q: What about your standard delivery date.
A:30 days after receiving the deposit.We are pleased to provide you with best services in consulting, purchasing,transportation, installation, and after-sales services.
