Help CenterREOO Supply High Quality Solar Panel Laminating Machines
Related Products
-
REOO Full Automatic Solar Panel Laminating Machines for Solar ModuleUS$ 55000 - 58000MOQ: 1 Set -
REOO 20mw 10mw 5MW Solar pv Panels Production Line for Solar PanelsUS$ 75000 - 95000MOQ: 10 Plants
-
REOO FULL Auto Laminator Type 10MW Solar Panel Assembly Line With TRaining and InstallationUS$ 95000 - 125000MOQ: 10 Plants
-
REOO Solar System IP67 MC4 Connector 4.0mm2 and 6.0mm2US$ 0.45 - 0.6MOQ: 100 Pairs
-
REOO T Branch Female and Male Connectors MC4 Solar ConnectorUS$ 2.65 - 2.8MOQ: 100 Pairs

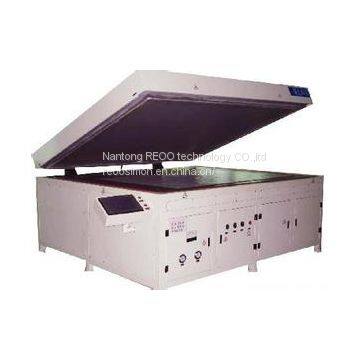

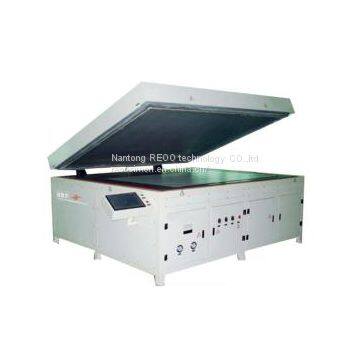

5MW Solar panel laminator
RO-B1 Solar panel laminator,Semi automatic,Can process 2 pcs of 300watt solar panel in one times.
Specification:
1.Semi automatic solar module laminator;
2.PLC + Touch screen control;
3.Energy-saving laminator;
4.Operate,maintain easily.
5. Obtained ISO9001 and CE certification system already.
Technical parameter:
ITEM |
SPECIFICATION |
Laminating area |
2200mm x 2200mm. |
Total power consumption |
45 KW ( AC380V, 60 Hz , or according to customer's need ) |
Air source |
0.6 - 1.0 MPa |
Operating mode |
Manual / Automatic |
Control system |
PLC |
HIM system |
Touch screen |
Heating mode |
Oil Heating |
Temperature control |
PID intelligent temperature contol system |
Temperature uniformity in working area |
≤ ±1.5 ℃ |
Temperature control accuracy |
≤± 1 ℃ |
Temperature control range |
30℃ - 180 ℃ |
Pumping rate |
70 L/s |
Laminating time |
2 - 4 mins |
Vacuum rate |
200 L / S |
limit vacuum |
70 ~ 90 Pa |
vacuum Time |
90 seconds |
Silicone sheet size |
2400mm * 2400mm, 5 mm thickness |
Lid opening |
by air |
Total weight |
5500kg |
Production capacity |
Conventional 210 Wp (1650*1030) module |
Warranty period |
12 months. (Exclusive quick-wear parts). |
Dimension |
3000mm x 2700mm x 1400mm |
Product capacity :
Conventional 150Wp (1482*676) solar module, 2 pcs in one cycle time.
Production capacity:
150 W * 2pieces / time * 3 times / h * 8 hours * 300 days= 2.16MW / year.
|
Mr.Simon Sun NANTONG REOO TECHNOLOGY CO.,LTD.
Add: Chennan industrial park, Rudong, Jiangsu, Chima
PC226400
Tel: 86 513 8410 5399
Fax: 86 513 8410 5505
Skype: reoolisa
WhatsApp: 0086 188 629 38063
|
Send Inquiry to This Supplier
