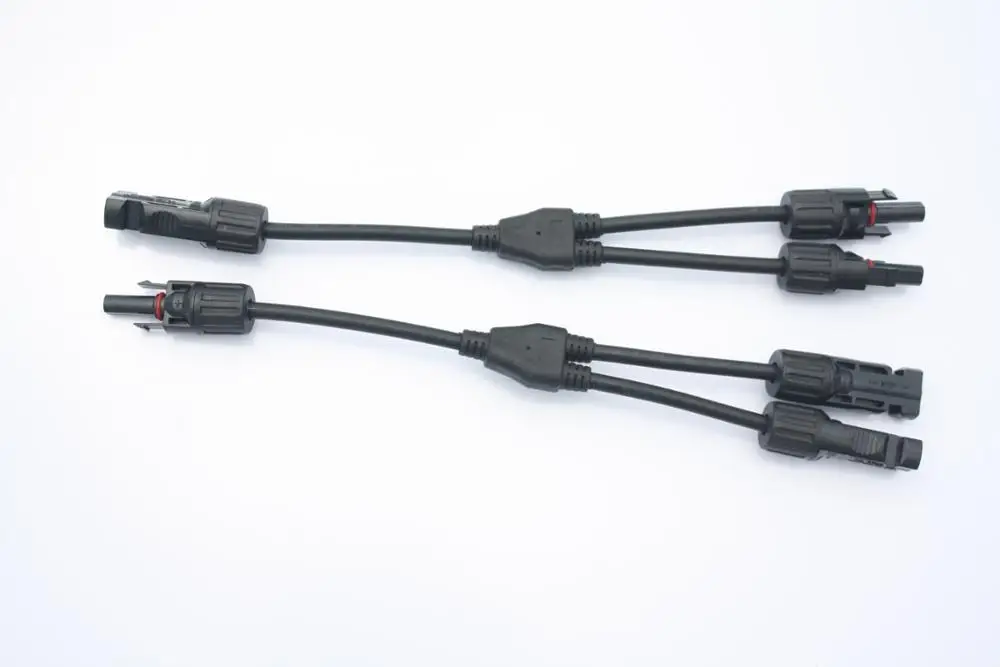

RO-1 solar power connector
1. Water proof and dust proof IP67
2. TUV standard
3. Copper tin plated
4. PC insulated
5. Cable range: 2.5mm2 /4mm2 /6 mm2
RO-1 Solar cable connector, compatible MC4 connector.
Application
Easy and reliable connection of the solar cables to the photovoltaic system (solar panels, converters)
Completely match with MC4 solar connector.
TUV certified.
Excellent material for protection.
PC material, long life.
Easym, quckly to connecte.
High frequency welding, reliable drawing force.
Personal data:
Item |
RO-1 Y solar cable connector |
Compatible: |
MC4 solar connector |
Insulation material: |
PC |
Rated current : |
30A |
Rated voltage: |
1500V |
Test voltage : |
6000V(50Hz,1Min) |
Contact material : |
Copper Tin plated |

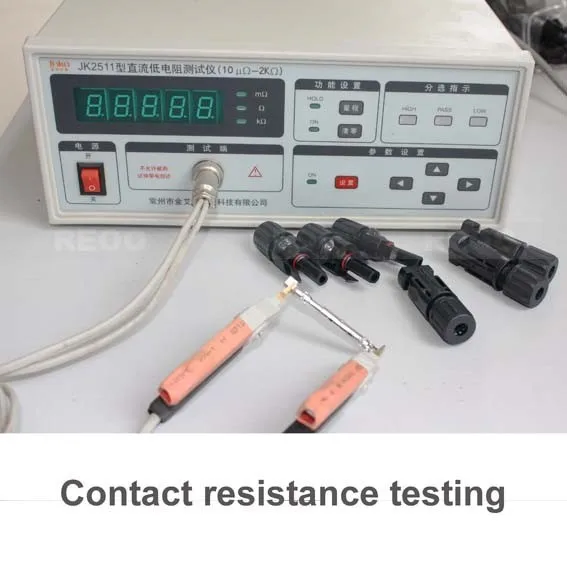

Contact resistance: |
2mΩ |
Degree of protection : |
IP67 |
Safety class: |
2 |
Flame class: |
UL94-V0 |
Insertion force : |
≤50N |
Withdrawal force : |
≥50N |
Ambient temperature range : |
-40 degree to +90 degree |
Connector diameter : |
4mm |
Compatible cable cross sections : |
solar cable 4.0mm2 and 6.0 mm2 |
Suitble cable : |
2.5-6.0mm2 AWG 14/12/10 |
Be used for: |
Connecting PV cable |
characteristic |
High insulation,Big tension,Fast integration |
Package:
Male: 100 sets / PE bag. 10 bag / carton
Female : 100 sets / PE bag. 10 bag / carton .
Measure : 380mm x 290mm x 470mm / carton.
Net weight : 25 Kg /carton.
Gross weight : 26 Kg. /carton.
