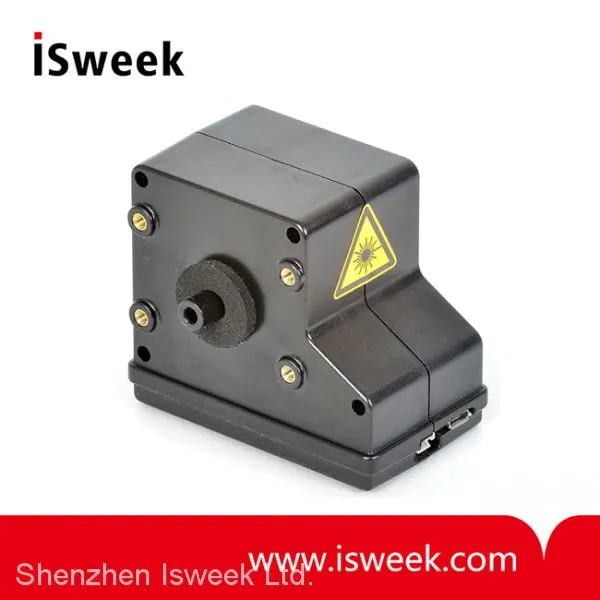

OPC-N3 PM2.5 Particle Sensor
USD $550 - $700
/ Piece
1 Piece(Min.Order)
- 3000 Piece / Pieces per Month
- HK
- T/T PayPal
- 7 days
You May Like
- HCL-A1 Hydrogen Chloride (HCN) Sensor
- MB7137 I2CXL-TrashSonar-WR High Performance Ultrasonic Sensor for Trash Bin Measurement
- MB7066 XL-MaxSonar-WRL1 High Performance Ultrasonic Rangefinder
- CS8000TC Cooling Tower Conductivity Sensor and Flow Cell
- IS200CD/IS222CD Series Epoxy Body Combination ISE Electrodes
- SE 554 Memosens pH Sensor
Product Details
Brand Name: | Alphasense | Place of Origin: | United Kingdom | Model Number: | OPC-N3 |
Usage: | Gas Sensor | Theory: | Other, Electrochemical Gas Sensor |
Product Description
OPC-N3 PM2.5 Particle Sensor Schematic Diagram
* PM1 , PM2.5 and PM10
* Reduced power standby mode
* Capability to measure up to 2,000 µ g/m 3
* Onboard temperature and humidity sensor
* SPI interface not included, order code 000-0SPI-00
OPC-N3 PM2.5 Particle Sensor MEASUREMENT | ||
Particle range | Spherical equivalent size (based on RI of 1.5, S of 1.65) | 0.38 to 40 |
Size categorisation | Number of software bins | 24 |
Sampling interval | Histogram period (seconds) | 1 to 30 |
Total flow rate (typical) | L/min | 1.2 |
Sample flow rate (typical) | mL/min | 220 |
Max particle count rate | Particles/second | 10,000 |
Max coincidence probability | % concentration at 10 6 particles/L | 0.84 |
% concentration at 500 particles/L | 0.24 | |
OPC-N3 PM2.5 Particle Sensor POWER | ||
Measurement mode | mA (typical) | 175 |
Standyby mode | mA (typical) | <50 |
Voltage range | VDC | 4.8 to 5.2 |
Switch-on transient | mW for 1ms | <5000 |
OPC-N3 PM2.5 Particle Sensor DATA | ||
Digital interface/connections | SPI (real-time data and communications) | |
Micro USB (firmware updates and standalone mode) | ||
Data storage | micro-SD (.CSV format) (GB) | 16 |
OPC-N3 PM2.5 Particle Sensor KEY SPECIFICATIONS | ||
Digital interface | SPI (Mode 1), USB | |
Laser classification | as enclosed housing | Class 1 |
Temperature range | °C | -10 to 50 |
Humidity range | % rh (continuous) | 0 to 95 (non-condensing) |
Weight | g | <105 |
