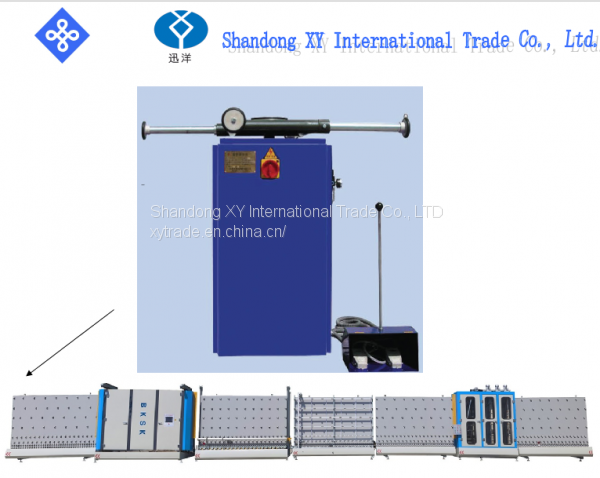

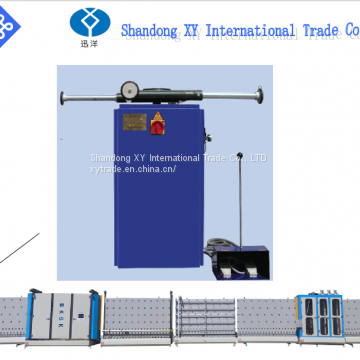

XZT01 Rotating sealing table
Main Feature
1.Adopt vacuum ejector structure adsorbing the glass well

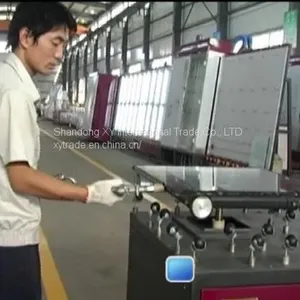

2.Turning round 90 degree every time , orientating exactly, operating and extruding glue conveniently
3.Convenient to extrude glue and convey for big glass.
Main Technique Parameter
Power Supply | 3P. 380V/50HZ |
Total power | 0.12kw |
Working rotational speed | 13r/min |
Compress air pressure | 0.4-0.6mpa |
Working glass size | 2000X1500 mm |
Outline size LXWXH | 660X550X1100mm |
Total weight | 100kg |
We are Shandong XY International Trade Co.,Ltd, a professional supplier of Insulating glass machinery with our own OEM factory.
Our factory is initially founded in July 2000, engaged in the production, research, development and selling high and middle grade glass process equipment.
Our I.G.U line includes double glazing glass machinery, automatic sealing robot, aluminum spacer bending, Butyl coating machine, glass cutting machine and so on.
We have passed the authentication if ISO9001:2000, SGS certificate and the products has obtained CE certificate.
Package Service:
Covering the machine with plastic sheet, then pack with wooden/steel pallet which is suitable for shipping by sea
If you have any question, please feel free to contact me.
