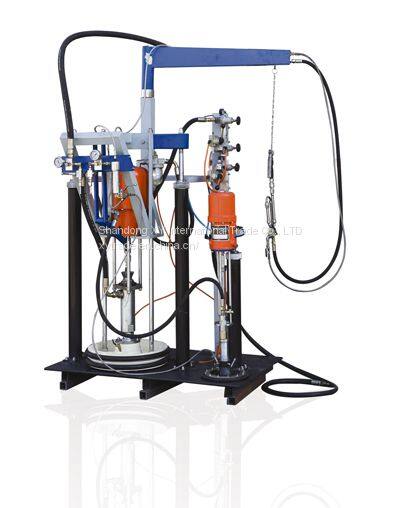

SDQ-III Two-component Sealant Extruders
Main Features
1. It is easy to adjust the ratio through adjustable pressure synchronous linkage mechanism.
2. The needle one-way valve could ensure that the mixture will not reflow to avoid the pipe solidification.
3. Fully closed curing agent glue system, avoid curing agent and air contact and curing.
4. Sensitive high-pressure protective value makes the operation in safe condition.
5. Gas pressure driven has the performance of stable pressure, uniform output.
6. Adopt international popular static reciprocating mixer, mixing more uniform.
7. The main raw materials: silicone sealant, polysulfide sealant, polyurethane adhesive, etc.
A group glue pot |
Barrel diameter |
570mm |
Volume |
200L |
|
B group glue pot |
Barrel diameter |
280/295mm |
Volume |
20L |
|
Ratio rang |
A glue: B glue |
7:1 -- 13:1 |
Max. output |
L/min |
1 |
Pneumatic system |
Work pressure |
0.5 -- 0.8 MPa |
Air supply |
0.8m³/min |
|
Outline dimension |
L * H * H |
1160 * 1040 * 2640mm |
Total weight |
Kg |
580 |
We pay attention on product details:
The production line adopts the world famous brand famous low-voltage apparatus, sensors and PLC, ect.
We are Shandong XY International Trade Co.,Ltd, a professional supplier of Insulating glass machinery with our own OEM factory.
Our factory is initially founded in July 2000, engaged in the production, research, development and selling high and middle grade glass process equipment.
Our I.G.U line includes double glazing glass machinery, automatic sealing robot, aluminum spacer bending, Butyl coating machine, glass cutting machine and so on.
We have passed the authentication if ISO9001:2000, SGS certificate and the products has obtained CE certificate.
Package Service:
Covering the machine with plastic sheet, then pack with wooden/steel pallet which is suitable for shipping by sea
If you have any question, please feel free to contact me.
