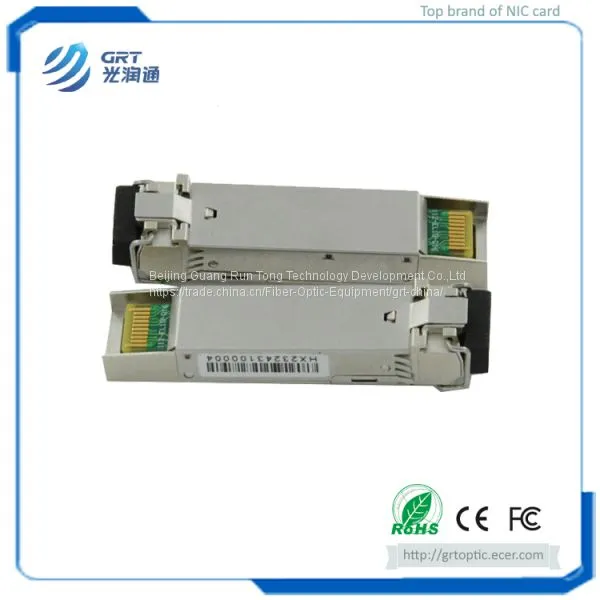

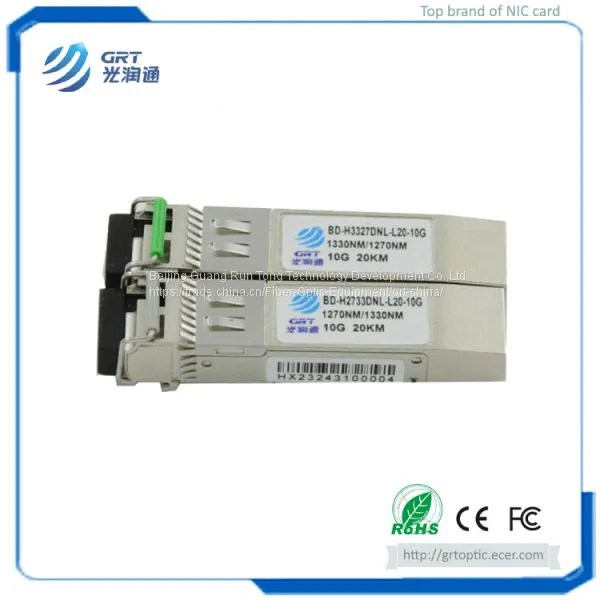

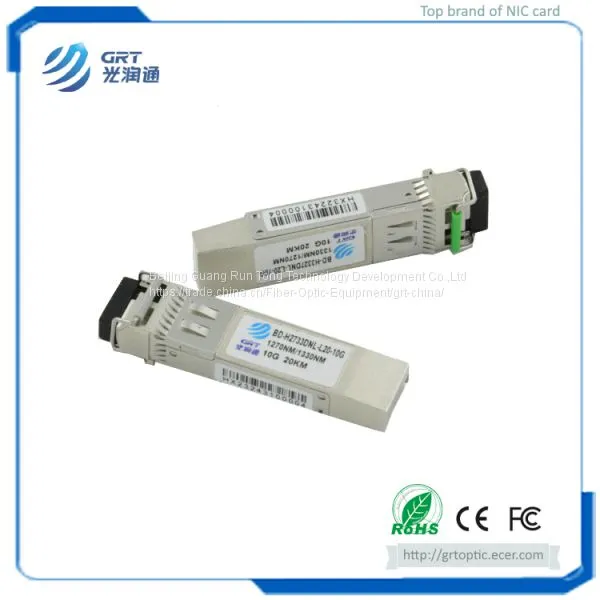

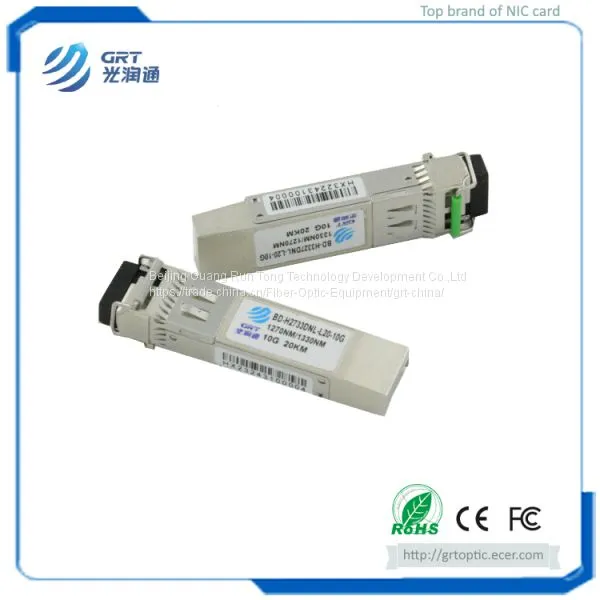

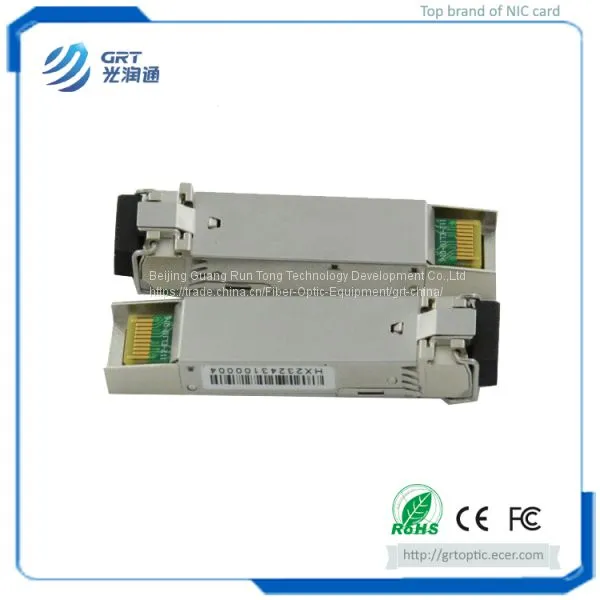

Brand New BD-H2733DNL-L20-10G 1270/1330nm 20km BiDi Bi directional Optical Module for Long Range Datacom Telecom
1. Key Specifications
| Model No.: | BD-H2733DNL-L20 |
| Max. Data Rate: | 10GB/S |
| Operating Wavelength: | 1270nm /1310nm |
| Transmission Distance: | 20KM |
| ROHS Lead Free: | √ |
| Media Type: | Singlemode |
| Transmitter: | DFB |
| Receiver: | PIN |
| Voltage Supply(V): | 3.3V |
| Operating Temperature(℃): | 0℃～70℃ |
| Connector:; | LC |
| Hot pluggable: | Pluggable |
| Brand: | GRT |
| Certification: | CE/FCC/RoHS/TUV/UL |
STANDARD
● SFP+ MSA Compliant
● SFF-8472 reversion 9.5 compliant
● IEEE802.3-2005 compliant
● Telcordia GR-468-CORE compliant
● FCC 47 CFR Part 15,Class B compliant
● FDA 21 CFR 1040.10 and 1040.11,class1 compliant
● RoHS compliant
2. Application
With 10G BiDi SFP Optical Module 1270/1310nm 20km, cabling in data center or server room would be much easier, and saving you a lot of cabling cost.
Ethernet networking
Telecommunication
Fiber Channel
3.Operation Environment
GERERAL OPERATING CHARACTERISTICS
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note | |
| Data Rate | Ethernet | 10.3125 | Gb/s | ||||
| Fiber Channel | 9.953 | ||||||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | ||
| Vcc | V | ||||||
| Supply Current | Icc5 | mA | |||||
| Icc3 | 400 | mA | |||||
| Operating Case Temp. | Tc | 0 | 70 | °C | |||
4. Compatibility
All of GRT's transceiver modules are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
5. Normal Package & Notes on application
Please keep the transceiver modules from dust, moist and oil contamination.
Try to avoid the electrostatic.
Try to avoid direct contact with sensitive areas such as connecting finger.
6. Service
With self-owned brand and independent intellectual property rights, we can design and manufacture upon your requests, and offering you a 7*24h professional technical support.
OEM/ODM/OBM service are all available.
Talk to us, we’ll do our best to suit your needs. And welcome to visit us in Beijing!
