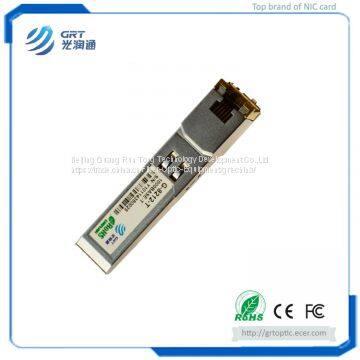

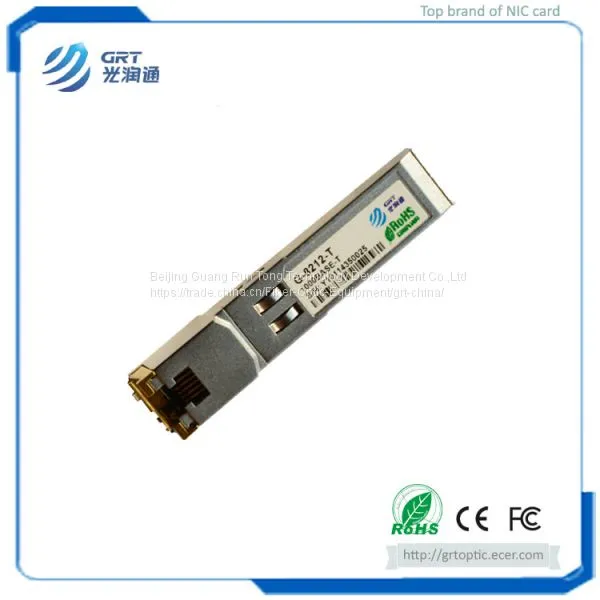

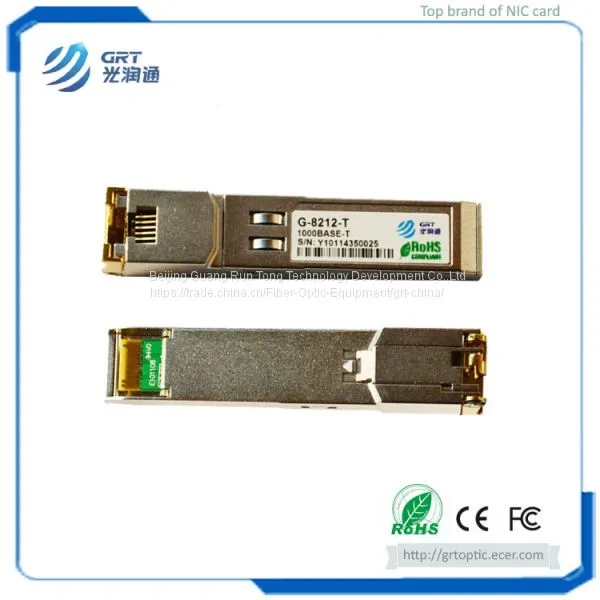

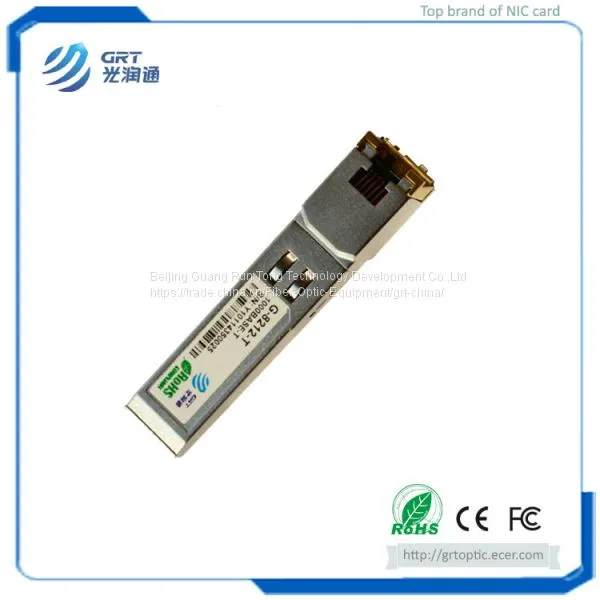

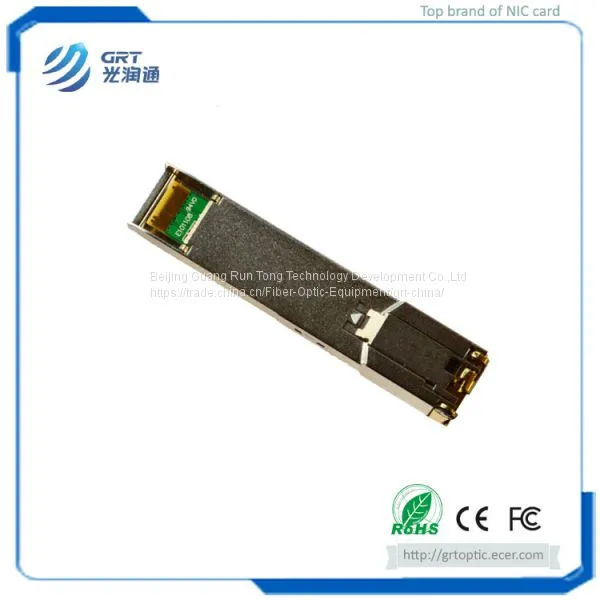

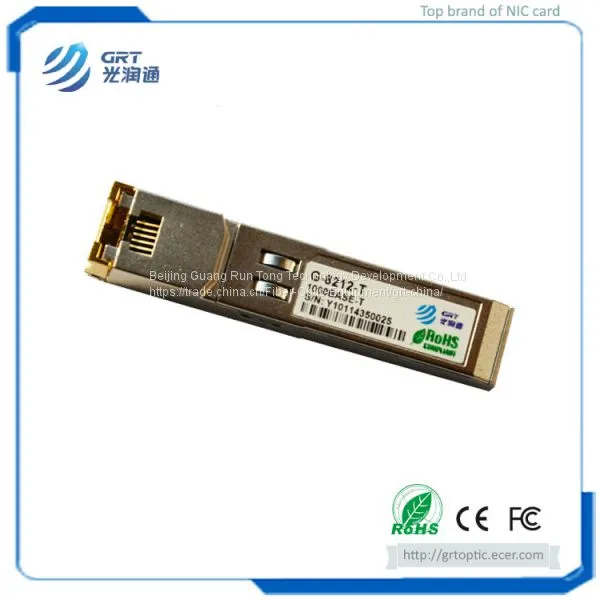

Help CenterG-8212-T Hot-pluggable 1.25Gb 1000BASE-T Copper RJ-45 SFP Transceiver Module
Related Products
-
Brand New BD-H2733DNL-L20-10G 1270/1330nm 20km BiDi Bi Directional Optical ModuleUS$ 1 - 400MOQ: 1 Piece -
Brand New BD-G35DNL-L20 1.25G 1310/1550nm 20km BiDi Bi-directional Optical ModuleUS$ 1 - 100MOQ: 1 Piece
-
BD-H2733DNL-L40-10G 40km 10G 1270/1330nm BiDi Bi Directional Optical ModuleUS$ 1 - 500MOQ: 1 Piece
-
BD-H2733DNL-L10-10G 10km 10G 1270/1330nm BiDi Bi Directional Optical ModuleUS$ 1 - 500MOQ: 1 Piece
-
High-end 1.25G BiDi SFP Optical Module 1310/1550nm 40km for Long Range Datacom TelecomUS$ 1 - 200MOQ: 1 Piece
G-8212-T Lead-free 1.25Gigabit 1000BASE-T Copper SFP Transceiver
Hot-pluggable RJ-45 connactor
1000BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3 . The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features, the RX_LOS pin for link indication, and 1000BASE-X auto-negotiation should be disabled on the host system.
1. Key Features
Hot-pluggable SFP footprint
Low power dissipation(1.05W typical)
Compact RJ-45 connector assembly
Fully metal enclosure, for lower EMI
RoHS compliant and lead-free
Single +3.3V power supply
1.25 Gigabit Ethernet over Cat 5 cable
Case operating temperature:
Commercial: 0°C to +70°C
Extended: -10°C to +80°C
Industrial: -40°C to +85°C
2. Application
NIC network cards
Switches
Routers
VPN equipment
Traffic control device
GAP
Fiber Media Converter
Firewall
Storage device
Telecommunication
Fiber Channel
3.Mechanical Specifications
4.Compatibility
All of GRT's transceiver modules are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
5. General Specifications & Normal Package
| General | ||||||
| Parameter | Symbol | Min | Typ | Max | unit | Notes/Conditions |
| Data Rate | BR | 10 | 1000 | Mb/sec |
IEEE 802.3 compatible. See Notes 2 through 4 below |
|
| Cable Length | L | 100 | m | Category 5 UTP. BER | ||
Notes:
1. Clock tolerance is +/- 50 ppm
2. By default, the T12 is a full duplex device in preferred master mode
3. Automatic crossover detection is enabled. External crossover cable is not required
4. T12does not support SGMII .With a SERDES the module will operate at 1000BASE-T only
6. Service
With self-owned brand and independent intellectual property rights, we can design and manufacture upon your requests, and offering you a 7*24h professional technical support.
OEM/ODM/OBM service are all available.
Talk to us, we’ll do our best to suit your needs. And welcome to visit us in Beijing!
