The tiles produced by this machine are widely used in all kinds of factories, houses, warehouses and simple steel shed, with beautiful appearance, high efficiency and reliable working. It consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, high precision counter and so on.
Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity. Lease refer to the equipment regulation to know the function of locate angle iron.
1.Suitable material colored steel sheet,galvanized steel sheet
2.Installation Dimension (L*W*H): 6.5*1.3*1.4m
3.Main motor power 3KW with Cycloidal reducer
4.Hydraulic station power 3KW
5.Length Measurement Encoder
6.Control Style PLC

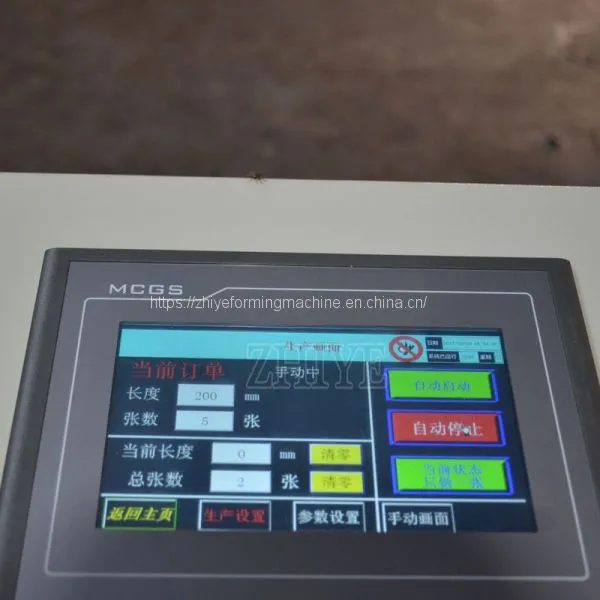

7.Operation Model Button + Touch Screen
8.Total Power 8kw
9.Voltage 380V 50HZ or at buyer's request
10.Processing Thickness(mm) 0.3-0.8mm
Package：Nude, the computer controlling part is packed with water proof cloth.
The adjustable roll forming machine packed 20 feet container, it fits for ocean shipping. We have good relationship with the shipping agent to get good freight price for you. You can also find yourself at your side.

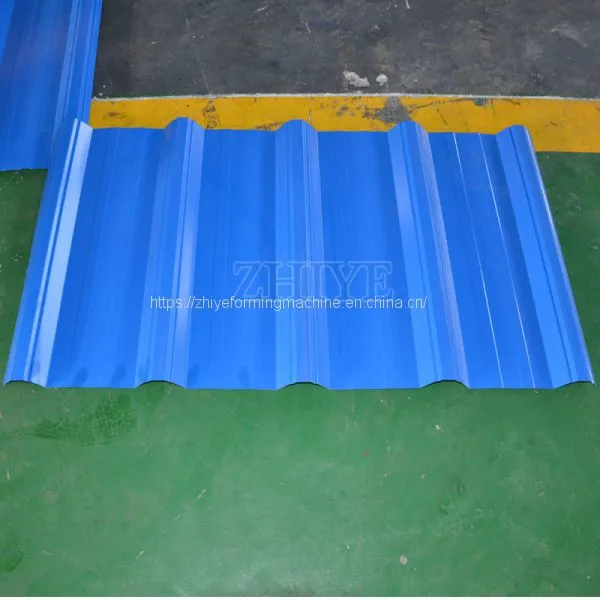

This machine can be used as the tool which can product the roof tile and wall panel outside of building. It contains several colors especially red,yellow and blue,etc.
Our products are widely used in various industrial factory, beauty spot, holiday village building,hotel, exhibition,easy steel building manufacturing,and have features such as nice appearance and durable.
Within in one year if any parts go broken we will send new ones to replace for free,after the warranty period,we will help you repair the machine,you only responsible for the labour and parts if the machine have some problems.
Cangzhou Zhiye Cold Forming Machinery Co.,Ltd has been entitled with the “key private enterprise” by the local government and over the years, we have been dedicated to the research & development as well as the fabrication of the forming machines of metallic plate cold bending roller. Our products include glazed roofing tile roll forming line,corrugated roofing sheet roll forming machine, trapezoidal roof panel roll forming machine, light steel frame rolling forming machine and roller door shutter roll forming machine ,etc.
