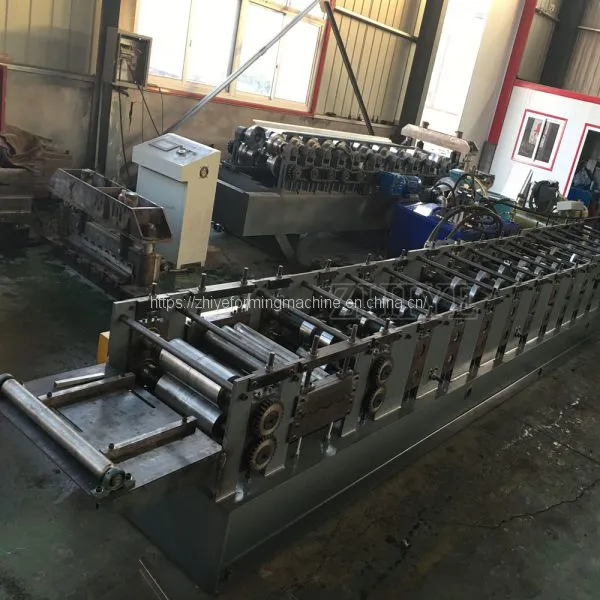

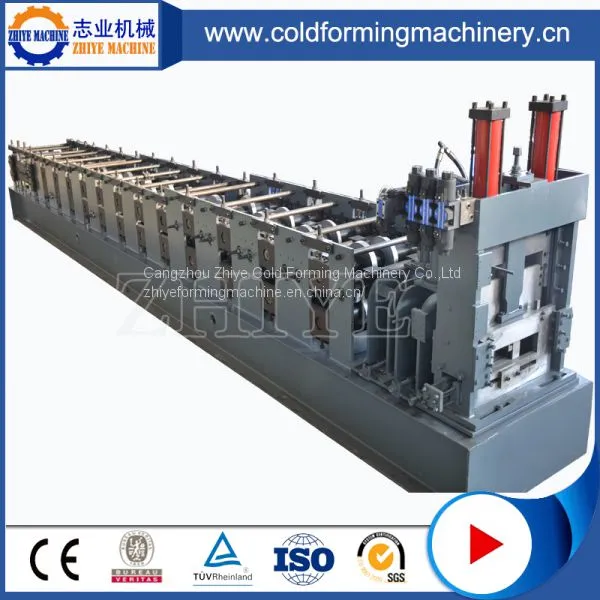

C Purlin Roll Forming With Punching Machine

                         C-Purlin Forming Machinery

 C-shaped purlin is good in bending resistance, straightness, and it can cut, punch automatically, it is very easy and convenient to use. It can be used as bearing structure in big and medium sized building, such as factories, warehouses, garages, hangars, gyms, exhibitions, theater and so on.

Technical parameter of product line

Applied plank stuff:color armor plate

Applied slab thickness:1.8mm-3.5mm

Line speed:16-18m/min

Roll diameter:80mm

Hydraulic automatic uncoile

Dimension:11.5m*1.9m*1.4m

Weight:5t

Power:4kw

Hydraulic station power:4kw

Processing flow:

decoiling----loading----molding----cutting----off-discharging

Equipment parts

steel strip supporting frame

Feeding platform

Automatic shearing system

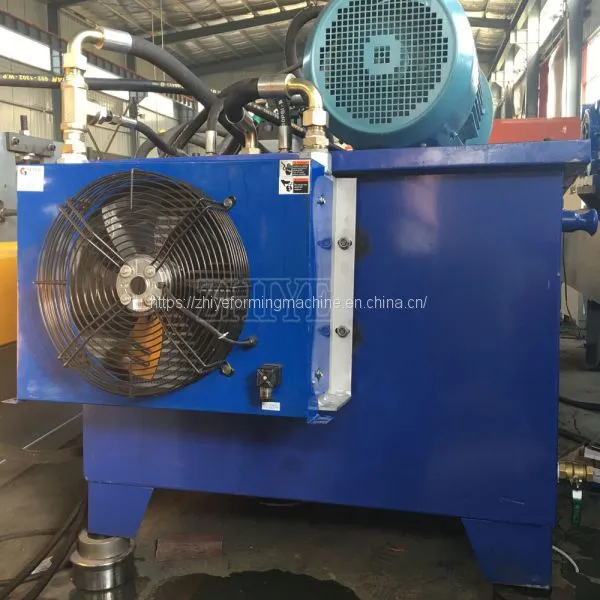

Hydraulic system
Steel strip unfolding system

Computer control system (imported computer)

High-precision automatic counter

Receiving table

Optional equipment

Hydraulic automatic uncoiler

Working space and workman for the equipment：

1. Ground-level land

2. ≥5T overhead travelling crane

3. Space for storing the material

4. Space for laying the machine

5. Road for vehicle moving

6. Workman: 2, operator and porter
