Sandwich Panel Forming Machine

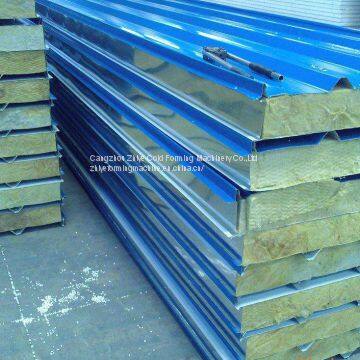

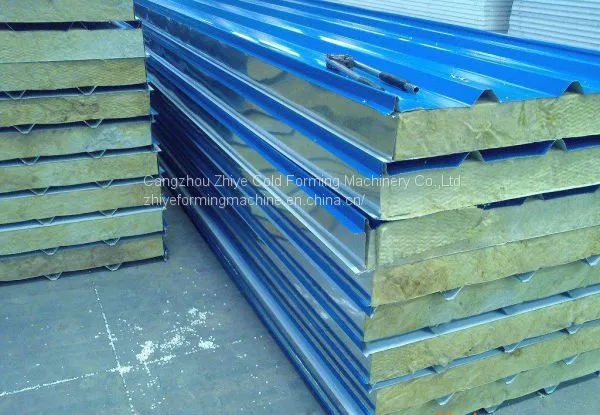

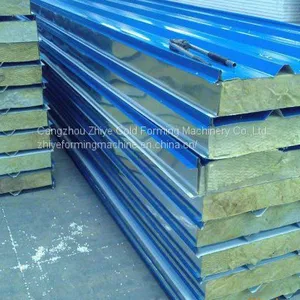

 This line can be set according to customers" need, length is positioning controlled by computer. It can be exactly positioned, and shown timed on the touchscreen, as well as automatically count and revise. This line suitable to process outer side of sandwich panel, materials sheet are colored steel sheet, aluminium steel sheet, stainless steel sheet and so on. The inner side materials are flame retardant EPS, rock wool and so on.

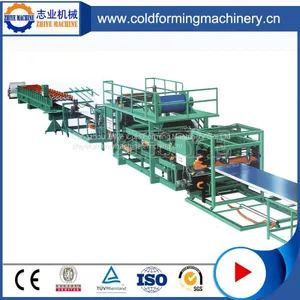

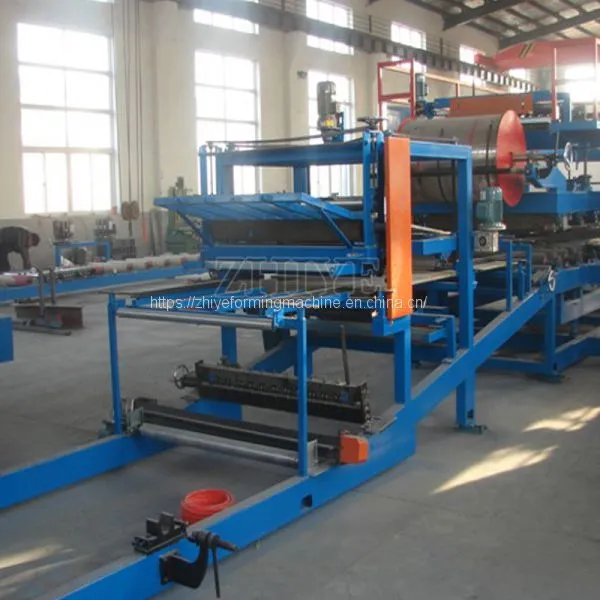

Multifunctional colored steel sandwich panel producing line

  This line adopts advanced technique, which integrates gas, electricity and machinery, and this line is the special equipment for processing colored steel sandwich panel. Its working speed can be adjusted by

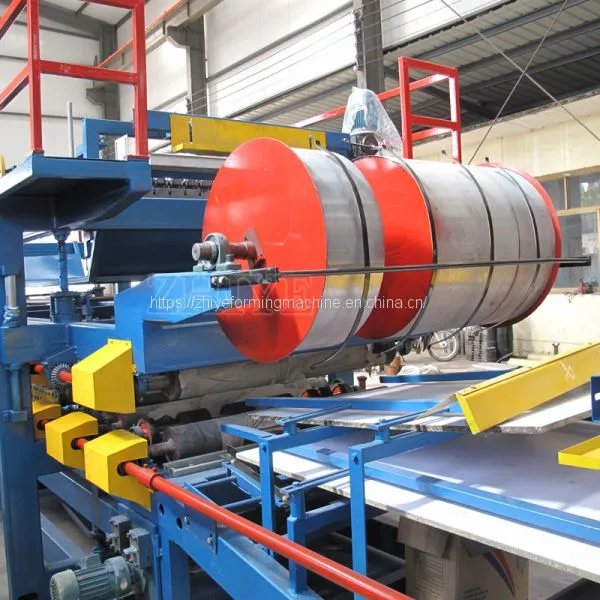

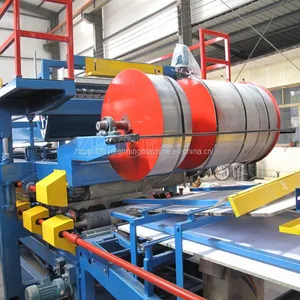

frequency converter, and it can process sandwich panel at one time. The whole line consists of decoiler,

molding core, compound part(knocking our the groove, glue instillment, heating, compound, rolling, grooving, finishing, air-powered, automatically cutting). It is a necessary equipment for producing industries factories, roof tile and wall panel of warehouse.

Technique parameter:

Voltage: 380V/50-60Hz

Power: 32kw

Productivity: 0-4m/min

Material with:1000mm, 1200mm

Material thickness: 50-250mm

Annual output: 600,000m2

Beading Equipment     Speed:10m/min

                      Power:2.2kw or according to the profile

                      Diameter of roller:according to the profile

                      Power supply:motor

                      Material of roller:l 40Cr quenched and tempered, chrome

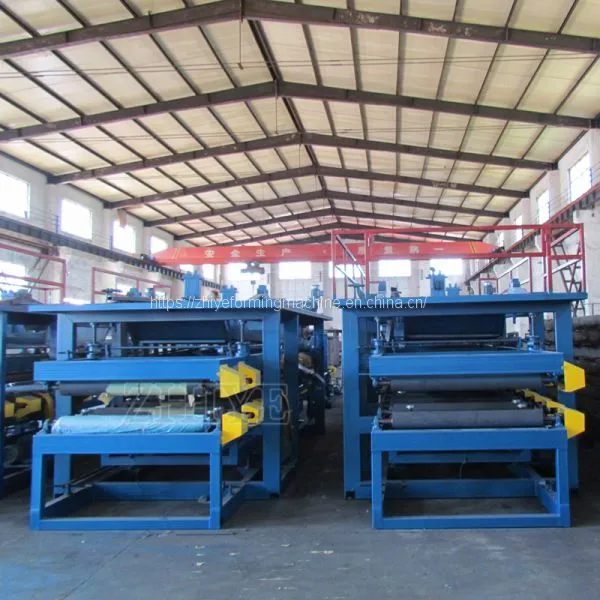

Roll forming

Frame:Cantilever structure

Speed:10m/min

Power:4kw up, 7.5kw down

Shaft diameter:50 mm

Distance roller head:350mm

Rollers: 11 up, 18 down

Rock wool delivery device

Motor Power:2*1.5Kw

Speed:8m/min

The maximum transport width:1200mm

Dispensing Systems

Effective volume:150L

Unit motor power:10KW

Roll forming  machine

Length:10mm

Width:1200mm

Lifting speed:200mm/min

Drive motor power:2.2Kw*4

Lifting motor power:1.5Kw*4

Speed:10 m/min

Tank with Stirrer

Effective volume:150L

Unit motor power:10KW

Cutting part

Cutting motor power:7.5Kw

Lateral movement motor power:1.1 KW

Traversing speed:150 mm/s

Cutting width:1300 mm

Cutting error:±2mm

PLC control system

In accordance with international standards to

control cabinet,operating station.Mitsubishi PLC,

Inovance inverter
