Help CenterHZS180 Concrete Batching Plant
Related Products
Introduction

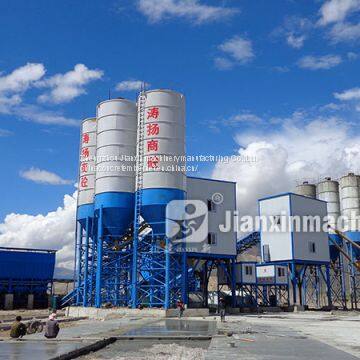

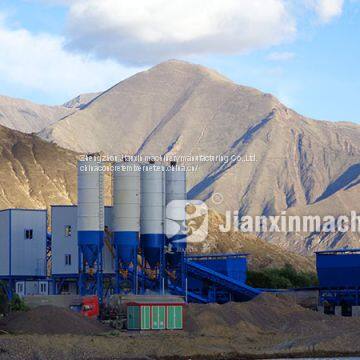

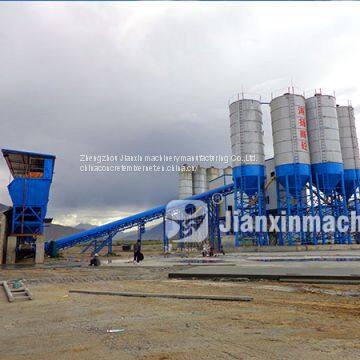

Jianxin HZS180 concrete batching plant is equipped with computer management system and automatic control system , developed by our company, whose operation is easy and convenient, adopting Windows2000 system, full Chinese menu, whole process simulation of each equipment state and sound-light alarm. During working of the batching plant, the whole working process is controlled by computer only after operating a little of buttons. Adopt JS3000 forced double-horizontal-shaft mixer and imported electric elements.
The key technology advantages of HZS180 lie in the Jianxin’s persistent pursuit of reasonable process, stable performance and impressive structure. There are high-capacity sand and stone silo on the top of the building and the concrete production is wholly closed from weighing to stirring and discharging.
Performance and characteristics
1. It is the concrete mixing building (station) with the concept of high-quality, energy savings, waste recycling and environmental protection, providing a strong support for the green high performing concrete production.

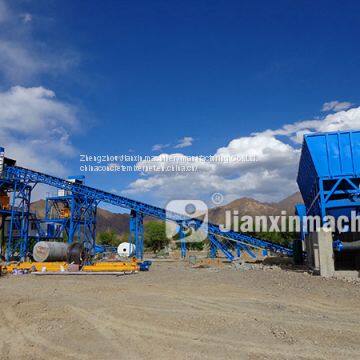

2. Closed environment-friendly sand and gravel weighing and conveying systems minimize the noise pollution
3. Negative-pressure pulse bag dust collector solves the flying dust and pollution problem, protecting environment with the efficient energy application.
4. Wet concrete separation and recovery equipment is laid out as a closed system of sewage disposal and sand/gravel recovery to recycle slurry and waste, reaching the zero-emission and minimizing environmental pollution for the purposed of energy savings and environment-friendly production.
5.Two options of fully automatic control and manual control can be carried out with easy operation, friendly interface, high reliability and flexible extension.
Model |
HZS180 |
Theoretical productivity |
180m³/h |
Mixer type |
JS3000 |
Control |
Fully automatic central control |
Maximum aggregate diameter |
80mm |
Aggregate hoppper volume |
4x18m³ |
Aggregate feeding method |
Belt conveyor |
Cement silo (optional) |
Required on clients' demand |
Cement screw conveyor (optional) |
Each cement silo with one φ325 screw |
Aggregate weighing range and accuracy |
4000kg±2% |
Cement weighing range and accuaracy |
1800kg±1% |
Fly ash weighing range and accuracy |
800kg±1% |
Water weighing range and accuracy |
800kg±1% |
Additive weighing range and accuracy |
50kg±1% |
Send Inquiry to This Supplier
