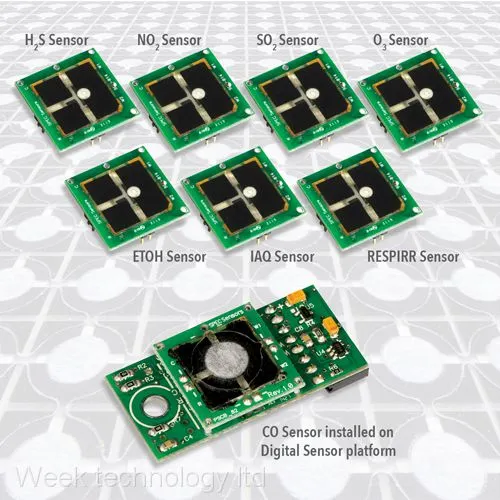

DGSDK Digital Gas Sensor Developer Kit 968-032 DESCRIPTION
SPEC Sensors is making it easy for Internet of Things developers to integrate gas sensing in their products. Carbon Monoxide Alarms, Air Pollution Monitoring, Indoor Air Quality, and Breath Analysis are some of the gas sensing applications that demand high performance measurement. Electrochemical gas sensing technology is the preferred solution for these applications due to measurement performance and the ultra-low power consumption needed for battery operation.
SPEC Sensors has overcome the physical size and mass market volume limitations that have constrained market adoption of electrochemical gas sensing in consumer products. The Digital Gas Sensor Developer Kit will allow OEMs to quickly integrate gas sensing into their application(s).

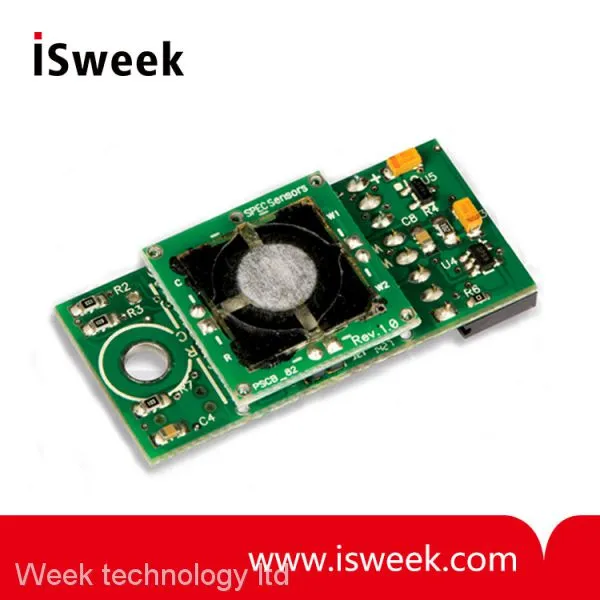

DIGITAL GAS SENSOR PLATFORM
• Works with 3V supply
• Low power: 1 mW @1 minute sampling
• Outputs
o Temperature
o Relative Humidity
o Gas Concentration
• Simple digital UART Interface
• ROHS compliant
• Small form Factor (0.8 x 1.75 x 0.35”)
• Lightweight (
DGSDK Digital Gas Sensor Developer Kit 968-032 APPLICATIONS
• Carbon monoxide safety alarms
• Air pollution monitoring
• Indoor air quality
• Breath analysis
DGSDK Digital Gas Sensor Developer Kit 968-032 MEASUREMENT PERFORMANCE CHARACTERISTICS
Gas |
Range |
Resolution (1) |
Carbon Monoxide - CO |
1000 ppm |
100 ppb |
Hydrogen Sulfide - H2S |
10 ppm |
10 ppb |
Nitrogen Dioxide - NO2 |
10 ppm |
20 ppb |
Sulfur Dioxide - SO2 |
20 ppm |
50 ppb |
Ozone - O3 |
20 ppm |
20 ppb |
Ethanol - ETOH |
800 ppm |
300 ppb |
Indoor Air Quality (combustion) |
400 ppm (CO equivalent) |
100 ppb |
Respiratory Irritants |
20 ppm (NO2 equivalent) |
20 ppb |
NOTE 1: Based on Standard Deviation of noise at 0 ppm, 1 Hz measurement 60 second averaging
| Based on Standard Conditions 25º C, 50% RH and 1 atm | |
| Measurement Accuracy |
15% of reading |
| Measurement Repeatability |
± 3 % of reading |
| Recommended Warm-Up Time |
60 minutes from power applied to USB port |
| Power Consumption |
1 mW for 1 minute triggered samples 12 mW for continuous sampling 5, 10 30, 60 second intervals |
| Expected Operating Life |
> 5 years (10 years @ 25 ± 10C; 60 ± 30% RH) |
| Operating Temperature Range |
-20 to 40 C (-30 to 55C intermittent) |
| Operating Humidity Range |
15 to 95% (0 to 100% non-condensing intermittent) |
| Mechanical Dimensions |
1.75 x 0.82 x 0.35 in. (44.5 x 20.8 x 8.9 mm) |
| Weight |
|
