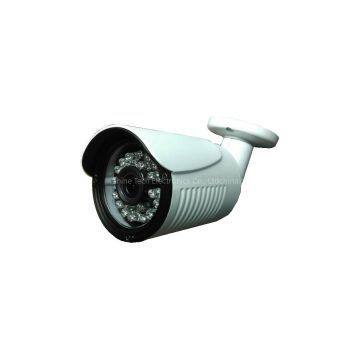

Bullet Waterproof IR Camera (SSV-AHD-602S22)

Model : SSV-AHD-602S22

Image Sensor : 1/2.8”Sony CMOS sensor, 2MP (IMX 322)

Resolution : 1920(H)x 1080(V) @ 30FPS

LENS : Board Lens 3.6mm / F1.8

Effective Pixels         : Approx. 2.0M pixels

Video Standard : PAL/ NTSC

Day/Night Mode : Auto／Color／B&W

Back LightCompensation(BLC) : AUTO

Auto WhiteBalance(AWB) : AUTO

Synchronization : Internal

Scanning System : 2:1Interlace

S/N Ratio : ≥ 80dB (AGC OFF)

Auto ElectricShutter(AES) : Auto /1/50 (1/60) ~1/100,000 Sec.

Min. Illumination: 0.01 Lux (F2.0, AGC ON)

Video Output   : AHD Video & Analog Video Switchable

IR Cut  : Yes

Video Storage  : 1H ≈ 1.506GB

Video Output   : 1.0 Vp-p / 75 ohm composite

IR CoverageDistance : 20~25 Meter

TransmissionDistance : 300 / 500 Meter over Coaxial Cable

200 Meter overTwisted pair Cable

OSD Menu : Multi-LanguagesOSD Setup Menu

IR-LED : 36 x IR-LEDs

IR-LED Wavelength : 850 nm

OperationEnvironment   : -20°C〜+50°C / 85％RH

Power : DC 12V ±10%

Power Consumption: IR OFF 10 mA (Max) / IR ON 400mA (Max)

Construction    : Aluminum

Dimension : 82mm(W)x 80mm(H) x 190(L)

Net Weight : About680g

Note :Specifications are subjected to change without notice
