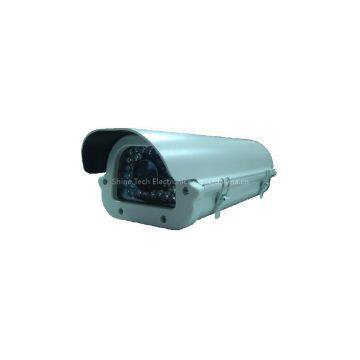

IR Camera (SSV-TVI-1012S22V12)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | SSV-TVI-1012S22V12 |
Product Description
Model : SSV-TVI-1012S22V12
Image Sensor : 1/2.8” Sony CMOS sensor, 2MP(IMX 322)
Resolution : 1920(H) x 1080(V) @ 25/30FPS
LENS : 2.8~12mm Megapixel Lens
Effective Pixels : Approx. 2.0M pixels
Video Standard : PAL / NTSC
Day/Night Mode : Auto／Color／B&W
Back Light Compensation(BLC) : AUTO
Auto White Balance(AWB) : AUTO
Synchronization : Internal
Scanning System : 2:1 Interlace
S/N Ratio : ≥ 80dB (AGC OFF)
Auto Electric Shutter(AES) : Auto /1/50(1/60) ~1/100,000 Sec.
Min. Illumination : 0.01 Lux (F2.0, AGC ON)
Video Output : HD-TVI Video
IR Cut : Yes
Video Storage : 1H ≈ 1.506GB
Video Output : 1.0 Vp-p / 75 ohm composite
IR Coverage Distance : 50~60 Meter
Transmission Distance : 300 / 500 Meterover Coaxial Cable
300 Meter over Twisted pair Cable
OSD Menu : Multi-Languages OSD Setup Menu
IR-LED : 35*∮8 IR-LEDs
IR-LED Wavelength : 850 nm
Operation Environment : -20°C〜+50°C / 85％RH
Power : DC 12V / 2A
Construction : Aluminum
Dimension : 140mm(W) x 100mm(H) x 400mm(L)
Net Weight : 1350g
Note : Specifications are subjected tochange without notice
