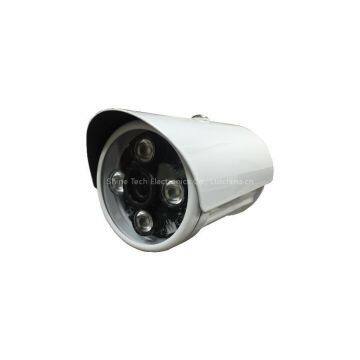

IP Camera (SSV-IP601-13B/SSV-IP601-20B)

Model : SSV-IP775-13B  /  SSV-IP775-20B

System : Embedded RTOS, dual-core 32bit DSP

Image Sensor : Aptina CMOS  /  SONYCMOS

Minimum illumination : Color: 0.01Lux/F1.2，B/W: 0.001Lux/F1.2

Lens (Optional) : Standard: 3MP 4.0mm

IR (Distance) : 6 array IR LEDs, 35~40M

Video Compression : H.264 dual-stream, AVI format, stream 1~6M/ 1~30fps adjustable

Main Stream : 1280x960/1280x720  /  1920x1080/1280x720

Sub Stream : 704x576

Day/Night Mode : ICR automatic switch

Audio Compression : G711a

Audio Input      :Support

Audio Output   : Support

Network Port   : RJ45 Port, 10/100M

Network Protocol    : RTSP/FTP/PPPoE/DHCP/DDNS/NTP/UPnP

USB Port  :Support USB 3G/WiFi device

Auto-Iris  :N/A

Photoresist Port : Support IR-Cut drive

PTZ Port   :N/A

CVBS Output : N/A

Alarm In/Out : N/A

ONVIF Protocol : Support ONVIF protocol

POE : Optional

Operating Temperature : -100C~600C

Waterproof : IP66

Power Supply : DC12V±10%

Dimensions : Φ85x140 mm

Weight : 750g
