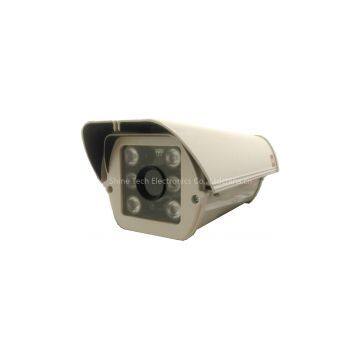

IR Camera (SSV-TVI-1016S22V60)

Model : SSV-TVI-1016S22V60

Image Sensor : 1/2.8” Sony CMOS sensor, 2MP(IMX 322)

Resolution : 1920(H) x 1080(V) @ 25/30FPS

LENS : 6.0~60mm Megapixel Lens

Effective Pixels : Approx. 2.0M pixels

Video Standard : PAL / NTSC

Day/Night Mode : Auto／Color／B&W

Back Light Compensation(BLC) : AUTO

Auto White Balance(AWB) : AUTO

Synchronization : Internal

Scanning System : 2:1 Interlace

S/N Ratio : ≥ 80dB (AGC OFF)

Auto Electric Shutter(AES) : Auto /1/50(1/60) ~1/100,000 Sec.

Min. Illumination : 0.01 Lux (F2.0, AGC ON)

Video Output : HD-TVI Video

IR Cut : Yes

Video Storage : 1H ≈ 1.506GB

Video Output : 1.0 Vp-p / 75 ohm composite

IR Coverage Distance : 75~80 Meter

Transmission Distance : 300 / 500 Meterover Coaxial Cable

300 Meter over Twisted pair Cable

OSD Menu : Multi-Languages OSD Setup Menu

IR-LED : 6*1.4W IR-LED Array

IR-LED Wavelength : 850 nm

Operation Environment : -20°C〜+50°C / 85％RH

Power : DC 12V (Optional with AC96V~AC240Vpower)

Construction : Aluminum

Dimension : 135mm(W) x 106mm(H) x 316mm(L)

Net Weight : 1350g

Note : Specifications are subjected tochange without notice
