Home > Products > New product > U100BP Toughened glass suspension insulator of fog type

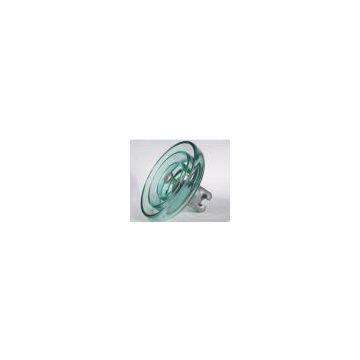

U100BP Toughened glass suspension insulator of fog type
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Kaisheng | Place of Origin | China | |
| Model Number | U100B |
Product Description
U100BP specification
|
Insultaion class |
U100BP/146H |
U100BP/146H |
U100BP/146H |
|
diameter |
260mm |
280mm |
320mm |
|
spacing |
146mm |
146mm |
146mm |
|
creepage |
400mm |
450mm |
550mm |
|
socket soupling |
16mm |
16mm |
16mm |
|
mechanical failing load |
100KN |
100KN |
100KN |
|
mechanical routine test |
50KN |
50KN |
50KN |
|
wet power frequency withstand voltage |
45KV |
50KV |
55KV |
|
dry lightning impulse withstand voltage |
110KV |
125KV |
140KV |
|
impulse puncture voltage |
2.8P.U |
2.8P.U |
2.8P.U |
|
power frequency puncture voltage |
130KV |
130KV |
130KV |
|
radio influence voltage |
50uV |
50uV |
50uV |
|
corona visaual test |
18/22KV |
18/22KV |
18/22KV |
|
power frequency electric arc voltage |
0.12s/20KA |
0.12s/20KA |
0.12s/20KA |
|
net weight per unit |
5.4kg |
5.8kg |
9.2kg |
