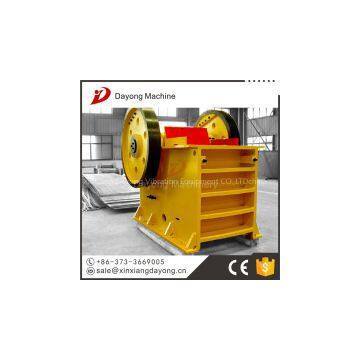

Jaw Crusher

Features of jaw crusher:

1 . Crushing chamber depth and no dead zone, increased capacity and output feed
2 .Big crushing ratio, uniform particle size.
3 .Gasket nesting population adjustment device, reliable and convenient,big adjustment range, increase the flexibility of the device.
4 . Lubrication system safe and reliable, easy to replace parts, maintenance workload is small.
5 .Simple structure, reliable operation, low operating costs.
6 .Energy-saving equipment: single machine energy saving 15% ~ 30%,the system energy saving more than double
7. Nesting population has big adjustment range, to meet the requirements of different users .
8 . Low noise, little dust.
The advantages of our jaw crusher:
1. superior quality
2. reasonable price
3. one year guarantee
4. our engineer guiding for installation on site for free
5. our after-sale service team act immediately on receiving your reports
6. providing high quality spare parts with low prices in order to appreciate your trust on our factory

Working principle of jaw crusher:

This crusher adopts the electric motor as the power. The eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw following the preconcerted path to crush the feeding material. Thus the material will be crushed in the crushing chamber which is composed of the stationary jaw plate, swing jaw plate and the liner plate. The material is discharged from the lower part of machine that is what you want. The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher. The moving jaw crushes the materials periodically, which ensures the continuous production.

Application Scope of iaw crusher:

Jaw crusher is mainly used in crushing for all kinds of ores and block materials of medium size and widely used in mineral, metallurgy, building materials, road, railway, water conservancy and hydroelectric power, chemical industries. The highest compressive strength of crushed materials is 320MPa.

Technical parameters

Model             Feed Opening (mm)     Max. Feed Size (mm)     Capacity (t/h)     Power Consumption (kw)     Discharge Opening (mm)     Overall Dimension (L x W x H)(mm)
PE-150×250       150×250                    125                 1-5             5.5                    10-40                      758×758×794
PE-250×400       250×400                    210                 5-20             15                    20-60                     1500×1400×900
PE-400×600       400×600                    340                16-65             30                   40-100                     1700×1800×1600
PE-500×750       500×750                    425                50-100             55                   50-100                     1890×1940×1870
PE-600×900       600×900                    500                50-120             55                   65-160                     2395×1843×2230
