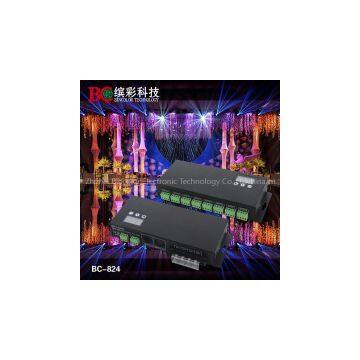

24CH DMX512 Decoder

FOB Price

US$ 1 - 1 / Kilogram

1 Kilogram(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	bincolor		Place of Origin	China
Model Number	BC-824

Product Description

BC-824 DMX decoder works to convert universal DMX512/1990 digital signal to PWM signal to drive LED, Which controlled by DMX512 console, with 4096 levels grey scale output per channel. Realize 0-100% brightness or various changing effect. And can control single color, RGB LED lights

1. Special L-PWM program technology, with more functions.

2. 24 output channels, which can connect signal color or RGB full-color lamps

3. 0-100% smooth brightness adjusting, 4096 grey steps per channel

4. Universal standard DMX512 input protocol, addresses can be set up by DIP switch.

5. Working voltage from DC5V~DC24V

6. With 10 auto testing modes and 8 speed adjusting modes.

Product Parameter

Input voltage	DC5V~DC24V
Max load current	3A/CH×24
Max output power	360W(5V)/860W(12V)/1720W(24V )
Output Scale level	4096 levels
Input signal	DMX512/1990
Output DMX Channel	24Ch PWM
working temperature	-30℃~65℃
Dimension	L260×W110×H40mm
Package Size	L270×W115×H45mm
Weight (G.W)	920g

PLEASE CONTACT US FOR MORE DETAILS!
