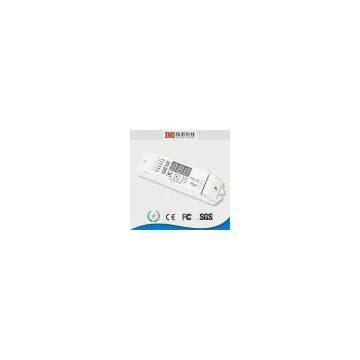

BC-831 MONO DMX512 Dimmer

BINCOLOR BC-831 MONO DMX512 dimmer which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. one channel output, max 10A output each channel, 4096 Grey Scales. It can be used as DMX512 master or as DMX decoder to connect computerized digital output consol with analog silicon case and controls LED lamps of architecture and lighting.

Feature function:

1. Automatically adapt input voltage DC12V-24V.

2. Input standard DMX512 signal; 3-digital-display shows DMX address code.

3. 1 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.

4.DMX Master mode, Slave mode available.

5.30 changing modes and 10 speed scales in master mode.

6.Indicator of the DMX512 signal receiving status.

7. Wrong wiring protection at DMX input port; Over current protection and short circuit protection.

8. Power loss memory function.

Product parameter：

Model

BC-831 MONO DMX512 dimmer

Input voltage

DC12V-DC24V

Max load current

1CH×10A

Max Output Power

120W(12V)/240W(24V)

Grey Scale

4096 levels×1

Input Signal

DMX512/1990

Output Signal

Constant Voltage PWM

Decode Channel

1CH

DMX512 socket

Terminal Block

Dimension

L176×W46×H30(mm)

Weight (G.W)

168g

This item has 1ch,3ch,and 4ch, welcome to contact us!
