V Guides Conveyor Belt Size Design For Better Belt Tracking
Negotiable
MOQ: 1 Roll (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
XINBEX
Place of Origin:
China
Material:
Polyester
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2mm Ply Green Conveyor Belt Smooth PVC Top Fabric Rough Bottom PB-G20NegotiableMOQ: 1 Roll -
PVC Black Treadmill Running Conveyor Belts Golf/Diamond With Low Noise PBF-B24/NNegotiableMOQ: 1 Roll
-
5mm Rough Top Green PVC Conveyor Belting For Incline Conveying Loading PB-G50/DNegotiableMOQ: 1 Roll
-
4.8mm PVC White Saw Tooth Types Small Conveyor Belt Factory For Inclined Belt Conveyor Design PB-W48/HNegotiableMOQ: 1 Roll
-
3mm Matt PVC Black Flat Conveyor Belt For Printing Blankets/Airport LogisticNegotiableMOQ: 1 Roll
Brand Name
XINBEX
Place of Origin
China
Material
Polyester
After-sales Service Provided
Overseas third-party support available
Structure
Belt Conveyor
Condition
New

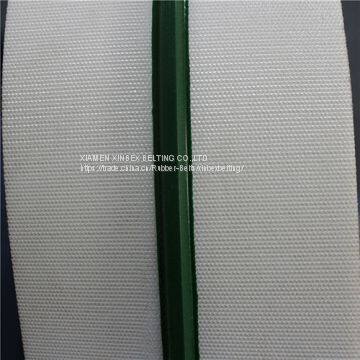

Hee conveyor belt v guides conveyor belt size design for better belt tracking PB-G20 is made of pvc material, glued with v guides, to make sure the belt under the right running track.
Specification of Conveyor Belt | ||
XINBEX BELT is a professional manufacturer for conveyor belt in China from 1998, we are not only produce roll material, but also customize the size according to requirements. | ||
Top Cover |
Material |
PVC |
Color |
Green |
|
Thickness |
2.0mm |
|
Pattern |
Smooth, Shiny |
|
Hardness |
60 °shA |
|
Bottom Cover |
Color |
White |
Pattern |
Fabric texture |
|
Working Temperature |
-10/+80 ºC |
|
No. of Plies |
2 |
|
Belt Thickness |
2mm |
|
Weight |
2.2 kg/m² |
|
Breaking Load |
≥120 N/mm |
|
Working Load at 1% Elongation |
≥8 N/mm |
|
Minimum Pulley Diameter |
40mm |
|
Max Roll Width |
3600mm |
|
