Home > Industrial Equipment & Components > Conveyor & Parts > Conveyor Belt > Rubber Conveyor Belting Material Suppliers Good Qualiy And Price For Carton Conveying Production Line NCE-U74/4D(AB)
Rubber Conveyor Belting Material Suppliers Good Qualiy And Price For Carton Conveying Production Line NCE-U74/4D(AB)
Negotiable
MOQ: 1 Roll (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
XINBEX
Place of Origin:
China
Model Number:
NCE-U74/4D
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3mm Green PVC Conveyor Belt Smooth Shiny Design With Cleats For Agricultural Elevator Conveying PB-G30NegotiableMOQ: 1 Roll -
Customized Global Sidewall Conveyor Belt Line Glue With Cleats PB-W30NegotiableMOQ: 1 Roll
-
PVC White Special Chevron Conveyor Belt With Sliding Guides Inclined ConveyingNegotiableMOQ: 1 Roll
-
V Guides Conveyor Belt Size Design For Better Belt TrackingNegotiableMOQ: 1 Roll
-
V Guides Conveyor Belt Size Design For Better Belt TrackingNegotiableMOQ: 1 Roll
Brand Name
XINBEX
Place of Origin
China
Model Number
NCE-U74/4D

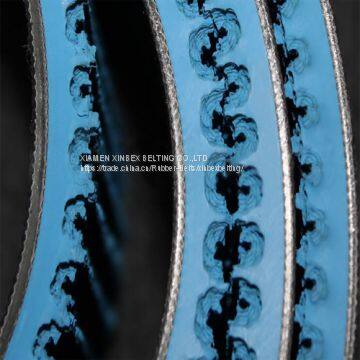

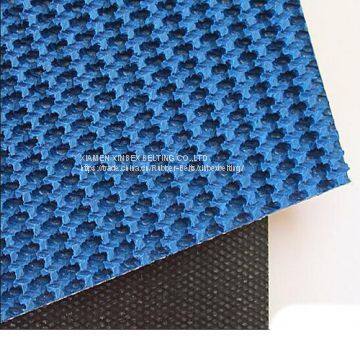

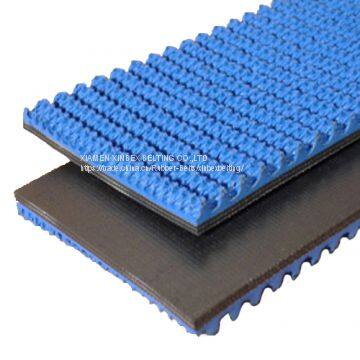

XINBEX rubber conveyor belting material suppliers good qualiy and price for carton conveying production line NCE-U74/4D(AB) is made of rubber material, rough top surface, widely use in corrugate paper/carton/box folder production line.
Specification of Conveyor Belt | ||
XINBEX BELT is a professional manufacturer for conveyor belt in China from 1998, we are not only produce roll material, but also customize the size according to requirements. | ||
Top Cover |
Material |
Rubber |
Color |
Blue |
|
Thickness |
7.4mm |
|
Pattern |
Rough top |
|
Hardness |
80 °shA |
|
Bottom Cover |
Color |
Black |
Pattern |
Plain |
|
Working Temperature |
-10/+90 ºC |
|
No. of Plies |
3 |
|
Belt Thickness |
7.4mm |
|
Weight |
6.46kg/m² |
|
Breaking Load |
≥150 N/mm |
|
Working Load at 1% Elongation |
≥10 N/mm |
|
Minimum Pulley Diameter |
100mm |
|
Max Roll Width |
1800mm |
|
