Customized Global Sidewall Conveyor Belt Line Glue With Cleats PB-W30
Negotiable
MOQ: 1 Roll (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
XINBEX
Place of Origin:
China
Material:
Polyester
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PVC White Special Chevron Conveyor Belt With Sliding Guides Inclined ConveyingNegotiableMOQ: 1 Roll -
PU Blue Food Grade 2ply Standards Conveyor Belt Factory/Suppliers/DistributorNegotiableMOQ: 1 Roll
-
V Guides Conveyor Belt Size Design For Better Belt TrackingNegotiableMOQ: 1 Roll
-
V Guides Conveyor Belt Size Design For Better Belt TrackingNegotiableMOQ: 1 Roll
-
High Speed Nylon Sandwich Flat Power Rubber Transmission Belts Design Type Yellow/GreenNegotiableMOQ: 1 Roll
Brand Name
XINBEX
Place of Origin
China
Material
Polyester
After-sales Service Provided
No overseas service provided
Structure
Belt Conveyor
Condition
New
Material Feature
Oil Resistant

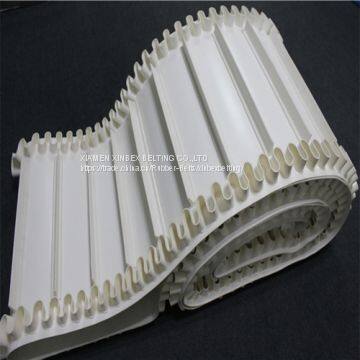

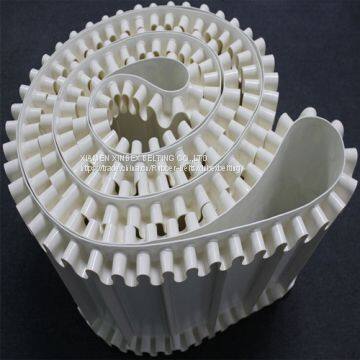

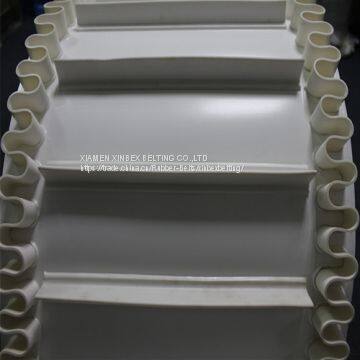

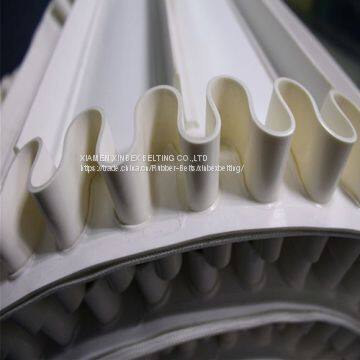

XINBEX conveyor belt customized global sidewall conveyor belt line glue with cleats PB-W30 is made of pvc material, smooth surface, glued with sidewall and cleats, its better for inclining conveying
Specification of Conveyor Belt | ||
XINBEX BELT is a professional manufacturer for conveyor belt in China from 1998, we are not only produce roll material, but also customize the size according to requirements. | ||
Top Cover |
Material |
PVC |
Color |
White |
|
Thickness |
3.0mm |
|
Pattern |
Smooth belt with cleats |
|
Hardness |
60 °shA |
|
Bottom Cover |
Color |
White |
Pattern |
Fabric texture |
|
Working Temperature |
-10/+80 ºC |
|
No. of Plies |
2 |
|
Belt Thickness |
3.0mm |
|
Weight |
3.5 kg/m² |
|
Breaking Load |
≥120 N/mm |
|
Working Load at 1% Elongation |
≥10 N/mm |
|
Minimum Pulley Diameter |
60mm |
|
Max Roll Width |
3600mm |
|
