Help CenterCarbon Steel Laser Cutting Machine
Related Products
GJMSJG-8060 DT Lamp Pump High Precision Laser Cutting Machine
Advantages
Precise ball screw and servo motor.
High precision cutting.
Large format working area.
Multi-workpiece cutting. (Workpieces moving via cross slide working table.)
Data transfer via USB/network. (no required computer)
(We also have CO2 Laser to cut metal.)
Machine Features
This working area is suitable for processing large-size sheet metal.
High precise ball screw driving system and LCD display offline system, achieves perfect sheet metal laser cutting solutions.
If equipped rotary attachment, it can cut various shapes for metal pipes.
Application Field

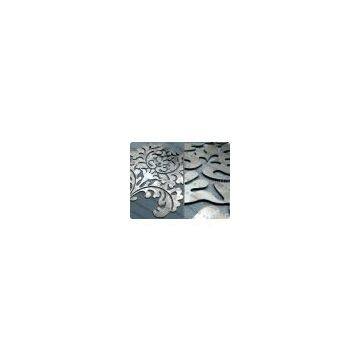

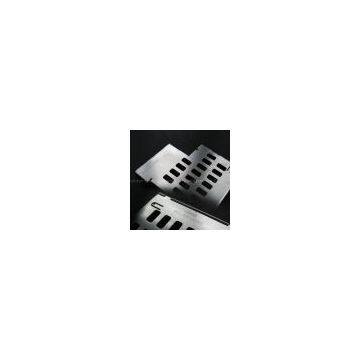

Suitable for precision cutting all kinds of metal sheets, such as carbon steel, mild steel, stainless steel, alloy steel, brass, silver, gold, aluminum and alloys, copper and alloys, titanium and alloys, nickel-molybdenum alloys, etc.
Technical Parameter
Laser type YAG Lamp Pump Solid State Laser
Laser power 500W
Cutting area 600mm×800mm
Working table Net saw-teeth work table
No load max speed 0-30000mm/min
Repeating location accuracy ±0.15mm
Motion system offline CNC system, servo motor, precision ball screw drive
Cooling system 18KW constant temperature water chiller
Power supply Three phase 380V 50/60Hz
Format support PLT, DXF, BMP, AI, DST, etc.
Standard collocation Following focus, 1.1KW bottom exhaust
Optional collocation 650W lamp pump laser tube
