GJMSJG-6040 DT YAG Solid Lamp Pump Laser Cutting Machine
Advantages
Precise ballscrew and servo motor.
High precision cutting.
Large format working area.
Multi-workpiece cutting. (Workpieces moving via cross slide working table.)
Data transfer via USB/network. (no required computer)
(We also have CO2 Laser to cut metal.)
Machine Features
Optimized YAG lamp-pump solid laser source.
Servo motor motion system and high precision ball screw drive, ensuring high cutting precision. Dentate stripe working table is suitable for holding different kinds of metal plates.
Slide cross working table, greatly guarantees processing area as well as improves working efficiency.
Application Field

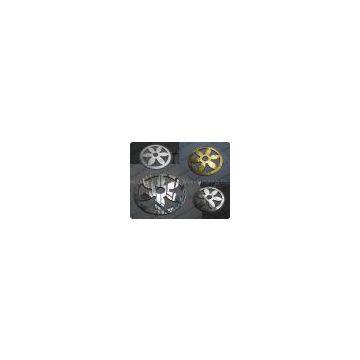

Suitable for precision cutting all kinds of metal sheets, such as carbon steel, mild steel, stainless steel, alloy steel, brass, silver, gold, aluminum and alloys, copper and alloys, titanium and alloys, nickel-molybdenum alloys, etc.
Technical Parameter
Laser type lamp pump YAG solid state laser
Laser power 500W
Working area 600mm×400mm
(600mm×800mm / 1300mm×900mm / 1300×2500mm / 1500×3000mm Optional)
Working table Strip panel working table
No-load max speed 0-9000mm/min
Repeating location accuracy ±0.1mm
Motion control system Offline servo control system, lead screw driving
Cooling system 18KW constant temperature water-chiller
Supporting format PLT, DXF, AI, etc.
Power supply AC380V ± 5%/50/60Hz
Standard collocation Following focusing system, one set of 550W bottom exhaust fan
Optional collocation 650W Diode side-pump laser tube, automatic control high pressure blower valve, rotary system
