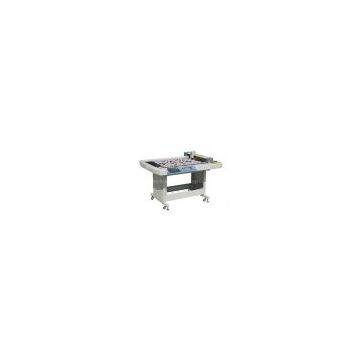

Ruizhou high-speed pattern cutting machine is specially developed cutting solution for footwear and garment industry. Introducing vacuum suction technology, it is able to create accurate footwear and garment patterns on standard pattern paper, cardboard, or PVC sheet.
FEATURES:
1. Application of self-developed built-in digital control system, imported American CPU and precise electronic components reach the technologically leading level at home and abroad in stability and operability.
2. Joint use of imported linear tracks and synchronous belt in the machine makes the cutting precision up to the zero error of shuttle origin completely.
3. Touch control LCD display and digital control interface facilitate operation.
4. Standard I/O interface and HP-GL and GP-GL format; cutting speed of 80-120cm/s.
5. Exceptional form-feed cutting function from the home-made cutting machine.
6. Connectible to random CAD software, it is widely used in such industries as apparel, shoe-making, suitcases, bags and lamps.
TECHNICAL PARAMETERS
Available Model: RZCUT-0906, RZCUT-1209, RZCUT-1509, RZCUT-1512
Cutting Area: 910*620mm, 1200*920mm, 1500*920mm, 1500*1200mm
Working Character: The computer operation and the machine work concurrently; the speed of data transmission is fast and it can be stored and re-used.
Cutting Materials: White paper board, Brown paper, Red hard paper board, Plastic board, Fiber middle & bottom board
Cutting Speed: 80-120cm/s (Max.)
Cutting Thickness: 0.5 - 2mm
Pen Quantity: Eight kinds of different pen shape, setup of full and half blade
Pen Type: Common signing pen, Oil pen and ball-point pen
Mat. hold-down method: Vacuum Suction
Command System: Standard parallel port or serial port
Transmission Interface: HP-GL and GP-GL compatible mode
Buffer Size: Form-feed cutting through once-and-for-all speed transmission
Control Panel: Touch control LCD display
Transmission Materials: Straight line guide track/Synchronous belt/Imported synchronous belt
Feeding Mode: Manual feeding/Auto-feeding
Specification of Fuse: 6A
