Home > Health & Medicine > Medical Supply > Disposable Medical Supplies > 4 Channels SD Card Mini Vehicle DVR GST-MDR346

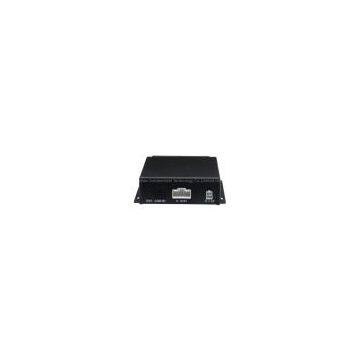

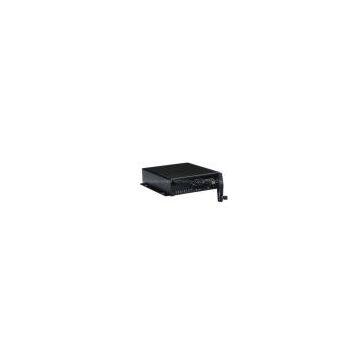

4 Channels SD Card Mini Vehicle DVR GST-MDR346
Negotiable
MOQ: 100 Kilograms (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
GST
Place of Origin:
China
Model Number:
MDR346
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
CF Card Car DVR With GPS Function GST-MDR345NegotiableMOQ: 100 Pieces -
H.264 Hard Disk Vehicle DVR GST-MDR645 (4-channel)NegotiableMOQ: 100 Pieces
-
Hard Disk 3G GPS WIFI Mobile Phone Car DVR MDRH304GNegotiableMOQ: 100 Kilograms
-
SD Card+3G+GPS+WIFI+Mobile Phone Car DVR MDR304GNegotiableMOQ: 100 Pieces
-
Motorcycle/Automobile GPS Tracker VT200XNegotiableMOQ: 200 Pieces
Brand Name
GST
Place of Origin
China
Model Number
MDR346
Desription
GST-MDR346 supports 1/2/4 channels of video, 1 channels of audio and gives users the option of selecting recording resolutions from CIF(352x288) to D1 (704x576). The removable hard drive stores recorded video and can be removed and connected to a standard PC to view recorded video. It supports 3G and GPS function . This mobile solution comes complete with everything required for simple installation.
This mobile solutions are currently being used in the following applications:
• Law Enforcement - Patrol Cars
• Military - Tanks
• Emergency – Ambulances, Fire Trucks
• Public – Buses, Trains, Railways, Subways
• Commercial – Boats, Heavy Equipment, Limousines, Taxis, Vans
• Transportation - Freight Liners
• Aviation – Helicopters, Commercial and Private Aircraft
Specification
GST-MDR346 supports 1/2/4 channels of video, 1 channels of audio and gives users the option of selecting recording resolutions from CIF(352x288) to D1 (704x576). The removable hard drive stores recorded video and can be removed and connected to a standard PC to view recorded video. It supports 3G and GPS function . This mobile solution comes complete with everything required for simple installation.
This mobile solutions are currently being used in the following applications:
• Law Enforcement - Patrol Cars
• Military - Tanks
• Emergency – Ambulances, Fire Trucks
• Public – Buses, Trains, Railways, Subways
• Commercial – Boats, Heavy Equipment, Limousines, Taxis, Vans
• Transportation - Freight Liners
• Aviation – Helicopters, Commercial and Private Aircraft
Specification
|
Operation System
|
Embedded Linux Operation System
|
|
Operation Interface
|
support mouse,remote control operation
|
|
Video Standard
|
PAL,NTSC
|
|
Video Compression
|
H.264
|
|
Audio Compression
|
ADPCM
|
|
Recording Mode
|
Manual,Timing,Alarm,Motion detection
|
|
Search Mode
|
By time,event,channel
|
|
Backup Mode
|
USB backup
|
|
Video Input
|
4 ch
|
|
Video Output
|
1ch
|
|
Audio Input
|
1 ch
|
|
Audio Output
|
1ch
|
|
Live Video Resolution
|
PAL:720x576(D1);NTSC:720x480(D1)
|
|
Playback Resolution
|
PAL:352x288(CIF);NTSC:352x240(CIF)
|
|
Image Control
|
1-6 level are selectable
|
|
Motion Detection
|
Each channel can set independent detection zones and multilevel sensitivity
|
|
Video Display
|
multiple screen display:1/4
|
|
Recording Speed
|
PAL:25f/s(Adjustable) NTSC:30f/s(Adjustable)
|
|
Recording Storage
|
SD card
|
|
Local Playback
|
1--4 channel playback
|
|
Alarm Input
|
4ch input
|
|
Alarm Output
|
1ch output
|
|
PTZ Control
|
RS485
|
|
USB Interface
|
One USB2.0 Port
|
|
Power Supply
|
DC 6-36V
|
