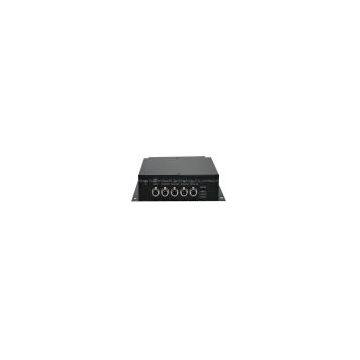

CF Card Car DVR With GPS Function GST-MDR345
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
GST
Place of Origin:
China
Model Number:
MDR345
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
H.264 Hard Disk Vehicle DVR GST-MDR645 (4-channel)NegotiableMOQ: 100 Pieces -
Hard Disk 3G GPS WIFI Mobile Phone Car DVR MDRH304GNegotiableMOQ: 100 Kilograms
-
SD Card+3G+GPS+WIFI+Mobile Phone Car DVR MDR304GNegotiableMOQ: 100 Pieces
-
4 Channels SD Card Mini Vehicle DVR GST-MDR346NegotiableMOQ: 100 Kilograms
-
Motorcycle/Automobile GPS Tracker VT200XNegotiableMOQ: 200 Pieces
Brand Name
GST
Place of Origin
China
Model Number
MDR345
Description
GST-MDR345 supports 1 or 4 channels of video, 1 channels of audio and gives users the option of selecting recording resolutions from CIF(352x288) to D1 (704x576). The sd card stores recorded video and can be removed and connected to a standard PC to view recorded video. It supports GPS function for optional. This mobile solution comes complete with everything required for simple installation.
This mobile solutions are currently being used in the following applications:
• Law Enforcement - Patrol Cars
• Military - Tanks
• Emergency – Ambulances, Fire Trucks
• Public – Buses, Trains, Railways, Subways
• Commercial – Boats, Heavy Equipment, Limousines, Taxis, Vans
• Transportation - Freight Liners
• Aviation – Helicopters, Commercial and Private Aircraft
Feature
1, Provide Video output for playing-back mode in mainframe.
2, Recording format: D1 and CIF
3, H.264 High Profile video compressionl.
4, User friendly player software, easy to operation.
5, The full recording time and date can be showing in the monitor directly.
6, Support from +8V DC to +32VDC. Applicable for vehicles with +12V or +24V battery..
7, Auto-run recording after CF card plug-in and power supplied.
8, Support schedule recording.
9, CF-card is recommended for better safety and anti- vibration performance.
10, Provide 1-4 set of alarm input ports.
11, Firmware can be upgraded via USB port.
12, Support recording audio, video and G-sensor at the same time.
13, GPS for optional.
Specification
GST-MDR345 supports 1 or 4 channels of video, 1 channels of audio and gives users the option of selecting recording resolutions from CIF(352x288) to D1 (704x576). The sd card stores recorded video and can be removed and connected to a standard PC to view recorded video. It supports GPS function for optional. This mobile solution comes complete with everything required for simple installation.
This mobile solutions are currently being used in the following applications:
• Law Enforcement - Patrol Cars
• Military - Tanks
• Emergency – Ambulances, Fire Trucks
• Public – Buses, Trains, Railways, Subways
• Commercial – Boats, Heavy Equipment, Limousines, Taxis, Vans
• Transportation - Freight Liners
• Aviation – Helicopters, Commercial and Private Aircraft
Feature
1, Provide Video output for playing-back mode in mainframe.
2, Recording format: D1 and CIF
3, H.264 High Profile video compressionl.
4, User friendly player software, easy to operation.
5, The full recording time and date can be showing in the monitor directly.
6, Support from +8V DC to +32VDC. Applicable for vehicles with +12V or +24V battery..
7, Auto-run recording after CF card plug-in and power supplied.
8, Support schedule recording.
9, CF-card is recommended for better safety and anti- vibration performance.
10, Provide 1-4 set of alarm input ports.
11, Firmware can be upgraded via USB port.
12, Support recording audio, video and G-sensor at the same time.
13, GPS for optional.
Specification
|
Item
|
Parameter
|
Description
|
|
System
|
Language
|
Chinse Simplified/Chinese Traditional/English/Japanese/other language could be order
|
|
Interface
|
Graphical User Interface
|
|
|
Security
|
Key protected
|
|
|
Video
|
Video Input
|
4 channel video input, 1.0Vp-p,75Ω
|
|
Video Output
|
1 channel vidoe output, 1.0Vp-p,75Ω
|
|
|
Video Standard
|
PAL (25fps) NTSC (30fps)
|
|
|
Audio
|
Audio Input
|
1 channel audio input, 20KΩ
|
|
Audio Output
|
1 channel audio output, 500Ω
|
|
|
Output level
|
1V ~2V, p-p
|
|
|
Recording mode
|
Audio and video simultaneously recording
|
|
|
Compression
|
AAC
|
|
|
Storage
|
Video Compression
|
H.264 High Profile
|
|
Resolution
|
D1 at PAL (100fps), NTSC (120fps)
|
|
|
Video bitrate
|
D1: 200Kbps ~ 2Mbps,3 selectable quality
|
|
|
Audio bitrate
|
8KB/s(Compressed)
|
|
|
Storage
|
CF card
|
|
|
Alarm
|
Alarms
|
1-4 CH
|
|
Communication
|
COM
|
one RS232 connector for optional
|
|
GPS
|
Support external GPS module, geographic coordinates, speed can be written in code stream
|
|
|
Software
|
Special Player
|
|
|
Firmware update
|
Via USB disk
|
|
|
Power
|
Power input
|
DC:+8V ~ +32V
|
|
Power output
|
+12V@3A;+5V@1A
|
|
|
Power consumption
|
Less than 5W;less than 0.1W in standby mode
|
|
|
Working temp
|
-10℃ ~ +60℃
|
