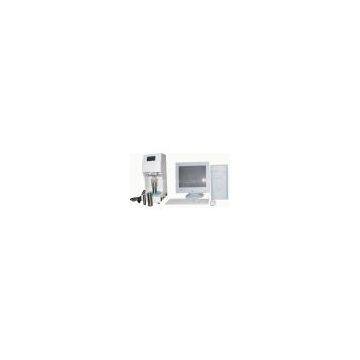

Purpose & characters:This Double-passage mud shale dilatometer is mainly used to check and measure swelling change of mud shale in the condition of normal temperature and pressure, then appraise the rejection characteristic of all kinds of treating compoundto mud shale.Adopt the accuracy of double-passage contrast measure, connect with computer to accumulate data and coordinate draft, possessing characters of compact structure, simple operation, visible reading and high accuracy.
Technical parameters
Power supply:computer 200V±5%,measuring instrument 4 7# batteries of 1.5V
Measuring cylinder capacity:24ml
Measuring error:0.01mm
Measuring range:10mm
Combined Measuring error≤0.05mm


Dynamic Linear Swell Meter

Investigating the swelling characteristics of shale formations is vital in selecting a proper drilling fluid to give maximum inhibition and wellbore stability. While drilling a well, a shale formation will immediately begin to swell if the drilling fluid is not completely compatible with the formation. This swelling can cause many problems, such as bit balling, pipe drag, hole sloughing, or other "gumbo" related problems. Therefore, selecting the proper drilling fluid prior to, or during the drilling operation, can be very beneficial in achieving a stable wellbore.

The OFITE Linear Swell Meter is designed to simultaneously test up to four drilling fluids (expandable to eight) on a representative shale sample for extended periods of time at temperatures up to 180°F.

Most swell meters are designed to test shale samples in static fluid. However, fluids circulate as you drill, so testing shale samples in a static environment does not always provide accurate readings.

The OFITE Linear Swell Meter is the only swell meter on the market capable of dynamically testing your fluids, so you obtain the most accurate data possible.

Size: 20.5" x 14.5" x 25" (52 x 37 x 64 cm)
Weight: 220 lb (100 kg)

Swell Meter and Compactor:
Crated Size: 27" x 21" x 47" (65 x 53 x 120 cm)
Crated Weight: 312 lb (142 kg)

Instrument Control:
Cated Size: 37" x 20" x 32" (94 x 51 x 81 cm)
Crated Weight: 235 lb (107 kg)
