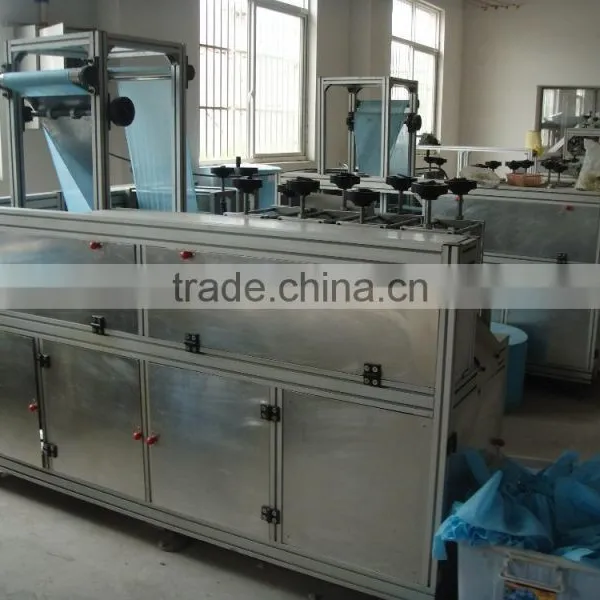

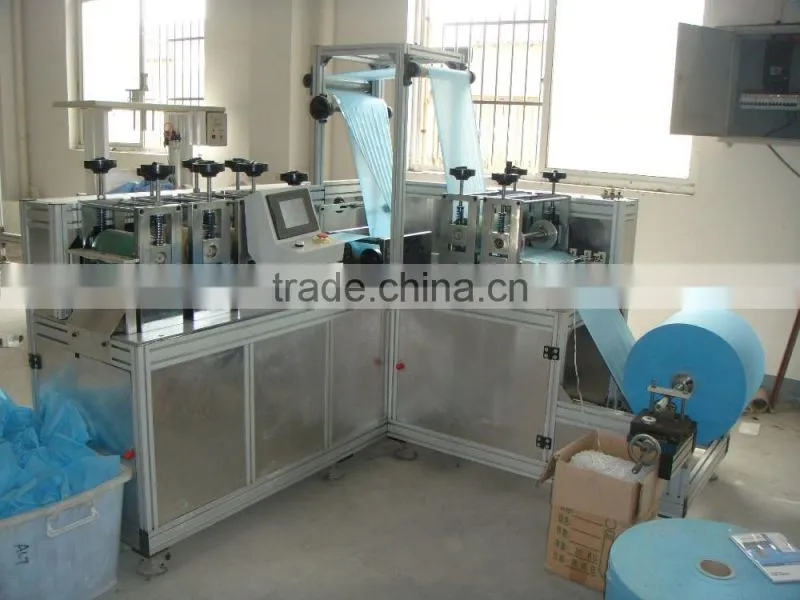

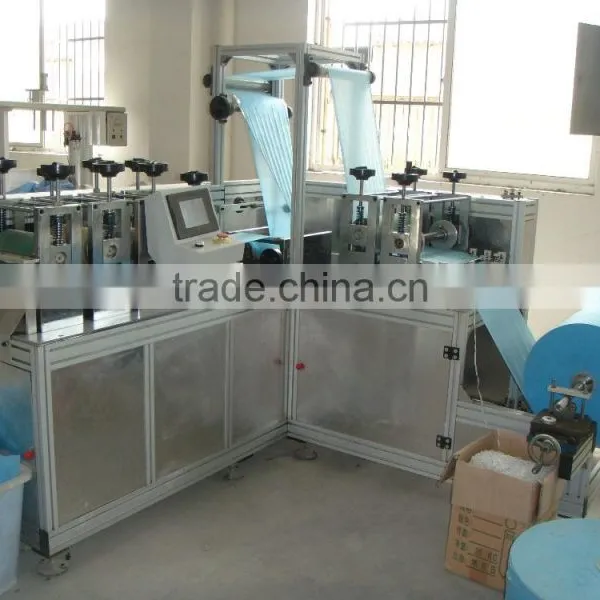

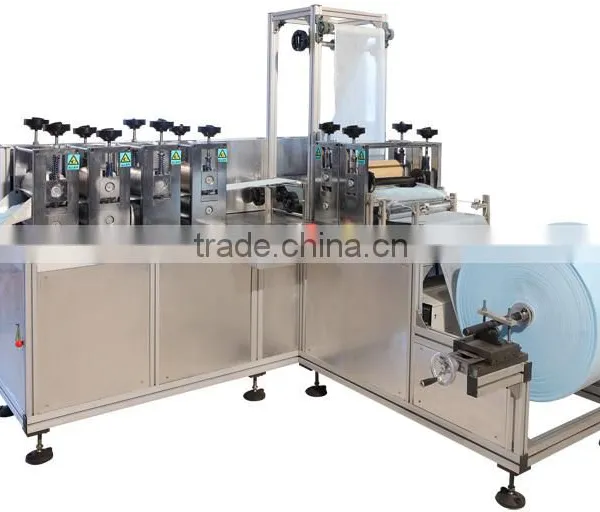

Nonwoven shoe cover making machine :
A Process Description :
Elastic, Non-woven farbic feeding——Edge Folding——Shaping——Welding
——Cutting
B Technical Parameter :
Supply Power: AC380V or 220V
Power : 3.5kw
Designed Speed : 120pcs/minute
Optimum Speed : 60-100pcs/minute
Dimensions :2000*1825*1700mm
Net Weight:650kg
1. Ultrasonic : 3sets (taiwan)
2. Motor: TaiWan “YongKun”
3.Touch screen: TaiWan “Wei- Lun”
4.Inverter: TaiWan “Sunfar”
5.PLC: Japan “Mitsubishi”
C Operating Program
1.Adjust the non-woven farbic plate and tension equipment.
2.Pull the non-woven farbics into folding and welding manually.
3.Elastic feeding and pull into the Ultrasonic welding.
4.Open the main machine slowly,then start to welding and cutting.
Suggestion:
1. Non-woven shoes and PE shoes can’t made by the same machine,it’s two different.
2.It can replace the mould to make different size of shoes.(The shoe size is according to customers demand and then we make moulds for you.)
Package: Wooden packing
Warrant term: 1 year
Size:150*400mm(W*L) (when extension)
Material roll width :360mm
Material density:25-50gsm, we use 30gsm always
Elastic:4mm width double elastic
