Product Introduction:
This nonwoven bag making machine type : FAST-DC700
This newest nonwoven bag making machine is high efficiency and high technology.
High efficiency:
1. The biggest speed is about 120 pcs/min ,it equals to 5 workers operating 5 handle sealing machines.
2. It can fully automatic make non woven bag products with different type and size.
3. It can fully automatic make non woven bag products with different bag type and size, as handle attached bags,box bag, T-shirt bags (vest bags), flat bags,
drawstring bags and so on.
High technology:

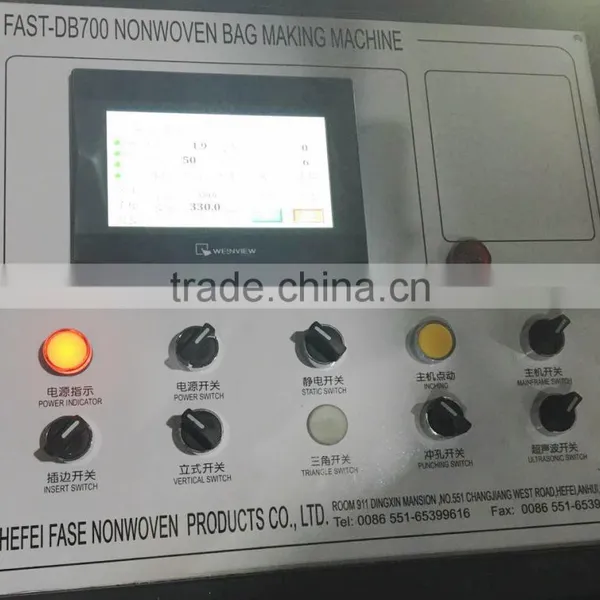

1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. This machine has the function of automatic punching.

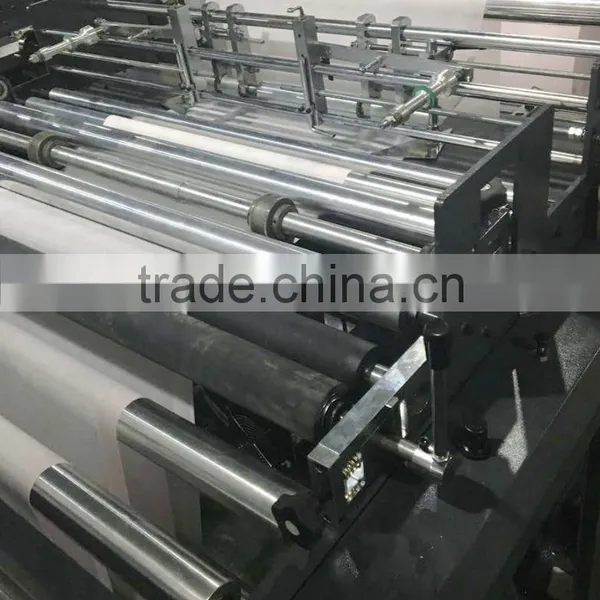

6. Unwinding magnetic powder tension control with manual, Auto side-correction control.

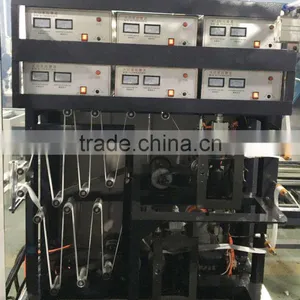

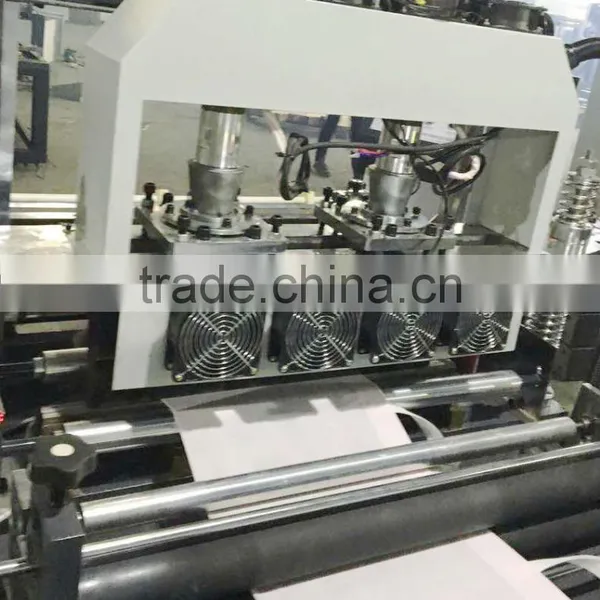

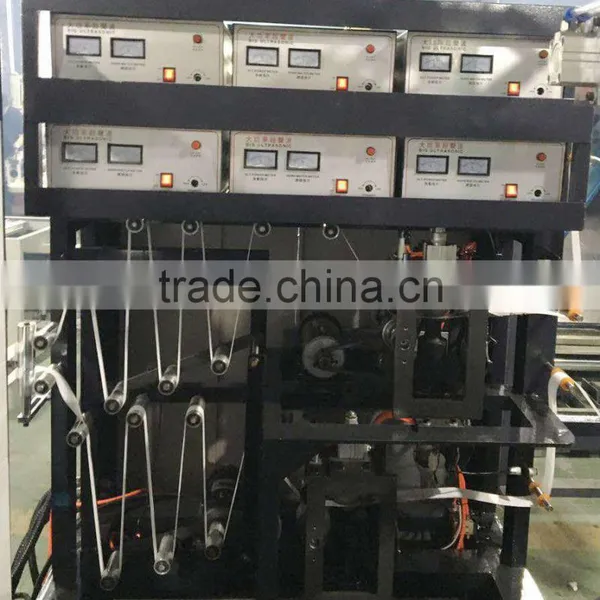

7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.
Main Technical Parameter
Bag Making Speed: 20-120pcs/min Handle Bag Speed: 20-55pcs/min
Bag Size(Length*Width): (100-800)mm * (200-580)mm Bag Weight: 30-100g
Two type punching machine
Type A: Atuomatic punching machine configuration
1. Automatic computer controlled.
2. Double step motor run with AC motor.
3. Punching by cylinder,controlling available.
4. It adopts PLC control double servo motor fixed length and the liquid crystal
touch screen actual display to finish the feeding,sealing,cutting punching
holes and transporting only in one process.
Atuomatic punching machine main data
Max.bag making width:550mm Max.bag making length:600mm
Speed: cooperate with bag making machine
Main motor: shanghai jingxianlong 0.75kw
Pressure cylinder:BKM3T*2 Air cylinder: JIELI
Computer:P07-B automatic punching controller
Frequency converter:jiale 1.5kw
Magnetic valve:STNC Pneumatic component:WSNS
Overall dimension:2600mm*1050mm*1750mm(L*W*H) Weight:400kg
Type B: Hydraulic pressure punching machine main data
With four cutting knife of different size
Main motor: 1.1kw Work Press: 10 tons
Clamp travel:5-75mm
Distance between workable and clamp:65-150mm
Overall dimension:1000mm*800mm*1300mm(L*W*H) Weight:800kg
