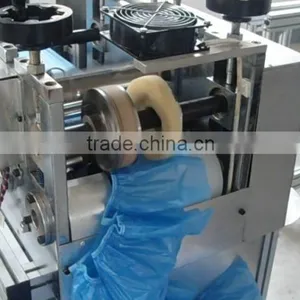

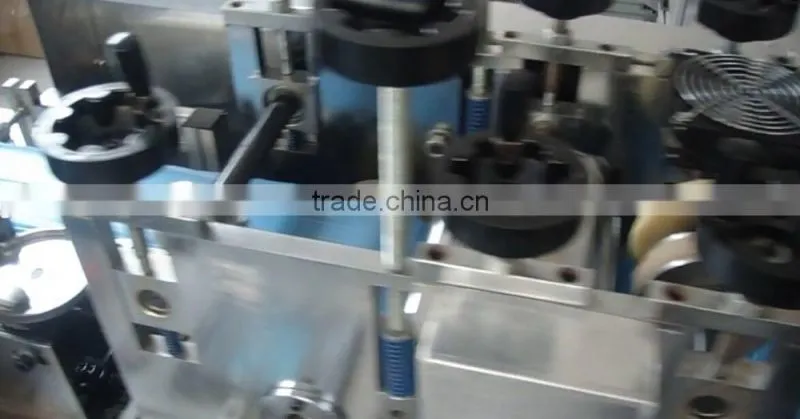

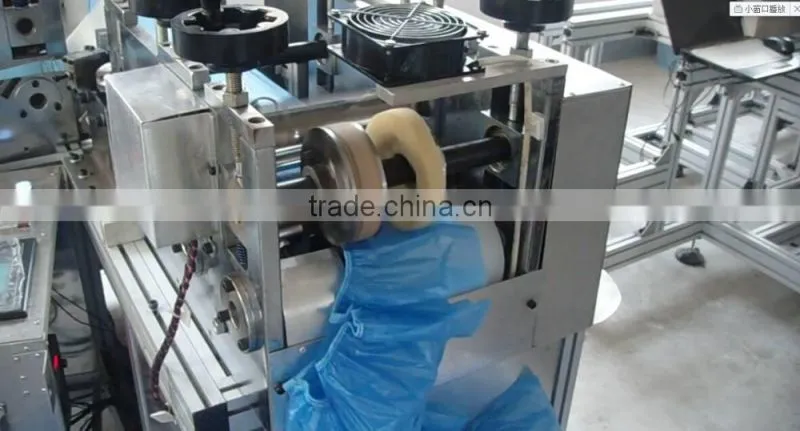

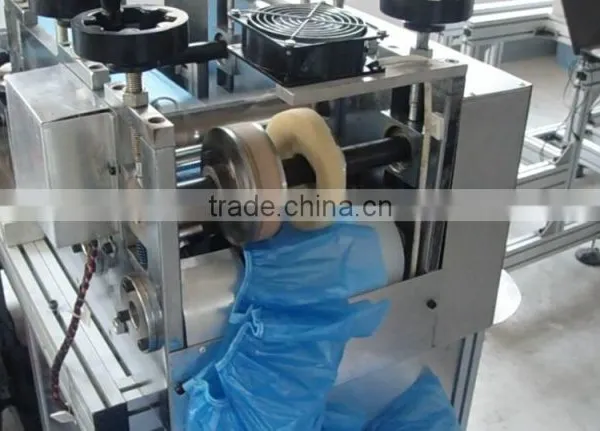

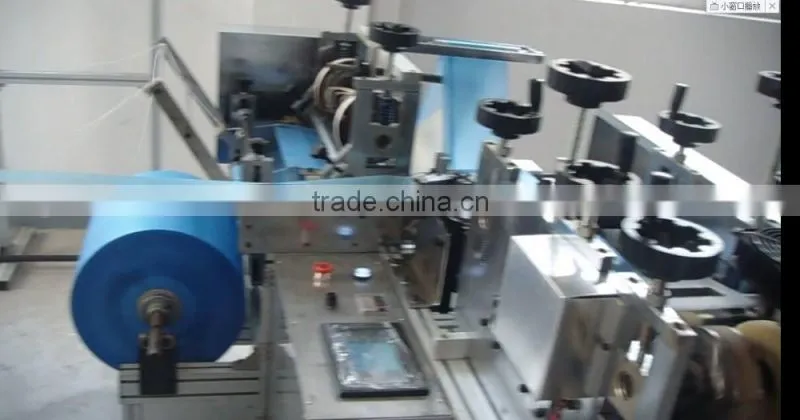

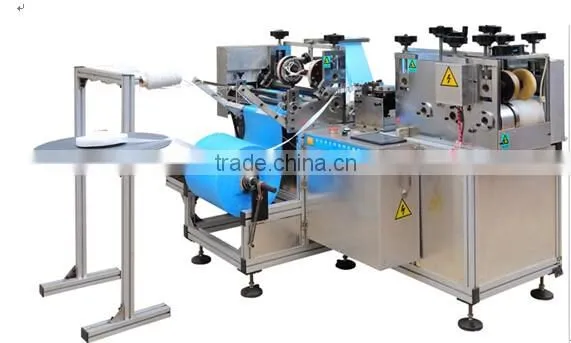

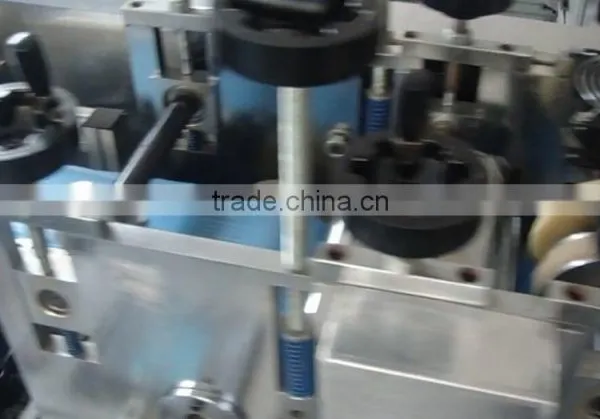

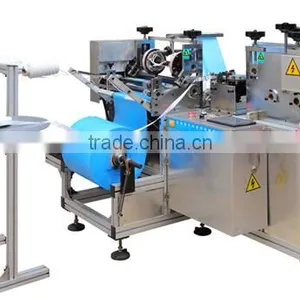

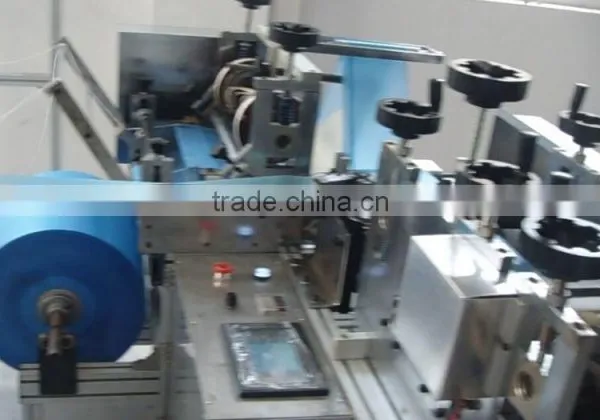

Plastic shoe cover making machinery
This machine specialized in the production of plastic shoe covers. PE-CPE materials and finished products from raw materials into the expected completion of both a line of automated equipment. Adopting advanced electrical control parts operated by touch screen man-machine interface, PLC programme, photoelectric detection equipment and auto-stop.
The bonding of PE-CPE materials adopts adjustable ultrasonic welding or a combination of electric welding. Both two sides of the shoe cover have non-woven welding to make the shoe cover more Strong. Under replacing the mould it can produce the different specification product.
1. PLC program control, Chinese and English operation interface, push-button control panel, easy to learn;
2. Used converter Control for precise operation;
3. Adopt ultrasonic and hot seal, auto clutch heating roller.
4. All imported components, stable performance;
5. Independent R & D, quality assurance, product yield, good quality, and one man can operate, save cost and significantly improve production efficiency and increase revenue.
1. Hobbing cutter, products’ size can be adjust by change mould.
2. High quality ultrasonic welding non-woven edge cover.
3. Hot-sealing no spark no smoke.
4. Auto material folding, auto clutch heating roller, prevent fire accident.
1. Size: Finished size can be customized according to customer's different requirements
2. Elastic: Can produce a single bar products;
3. sewing: Ultrasonic seamless suture techniques; stitch pattern flexible, simple and convenient
4. Finished Product: ultrasonic welding and cutting for not to hurt the edge and without flash casual side, etc.; finished product clean and beautiful.
Application
1. Food, electronics, protection, beauty, and other non dust industrial application, to ensure production workshop is clean, to eliminate unpleasant public slippers smell, and athlete's foot and other skin temperatures caused by cross-infection risks, and take off shoes, reducing indoor cleaning;
2. For sterile environment;
3. Ordinary household cleaning use, to solve customer pain of changing his shoes to eliminate foot odor and embarrassment, and can reduce household cleaning difficult; low cost, can also be re-use.
- 1. Technical Parameter :
1. Supply Power: AC380V or 220V
2. Power:3kw
3. Designed Speed : 200pcs/minute
4. Optimum Speed : 60 -150pcs/minute
5. Dimensions:1580*1170*1220mm
6. Weight:500kg
Price:9800USD FOBshanghai
Payment: After 30% of the total value is paid in advance by (T/T),
The left 70% should be paid by (T/T) after you check up the finished
machine. And the cargo will be delivered after all the payment
arrives at our account.
Delivered time: 30days after confirm the order
Warrant term: 1 year
Package:Wooden Packing
Installation and test: The buyer should pay the round tickets, visa fee, food and accommodation in your country and our engineers $100 per day if you need our training and installation abroad.
Shoe cover size:15*40cm
Raw material:PE film , elastic and nonwoven strip.
PE film width:33cm,10-20g/square meter(we always use 15g/squre meter)
Nonwoven strip: 2cm width,30gsm
Machine Dimensions:1580*1170*1220mm
Wooden packing size:1700*1300*1500mm
