1.6m 2.4 m 3.2m PP Spunbonded Nonwoven Machine

1.6m 2.4 m 3.2m PP Spunbonded Nonwoven Machine thumbnail-1
1.6m 2.4 m 3.2m PP Spunbonded Nonwoven Machine thumbnail-2
1.6m 2.4 m 3.2m PP Spunbonded Nonwoven Machine thumbnail-3
1.6m 2.4 m 3.2m PP Spunbonded Nonwoven Machine thumbnail-4
1.6m 2.4 m 3.2m PP Spunbonded Nonwoven Machine photo-1
1.6m 2.4 m 3.2m PP Spunbonded Nonwoven Machine photo-2
1.6m 2.4 m 3.2m PP Spunbonded Nonwoven Machine photo-3
1.6m 2.4 m 3.2m PP Spunbonded Nonwoven Machine photo-4
US$ 240,000 - 300,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
5 tons/per day
Place of Origin:
Anhui, China
Contact Supplier Request Quote Chat Now
Hefei Fast Nonwoven Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai 1.6m 2.4 m 3.2m PP Spunbonded nonwoven machine
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Production Capacity 5 tons/per day
Place of Origin Anhui, China
Brand Name FAST
Model Number 1.6m 2.4 m 3.2m PP Spunbonded nonwoven machine
Dimension(L*W*H) 25m*20m*13m
Power(W) 800-1400kwh
Certification CE,SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

1.6m 2.4 m 3.2m PP spunbonded nonwoven machine



APPENDIX 1  PP1600S SPECIFICATION
NAME OF EACH PART

 TECHNICAL PARAMETER

 SCOPE OF SUPPLY

 QTY.
1. Spunbond Part
1.1 Vacuum Feeder

 feeding capacity
  		500kg/h; HG NONWOVEN

 1 SET;
motor power

 7.5kw*1
1.2 Masterbatch Dosing Unit

 color matching

 1%~5%; HG NONWOVEN

 1 SET;
motor power

 0.55kw(43/1)*3;
1.3 Screw Extruder

 model

 φ130; 30:1; Jin hu

 1 SET;
transmission motor

 Siemens AC 75kw*1;
1.4 Co-Extruder

 model

 φ105; 15:1; Jin hu

 1 SET;
transmission motor

 Siemens AC 18.5kw*1;
 feeding motor

 0.55kw(35/1)*1;
1.5 Melting Filter

 type

 cartridge

HG NONWOVEN

 1 SET;
filtration area

 2.5 M2
heating medium

 oil heating/ conducting oil;
1.6 Metering Pump

 model

 200cc; HG NONWOVEN

 1 SET;
Max. speed

 35RPM;
motor power

 5.5kw(35/1)*1;
1.7 Spinning Beam

 material

 casing pipe HG NONWOVEN

 1 PC;
heating medium

 oil heating/ conducting oil;
temperature

 Max. heating: 250 ℃
1.8 Monomer Suction Device

 speed

 3000RPM HG NONWOVEN

 1 SET;
motor power

 Siemens/Beide AC 5.5kw*1;
1.9 Spinneret

material

 precision heat-resistant steel;

 wu zhong

 2 PC;
size

 L1910mm*W216mm;
hole diameter

 45S;
hole quantity

 10000~11000;
1.10 Cooling Air Box

 model

 1600mm; HG NONWOVEN

 1 SET;
material

 5mm aluminium plate;
1.11 Upper Stretching Device model

 1600mm; HG NONWOVEN

 1 PC;
raw material

 toughened glass;
Stainless steel
total air flow

 12000 m3/h;
1.12 Lower Stretching Device

 model

 1600mm; HG NONWOVEN

 1 PC;
material

 toughened glass;
Stainless steel
total blowing rate

 12000 m3/h;

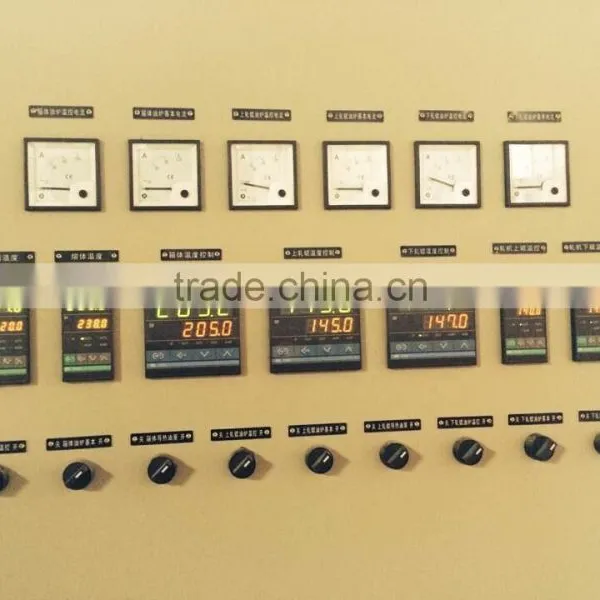

1.13 PLC Electric Control

 cabinet group qty

 4 groups for spunbond

 HG NONWOVEN

 1 SET;
PLC model

 Siemens S7-300;
2. Meltblown Part
3. Fabric Forming Part
3.1 Web Forming Machine

 process speed

 9~150m/min; HG NONWOVEN

 1 PC;
motor power

 Eurotherm 7.5kw*1 DC motor
thickness

 40mm;
3.2 Thermobonded Calender

 process speed

 9~150m/min; changzhou-China

 1 PC;
motor power

 Eurotherm 22kw*1 DC motor
roller size

 L:2000mm;D:420mm;
heating method

 oil heating;
3.3 Tension Frame Device

 model

 1600mm; HG NONWOVEN

 1 PC;
type

 automatic adjustment;
3.4 Auto Winder Machine

 driving roller

 2100mm; HG NONWOVEN

 1 PC;
motor power

 AC 5.5kw*1;
 flatulence axis

 3 pcs;
wind diameter

 Max: 1200mm
wind weight

 Max: 550kg;
3.5 Rolling Back Machine

 model

 1600mm; HG NONWOVEN

 1 PC;
type

 linkage roll back;
3.6 Slitter&Cutter

 motor power

 AC 5.5kw*1;

 HG NONWOVEN

 1 PC;
running speed

 Max. 200m/min
driving roller

120mm seamless steel pipe;
roller material

 stainless steel
wind diameter Max: 1200mm
4. Heating System
4.1 Oil Heating Furnace

 type

 oil heating;

 HG NONWOVEN

 3 PC;
heating target

 spinning beam and calender;
motor power

 48kw*3
4.2 Heating Oil Pipeline

 ------------- ---------------------------- 1 SET;
4.3 Heat insulation material

 ------------- ---------------------------- 1 SET;
5. Cooling System
5.1 Chiller/Refrigerating Unit
 		cooling capacity

 100000 Calories*1

 CARRIER

 1 SET;
5.2 Air Conditioning Box

 cooling capacity

 100000 Calories*1

 HG NONWOVEN

 1 PC;
total blowing rate

 10000~12000m3/h;
5.3 Cooling Air Blower

 speed

 1450RPM HG NONWOVEN

 1 PC;
motor power

 Siemens/Beide AC 30kw*1;
total blowing rate

 12000 m3/h;
5.4 Air Suction Blower

 speed

 1450RPM HG NONWOVEN

 1 PC;
motor power

 Siemens/Beide AC 30kw*1pc;
5.5 Cooling Tower

 total circulating
 water 		 40T/H HG NONWOVEN

 1 PC;
cycling water
pressure 		 25 ℃, 0.2~0.35Mpa;
circulated system

 made of glassed fiber;
5.6 Cycling Water Pump

 motor power

  5.5kw*2pc; HG NONWOVEN

 2 PC;
5.7 Air Duct

 shape

 round  HG NONWOVEN

 1 SET;
5.8 Air Pipeline

 material

 1mm galvanized iron plate

 HG NONWOVEN

 1 SET;
5.9 Water Pipeline

 material

 89mm galvanized pipe

 HG NONWOVEN

 1 SET;
5.10 Cool insulation material

 cooling target

 air and water pipeline;

 HG NONWOVEN

 1 SET;
6. Module Preparation Module
6.1 Vacuum calcinator

 cleaning target

 spinneret

 HG NONWOVEN

 1 PC;
motor power

 38kw*1;
6.2 Ultrasonic Cleaner

 material

 thickened stainless steel
imported		 HG NONWOVEN

 1 PC;
motor power

 0.5kw*1;
Max. temperature

 110 ℃
7. Other Module
7.1 Conveyor Belt

 size

 L*W:10.8M*2.05M

 HG NONWOVEN

 2 PC;
type

 seamless;
7.2 Electric Hoist

 loading capacity

 1 T  HG NONWOVEN

 1 PC;

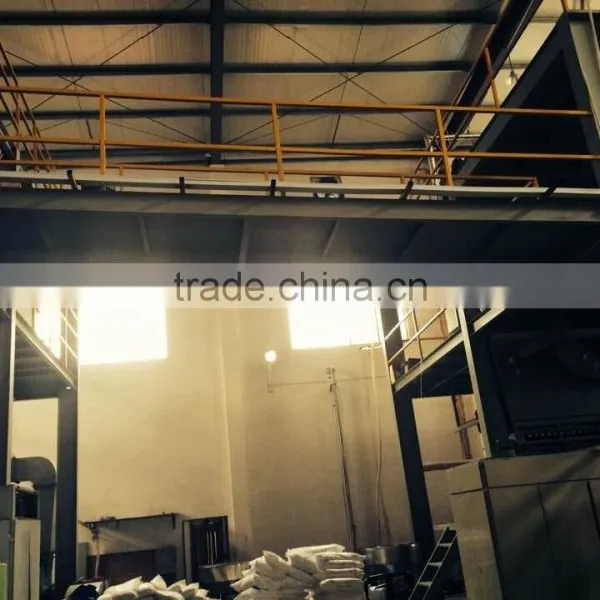

7.3 Steel Platform

 material

 400#  H beams
300#  beams
16# channel
80# channel
200# channel
4mm pattern steel  		HG NONWOVEN

 1 PC;
7.4 Air Compressor

 motor power

 7.5kw*1;1.2MP; HG NONWOVEN

 1 PC;
7.5 Inverter

 ------------- ---------------------------- SIEMENS-German

 1 SET;
7.6 DC digital converter

type

 SSD 590; Eurothern-UK

 1 PC;
7.7 Thermostat

------------- ---------------------------- RKC-JAPAN

 1 PC;
7.8 Pressure Sensor
 		 type

 RKC-F900 RKC-JAPAN

 1 PC;
