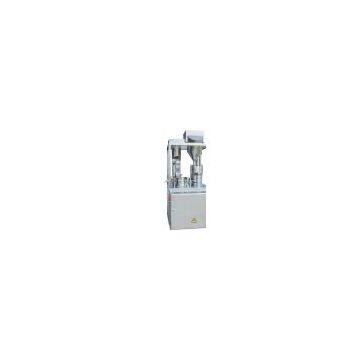

NJP-800A/C Fully Automatic Capsule Filling Machine

1.Main Technical Parameter:

1)Output:800 granules/min

2)No.of segment bores:6

3)Suitable for capsule:00#~4#

4)Total power:4kw

5)Overall weight:800kgs

6)Overall size:860*960*1800mm

2.Machinery Characters:

1)Working steady,safe and reliable enough

2)Capsule qualified rate is more than 99% with the precise dosage

3)Timing frequency-conversion, programmable controlled.

4)New closed structure, accord to GMP standard.

3.Main Features:

1)It has been improved the inner design turret,and imports beeline bearings for each machine from Japan  directly,so that it can be sure a longer usage-life and precision of machine.

2)The working station cam runs under the good lubricating condition,and maintains the inner lubrication of cam slot to a full extent,increasing the pressure pulverization oil pump,thus extends the operation life of  the spare parts.

3)It is controlled by the computer, has a stepless timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.

4)The multi-bore dosing brings a precision dosage (it is controlled around 3.5%); the good capsule applicability makes a higher capsule qualified rate (more than 99%).It can be filled with the Chinese traditional   medicine and the Western medicine.

4.Packing:

1)Standard sea worth wooden packing.

2)One wooden case is including:one set machine with one set mould,one set water tank,one set vacuum pump,one set dust collector.

3)Packing size:1*1.7*1.9m

4)Packing weight:900kgs
