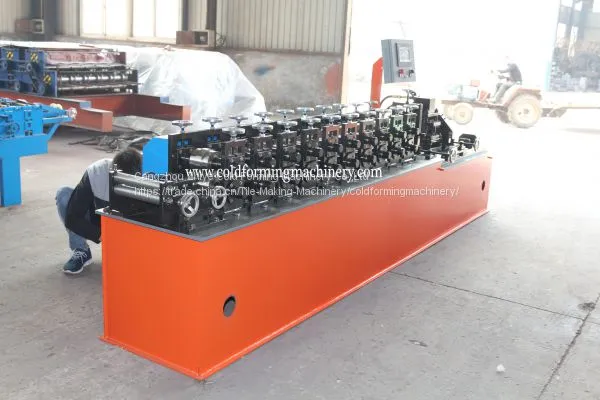

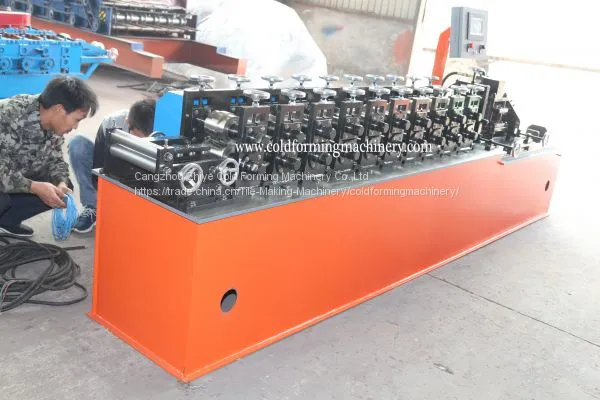

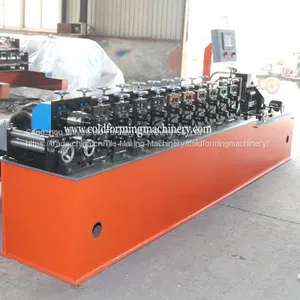

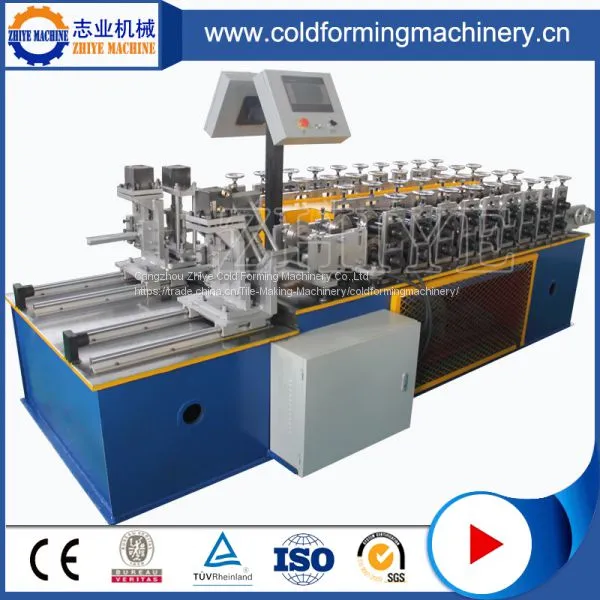

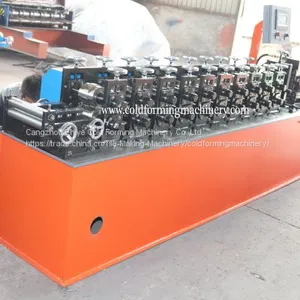

Light Gauge Frame Omega Roll Forming Machine
US$ 11000 - 11500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ZY
Place of Origin:
China
Model Number:
ZY
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
35 days
Related Products
-
Corrugated Double Liner Metal Roof Tile Roll Forming MachineUS$ 12580 - 25800MOQ: 1 Set -
Metal Roof Ridge Capping Roll Forming MachineUS$ 9580 - 12580MOQ: 1 Set
-
Excellent Iron Roof Tile Cold Roll Forming MachineUS$ 7580 - 12580MOQ: 1 Set
-
Metal Profile Cold Roll Forming MachineryUS$ 7580 - 12580MOQ: 1 Set
-
Metal Roof Ridge Capping Roll Forming MachineUS$ 9580 - 12580MOQ: 1 Set
Brand Name
ZY
Place of Origin
China
Model Number
ZY
Use
Roof
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
2 years
Weight
5 ton
Dimension(L*W*H)
800*140*150cm
Production Capacity
50 sets/month
Condition
New
Voltage
380v
Power(W)
8000
Type
Tile Forming Machine
Tile Type
Colored Steel
Omega Channel Roll Forming Machine made by this machine is easy to install, used together with different colors can make it appear dye-in-the-wood individual character. Width of 75, 100, 150, 200, and 300 Omega-shaped keel can be assembled arbitrarily, and they are connected tightly. They can be fixed on the device which is specially used for keels, they can tear down individually.
Products made by this machine are suitable to use as building decorations, especially suitable to use in bedroom, kitchen, washroom, corridor and so on.
Material for this machine is galvanized steel plate, snowflake plate and colored steel plate
Technical parameter of light Gauge Frame Omega roll forming machine:
1. Applied plank stuff: color armor plate
2. Applied slab thickness: 0.3-1.0mm
3. Charge in width: 1000mm
4. Line speed: 0-14m/min
5. Rolling rows: 16rows
6. Rolling diameter: 70mm
7. Dimensions: 8.5m*1.5m*1.6m
8. Weight: 5t
9. Power: 4kw+3kw
Light Gauge Omega Roll Forming Machine Equipment parts
1. Steel strip supporting frame

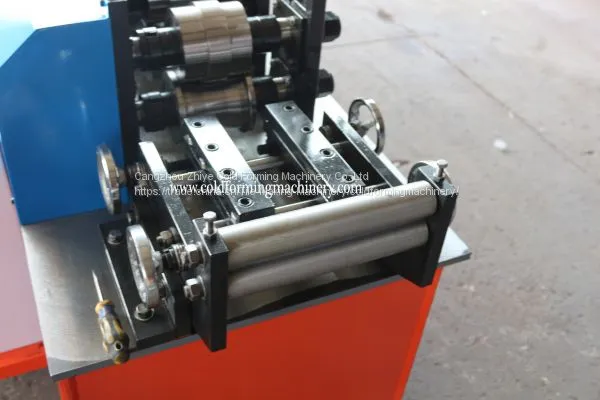

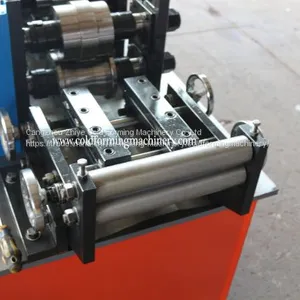

2. Feeding platform

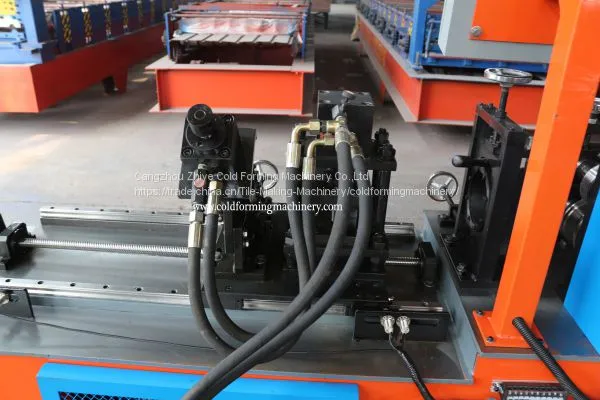

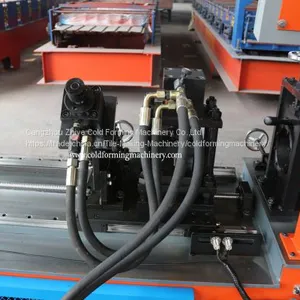

3. Automatic shearing system
4. Hydraulic system
5. Steel strip unfolding system
6. Computer control system (imported computer)
7. High-precision automatic counter
8. Receiving table
Optional equipment
Hydraulic automatic uncoiler
Working space and workman for the equipment
1. Ground-level land
2. 5T overhead travelling crane
3. Space for storing the material
4. Space for laying the machine
5. Road for vehicle moving
6. Workman: 2, operator and porter
This machine is fully automatic and high speed producing continuously, one set of forming rolls can produce various sizes of Omega and Runner just by simply and easily changing the spacers, this enables the production of different sizes products on the same rollers.
