A. Double Liner Metal Roof Tile Roll Forming Machine Function and feature
This producing line uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate. The products of it are used as the roof tile and wall panel outside of building, to increase the beauty and durability of the roof tile and wall panel. This line has no limit on processing length; you can set several different data on the computer control cabinet according to your own need. After pressing the button "Confirm", the machine can produce the panel automatically according to the set data. The molding plate surface smooth and not easy to be marked when it is being stamped. So it is easy to install. The product conforms to National Steel Construction Building Standard.
B.Features of Double Layer Roll Forming Machine :
·lower cost
·high efficiency
·reliable working
·low energy consumption
C. Double Layer Tile Roll Forming Machine Equipment parts
·Feeding platform
·Automatic shearing system
·Hydraulic system

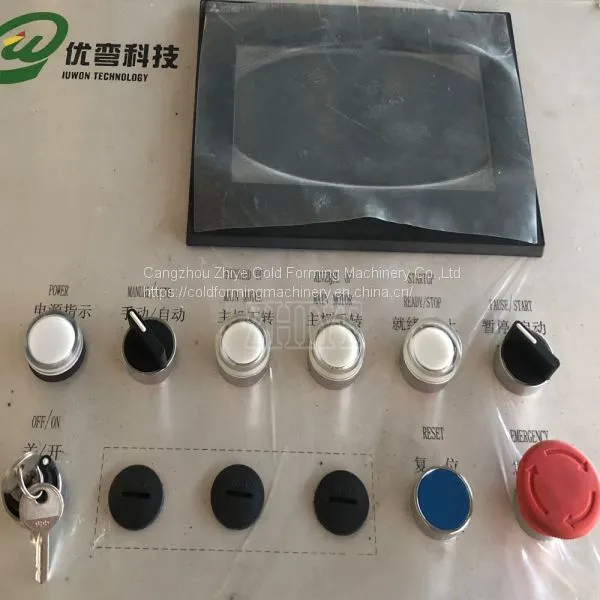

·Computer control system (imported computer)
·Productivity: 10-18m/min, 3500m² /8hs
·Suitable process material: colored steel sheet, aluminium steel sheet, and galvanized steel sheet
D.double layer corrugated IBR roof sheet making machine Optional equipment:
·Manual uncoiler frame in different tons
·Hydraulic automatic uncoiler

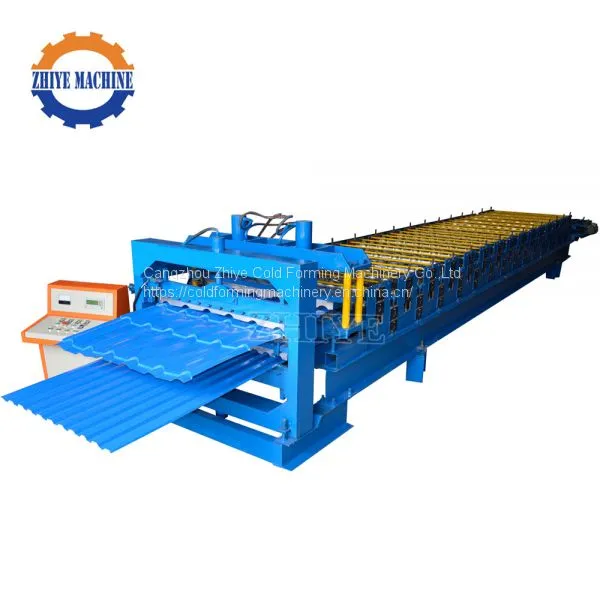

This Comprehensive Steel Frame Double layer roll forming machine is perfectly combined two different-model machines together, this can save the space and also is easy to operate. The two models are chose according to customers" need.

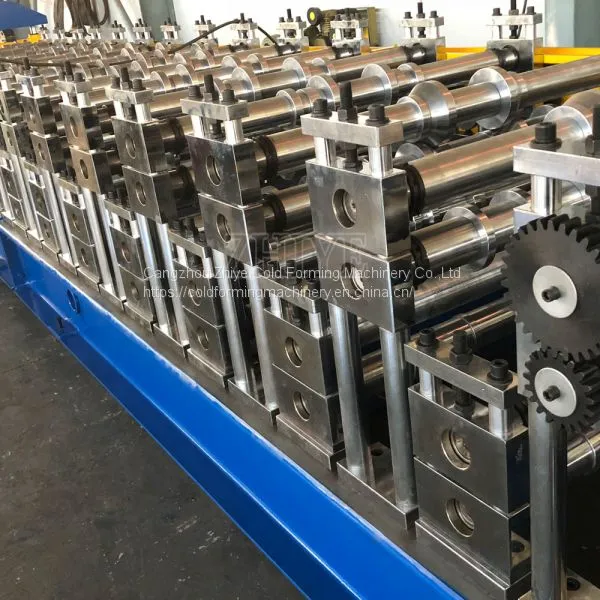

It consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, high precision counter and so on.
