Roof Color Steel Tile Roll Forming Machine With Hydraulic Pressing For Metal Roof Tile

Delivery Time:55-65 working days
Certification:CE

Roof Color Steel Tile Roll Forming Machine With Hydraulic Pressing For Metal Roof Tile

  Reference Specifications of Tile Roll Forming Machine

Material thickness: 0.3-0.7mm,Color Steel, Galvanised coil Material width: depend on customer’s requirement Decoiler Type: manual or automatical type ( depend on customer’s requirement ) Weight Capacity Of Decoiler: 5 Ton Main Motor Power: 5.5 Kw Hydraulic Motor Power: 11 Kw Forming Station: 22 ( depend on profile drawing ) Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface. Main Axis Material: High grade 45#, quenched and heat treatment. Axis Diameter: ¢ 75mm Working Speed: 0-15 m/min Transporting Type: Chain Transmission Heat Treatment of Cutting Blade: HRC 50-60 Type of Cutting: Hydraulic cutting Material Of Cutting Blade: C r 12 Heat Treatment of Cutting Blade: HRC 50-60 Machine Frame stand: Welded structural steel Thickmess of Fame Steel: 18mm Electrical Control: PLC Frequency Control System with touch screen PLC: PANASONIC Brand Encoder: OMRON Brand Transducer: PANASONIC Brand Machine Weight: about 8.5 Ton

  Main Components

Decoiler --------------------------------------------- 1 Unit Film covering device --------------------------------- 1 Unit Feeding guide --------------------------------------- 1 Unit Main roll forming machine --------------------------- 1 Unit Hydraulic pressing device --------------------------- 1 Unit Hydraulic cutting device ----------------------------- 1 Unit Hydraulic Station ------------------------------------ 1 Unit PLC computer control ------------------------------- 1 Unit Output table ---------------------------------------- 1 Unit

  Reference Drawings

  Working Flow

Decoiler --- Fedding Guide --- Film Covering --- Roll Forming --- Pressing --- Cut-to-length --- Run out table

  Application

Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding

  Our Advantage

High Quality Reasonable Price Good after Service 1 Year Warranty More Than 10 Years Experience

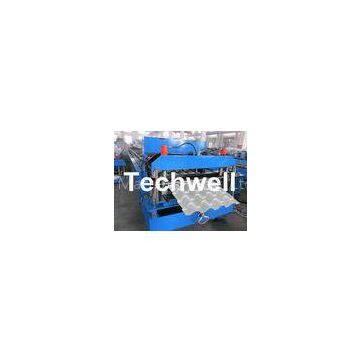

  Machine Pictures

  Factory Pictures
