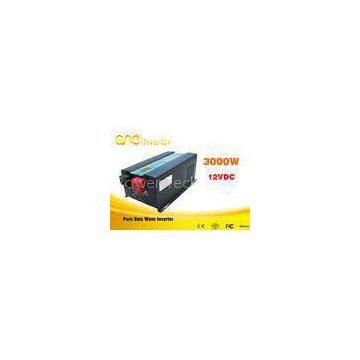

One Inverter Single Phase Pure Sine Wave UPS Solar Inverter Dc To Ac Off Grid 3kw

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ONE		Place of Origin	China
Model Number	FI-30212

Product Description

Delivery Time:10 working days after received your payment
Certification:CE/ROHS/FCC/SGS

One inverter single phase pure sine wave 12v 220v dc to ac off grid solar inverter 3kw

FI-30212

Function:

Adjustable charging current: End users can adjust AC charging current according to their own needs.

Optional battery mode: Different working mode for different battery type, which makes our converter work under best situation.

Adjustable mains priority and converter priority mode:

Mains priority: When AC mains and DC battery are connected at the same time, converter chooses AC mains for priority AC output.

Model

FI-102

FI-152

FI-202

FI-302

FI-402

FI-502

FI-602

Rated Power

1KW

1.5KW

2KW

3KW

4KW

5KW

6KW

Peak Power

3KW

4.5KW

6KW

9KW

12KW

15KW

18KW

Nominal battery voltage

12/24VDC

12/24/48VDC

24VDC/48VDC

Input

DC input range

10.5-15VDC (12V) / 21-30VDC (24V) / 42-60VDC (48V)

AC Mains input range

170-275VAC (220/230/240VAC)±4%

AC input frequency

50Hz: 45-65Hz / 60Hz: 55-65Hz±0.5Hz (50Hz/60Hz automatic recognition)

Protection

Low battery alarm

≤10.5VDC (12V) / ≤21VDC (24V) / ≤42VDC (48V) alarm

Low battery protection

≤10VDC (12V) / ≤20VDC (24V) / ≤40VDC (48V) automatic shutdown

High battery alarm

≥15VDC (12V) / ≥30VDC (24V) / ≥60VDC (48V) alarm

High battery protection

≥17VDC (12V) / ≥34VDC (24V) / ≥68VDC (48V) automatic shutdown

Over load protection

110%<loading<150%, shutdown after 60s alarm, loading>150%, shutdown after 20s alarm

High temperature

Built-in temperature real time sensor, ≥85℃ alarm, ≥90℃ automatic shutdown

Short circuit protection

Automatic shutdown

Output

Transfer efficiency

≥90%

Output voltage

(DC battery mode) 220/230/240VAC±2%

Output frequency

123

Output wave form

Pure sine wave

Output voltage

(AC mains mode) stable 220/230/240VAC±10% output (built-in AVR stablizer)

AVR output stablizer

AC mains<170VAC±5% swtich to DC battery mode, AC mains>180VAC ±5% return to AC mains mode;

AC mains>275VAC±5% swtich to DC battery mode, AC mains<255VAC ±5% return to AC mains mode;

The above is for output 220V system reference, 230V/240V output just multiply by percentage

Output frequency

(AC mains mode) automatic tracing from AC input

Other

Transfer time

≤5ms

Display

LCD Display with function buttons

Cooling system

Intelligent cooling fan control system

≤42℃ slow fan, ≥45℃ fast fan

AC Charger

7 battery types mode

Gel U.S.A. / Gel European / A.G.M.1 / A.G.M.2 / Sealed lead acid / Open lead acid / Calcium(open) /

Deep sulphation cycle 15.5 for 4 hrs

AC charging Voltage

13.6-14.2VDC(12V)/27.2-28.4VDC(24V)/54.4-56.8VDC(48V)

AC charging current

0-35A: 5A / 10A / 20A / 25A / 30A / 35A, 6 stages adjustable option

3 Stages charging

Boost charging, direct charging, float charging

AC over charge protection

Battery voltage ≧16VDC (12V) ≧32VDC (24V) ≧64VDC (48V), stop charging after 60s alarm

Working mode
(Optional)

AC mains priority

Always use AC mains as priority input to provide AC output and automatically charge the battery, only

stops charging when battery is fully charged
