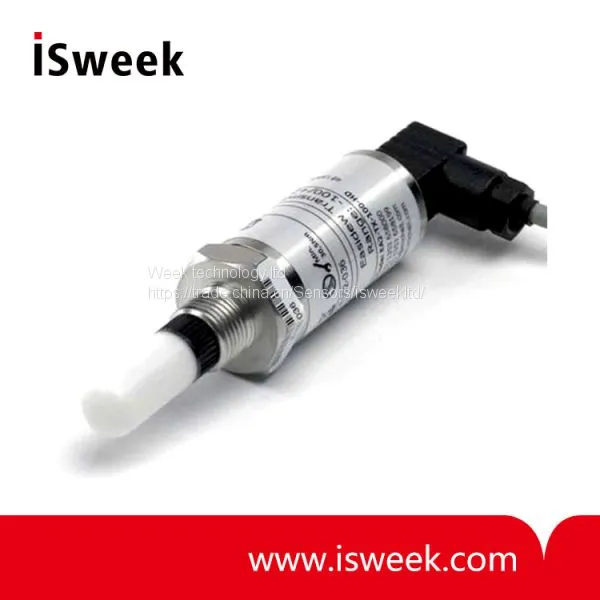

VPA.8000.1003 Dew Point Sensor Product Description
VPInstruments’ dew point transmitters are designed for ease of use, incorporating all the features needed to make installation and operation as simple as possible. The calibrated transmitters can be instantly incorporated into VPVision or they can be connected to your air or gas management and control system.
Maintaining the dew point of your air or gas system will prolong the life of your equipment. Permanent monitoring enables you to detect and prevent problems in time.
VPA.8000.1003 Dew Point Sensor Features and benefits
2-wire loop powered connection
Dew point or ppm moisture content
IP66 (NEMA 4X)
Excellent sensor protection
Fast response time
VPA.8000.1003 Dew Point Sensor Application
Extreme dry air
VPA.8000.1003 Dew Point Sensor Specifications
|
Performance | |
| Measurement range |
-100 ... +20°C | -148 ... 68 °F dew point |
| Accuracy (dew point) |
±2°C | ±3.6 °F dew point |
| Response time |
5 mins to T95 (dry to wet) |
|
Electrical output/input | |
| Output signa |
4 ... 20 mA (2-wire) current source, configurable over the entire range |
| Supply voltage |
12-28VDC |
| Current consumption |
20mA max |
| Supply voltage influence |
±0.005% RH/V |
|
operating conditions | |
| Operating humidity |
0 ... 100% RH |
| Operating temperature |
-40 ... +60°C | -40 ... 140 °F |
| Operating pressure |
450 barg max. |
| Temperature coefficient |
Temperature compensated across operating temperature range |
|
Mechanical specifications | |
| Ingress protection |
IP65 | NEMA 4 |
| Housing material |
Stainless steel |
| Dimensions |
L=132mm x ø27mm | 5,2 x 1,1" |
| Filter |
HDPE Guard |
| Process connection |
5/8" - 18 UNF |
| Connection |
DIN connector |
