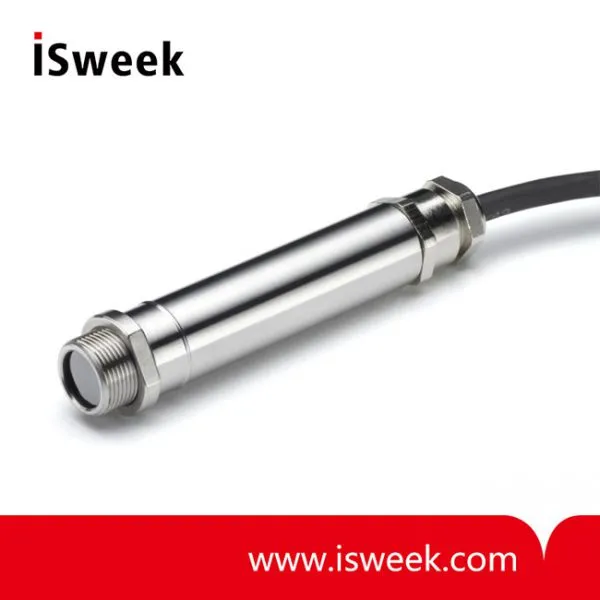

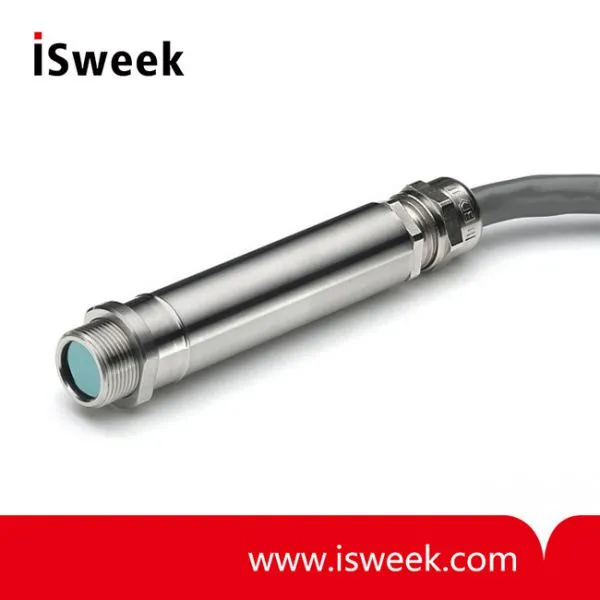

PyroCouple, PyroEpsilon, PyroBus, PyroCAN
General Purpose Infrared Temperature Sensors
General Purpose Infrared Temperature Sensors Features
• Temperature range: -20°C to 500°C
• Choice of precision optics for large or small targets at short or long distances
• Fast response with high stability
• Stainless steel housing, sealed to IP65
• Quick and easy installation
• Wide range of accessories
General Purpose Infrared Temperature Sensors Description
The Calex Compact Series is a range of high quality, low cost non-contact sensors that measure the temperature of inaccessible or moving objects and materials. They measure temperatures from -20°C to 500°C, accurately and consistently, with an outstanding response time of 240 ms. All models conform to industrial EMC standards.
The PyroCouple is a simple infrared temperature sensor with a choice of analogue outputs. No complicated setup is required - just connect a temperature indicator and power supply, and instantly start taking measurements.
• Temperature ranges from -20°C to 500°C
• Suitable for non-contact temperature measurement on most non-reflective non-metal surfaces, such as paper, thick plastics, asphalt, painted surfaces, food, rubber and organic materials, among many others.
• Choice of analogue outputs for measured temperature:
Two-wire 4-20 mA,
Four-wire 0-50 mV,
Four-wire Type K, J or T thermocouple
• Additional sensor body temperature output on four-wire models: indicates the air temperature around the sensor and helps prevent overheating or overcooling
The PyroEpsilon is a simple sensor with an adjustable emissivity setting. It is ideal if the target is partially reflective.
• Temperature ranges from -20°C to 500°C
• Two-wire 4-20 mA output
• Emissivity adjustment via a separate two-wire 4-20 mA input
• Adjust the emissivity continuously during the process using a variable 4-20 mA source
• Set the emissivity manually with the PyroTune emissivity adjuster
• If you are not sure the emissivity of the target is high, choose the PyroEpsilon instead of the PyroCouple.
The PyroBus is a networkable, fully configurable sensor with RS485 Modbus RTU communications.
• Temperature ranges from -20°C to 500°C
• Up to 247 sensors may be connected to a single network.
• Adjustable emissivity setting for use on a wide range of materials
• Averaging function to smooth the temperature output
• Peak and valley hold processing for measuring individual objects on a conveyor
• Reflected energy compensation for accurately measuring the temperature of objects in ovens or chillers, from outside

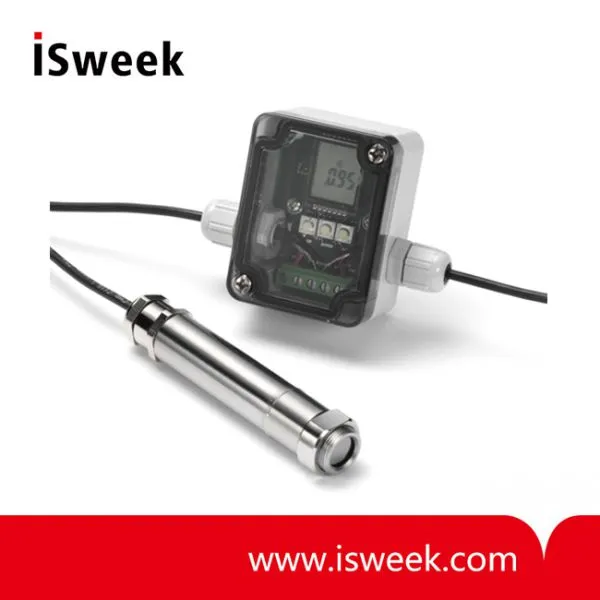

• Optional 6-channel touch screen terminal for local display, configuration and data logging
• Connect sensors and 6-channel terminals directly to an existing RS485 Modbus system
The PyroCAN is a sensor with CAN communications.
• Temperature range: -20°C to 1000°C
• Raw CAN communications
• Adjustable emissivity setting for measuring a variety of materials
• Ideal for onboard vehicle temperature monitoring, and many other applications
• Conforms with EMC standard EN 13309:2010
General Purpose Infrared Temperature Sensors GENERAL SPECIFICATIONS
| PyroCouple |
PyroEpsilon |
PyroBus |
PyroCAN |
|
| Output |
See Above |
Two-wire 4-20 mA |
RS485 Modbus RTU |
Raw CAN |
| Temperature Range |
LT = -20 to +100 °C
MT = 0 to 250 °C
HT = 0 to 500 °C
|
-20 to 500°C |
-20°C to 1000°C |
|
| Accuracy |
±1% of reading or ±1°C whichever is greater |
|||
| Repeatability |
± 0.5% of reading or ± 0.5°C whichever is greater |
|||
| Emissivity Setting |
Fixed at 0.95 |
Variable 0.2 to 1.0 via
continuous 4-20 mA input
|
Adjustable 0.2 to 1.0 via
RS485 Modbu |
Adjustable 0.2 to 1.0 via CAN |
| Response Time |
240 ms (90% response) |
200 ms (90% response) |
||
| Spectral Range |
8 to 14 μm |
|||
| Supply Voltage |
24 V DC (28 V DC max.) |
12 V DC (13 V DC max.) |
24 V DC (28 V DC max) |
|
| Min. Sensor Voltage |
6 V DC |
12 V DC |
||
| Max. Loop Impedance |
900 Ω ( 4-20 mA output) |
- |
||
| Output Impedance |
56 Ω (voltage/
thermocouple output |
- |
||
| Input Impedance |
- | 50 Ω |
- |
|
| Current Draw |
20 mA max. (PyroCouple -5 models:
3.2 mA @ 24 V DC |
- |
||
| Baud Rate |
- |
9600 bps |
250 kbps |
|
| Format |
- |
8 data bits, no parity,
1 stop bi
|
- | |
General Purpose Infrared Temperature Sensors MODEL NUMBERS
Example Model Numbers: PC151MT-0, PE151MT, PB151, PCAN201
